Schneider Electric

ZB5AD2806C0

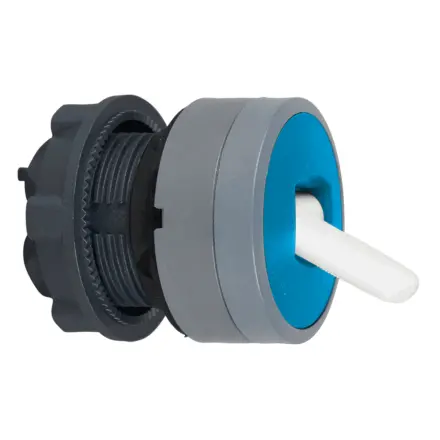

ZB5AD2806C0 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for ZB5AD2806C0 Schneider Electric

ZB5AD2806C0 Schneider Electric - Harmony XB5, Toggle switch head, plastic, blue, Ã22, 2 positions, stay put, grey bezel

Extended Description for ZB5AD2806C0 Schneider Electric

ZB5AD2806C0 Schneider Electric - This switch head provides an ergonomic interface for controlling your machines.,It is supplied with toggle switch with lever and can easily be installed on compatible selector switch units.,It provides an effective manner to switch between the two conditions in various operating modes and numerous applications.,It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£9.99 Exc. VAT
£11.99 Inc. VAT

Main

range of product Harmony XB5
product or component type Head for selector switch
Device short name ZB5
Bezel material Plastic colour plated grey
Mounting diameter 22 mm
Sale per indivisible quantity 1
Head type Standard
Shape of signaling unit head Round
Type of operator stay put
Operator profile Black toggle switch
Operator additional information Blue lever
Operator position information 2 positions 90°

Complementary

CAD overall width 29 mm
CAD overall height 29 mm
CAD overall depth 45 mm
net weight 0.023 kg
Mechanical durability 500000 cycles
Station name XALD 1...5 cut-outs,XALK 2...5 cut-outs
Electrical composition code C11 for <3 contacts using single blocks in front mounting,C12 for <6 contacts using single blocks in front mounting,C15 for <1 contacts using single blocks in front mounting,SF1 for <3 contacts using single blocks in front mounting,SR1 for <3 contacts using single blocks in rear mounting,C13 for <6 contacts using single and double blocks in front mounting
Device presentation Basic element

Environment

Protective treatment TH
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -40…70 °C
Overvoltage category Class II conforming to IEC 60536
IP degree of protection IP66 conforming to IEC 60529
NEMA degree of protection NEMA 13,NEMA 4X
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IK degree of protection IK06
Standards UL 508,IEC 60947-5-4,JIS C8201-5-1,IEC 60947-1,IEC 60947-5-1,CSA C22.2 No 14,JIS C8201-1
Product certifications DNV,UL listed,LROS (Lloyds register of shipping),BV,CSA
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27,50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.2 cm
Package 1 Width 3.3 cm
Package 1 Length 5.2 cm
Package 1 Weight 23.0 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue
