Schneider Electric

ZB5CV033

ZB5CV033 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for ZB5CV033 Schneider Electric

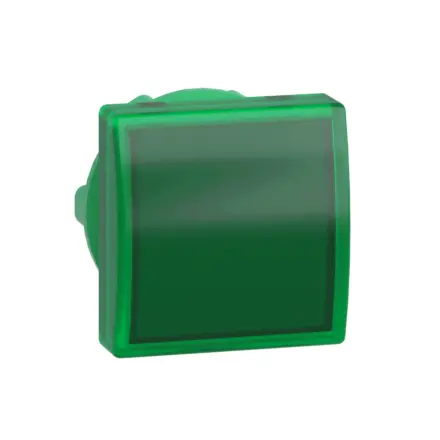

ZB5CV033 Schneider Electric - Head for pilot light, Harmony XB5, square green, 22mm, with plain lens, universal LED

Extended Description for ZB5CV033 Schneider Electric

ZB5CV033 Schneider Electric - This green plain lens head for universal LED pilot light is designed to last without maintenance.,It offers a bright indicator of process and machine operations.,It is clearly distinguishable visually at a distance thanks to a clear color of len.,It enables complex machine statuses to be read at a glance.,It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66.,It makes it ideal for operation in harsh environments.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£3.25 Exc. VAT
£3.90 Inc. VAT

Offer Sustainability

Mercury Free Yes
Toxic Heavy Metal Free Yes
Environmental Disclosure ENVPEP1710010EN
Rohs Exemption Information Yes
China Rohs Regulation X
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Sustainable Offer Status Green Premium product
Reach Free Of Svhc Yes
Reach Regulation Free of Substances of Very High Concern above the threshold
Circularity Profile ENVEOLI1710010EN

Important Information

Important Message A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Specifications

Device Short Name ZB5
Range Of Product Harmony XB5
Product Or Component Type head for pilot light
Operator Additional Information with plain lens
Mounting Diameter 22 mm
Head Type standard
Cap/Operator Or Lens Colour green
Sale Per Indivisible Quantity 1
Shape Of Signaling Unit Head square
Product Compatibility universal LED
Bezel Material dark grey plastic

Complementary

Electrical Composition Code P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED || PR1 rear mounting integral LED
Cad Overall Height 30 mm
Cad Overall Depth 29 mm
Cad Overall Width 30 mm
Device Presentation basic element
Station Name XALD 1...5 cut-outs || XALK 2...5 cut-outs
Net Weight 0.02 kg

Environment

Nema Degree Of Protection NEMA 13 || NEMA 4X
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage -40-70 °C
Ik Degree Of Protection IK05 IEC 50102
Standards UL 508 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
Ambient Air Temperature For Operation -25-70 °C
Protective Treatment TH
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection IP66 IEC 60529
Overvoltage Category class II IEC 60536
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m

Contractual warranty

Warranty 18 months
