Schneider Electric

ZBY9W2M130

ZBY9W2M130 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for ZBY9W2M130 Schneider Electric

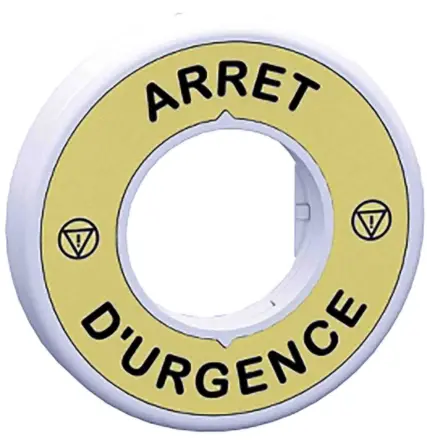

ZBY9W2M130 Schneider Electric - Harmony, Illuminated ring Ã60, plastic, yellow, red fixed integral LED, marked ARRET D'URGENCE, 230...240 V AC

Extended Description for ZBY9W2M130 Schneider Electric

ZBY9W2M130 Schneider Electric - This circular legend provides clear labelling of your emergency stop devices.,It is supplied ready engraved with a marking relevant to machine operation and is compatible with any standard 60mm Harmony emergency stop or switching off unit.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£13.37 Exc. VAT
£16.04 Inc. VAT

Main

range of product Harmony
product or component type Illuminated marked legend ring
Sale per indivisible quantity 1
Shape of signaling unit head Round
cap/operator or lens colour Red
Operator additional information With illuminated ring
Light source Protected LED
Bulb base Integral LED
Light source colour Red
[Us] rated supply voltage 230...240 V AC at 50/60 Hz
Device presentation Intermediate ring

Complementary

Accessory / separate part destination Emergency stop mushroom head push-button
Material Plastic
Marking Black ARRET D'URGENCE on yellow background
Label dimensions Ø 60 mm
User language French
Height 60 mm
Width 9.3 mm
net weight 0.016 kg
Electrical insulation class Class II conforming to IEC 61140
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Signalling type Steady
Supply voltage limits 195…264 V AC
current consumption 14 mA
Service life 100000 h at rated voltage and 25 °C
Surge withstand 1 kV conforming to IEC 61000-4-5
compatibility code XB4,XB5

Environment

Protective treatment TH
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -40…70 °C
IP degree of protection IP66 conforming to IEC 60529,IP67 conforming to IEC 60529,IP69 conforming to IEC 60529,IP69K conforming to ISO 20653,Type 13 conforming to UL 50E,Type 12 conforming to UL 50E,Type 4 conforming to UL 50E,Type 4X conforming to UL 50E
IK degree of protection IK05 conforming to IEC 62262
Standards CSA C22.2 No 14,IEC 60947-5-1,IEC 60947-5-4,UL 508,IEC 60947-1,JIS C8201-5-1,JIS C8201-1
Product certifications UL listed,CSA
Vibration resistance 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6,25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27,50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27,25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Resistance to electrostatic discharge 4 kV on contact (on metal parts) conforming to IEC 61000-4-2,8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
Electromagnetic emission Class B conforming to IEC 55011

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2 cm
Package 1 Width 6 cm
Package 1 Length 6 cm
Package 1 Weight 21 g
Unit Type of Package 2 P06
Number of Units in Package 2 2880
Package 2 Height 105 cm
Package 2 Width 80 cm
Package 2 Length 60 cm
Package 2 Weight 68.98 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
