Siemens

1FK2104-5AK10-1DA0

1FK2104-5AK10-1DA0 Siemens

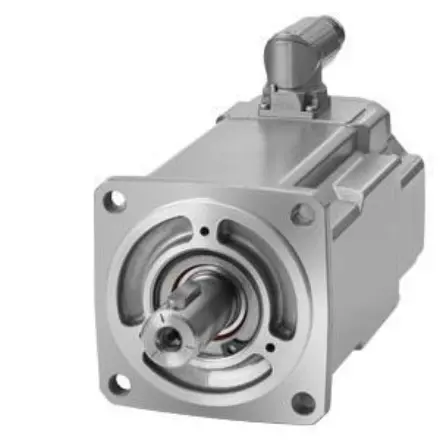

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 1FK2104-5AK10-1DA0 Siemens

1FK2104-5AK10-1DA0 Siemens - SIMOTICS S-1FK2 HD Servo motor M0=2.4 Nm; PN = 0.75 kW at nN=3000 rpm; Converter at max. 480 V supply system; with holding brake; Degree of protection IP64; Shaft D19x40 mm with feather key; Absolute encoder 20-bit + 12-bit multi-turn (encoder AM20DQC) with OCC interface; Connector size M17, rotatable;

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 1FK2104-5AK10-1DA0
Product Description SIMOTICS S-1FK2 HD Servo motor M0=2.4 Nm; PN = 0.75 kW at nN=3000 rpm; Converter at max. 480 V supply system; with holding brake; Degree of protection IP64; Shaft D19x40 mm with feather key; Absolute encoder 20-bit + 12-bit multi-turn (encoder AM20DQC) with OCC interface; Connector size M17, rotatable;
Product family Not available
Product Lifecycle (PLM) PM500:Discontinued Product or end of PLM & Support
PLM Effective Date End of product lifecycle since: 01.10.2021
Notes Product is no longer available. Successor: 1FK2104-5AK10-1MA0 Compare Products

Successor information

Successor 1FK2104-5AK10-1MA0
Successor Description SIMOTICS S-1FK2 HD servo motor M0=2.4 Nm; PN = 1.07 kW at nN=6000 rpm (380-480 V); PN = 0.75 kW at nN=3000 rpm (200-240 V); with holding brake; degree of protection IP64; shaft D19x40 mm with feather key; absolute encoder 22-bit + 12-bit multiturn (encoder AM22DQC); with OCC interface; plug size M17, rotatable;

Delivery information

Export Control Regulations ECCN : N / AL : N
Estimated dispatch time (Working Days) 25 Day/Days
Net Weight (kg) 3,700 Kg
Packaging Dimension 250,00 x 452,00 x 267,00
Package size unit of measure MM
Quantity Unit 0 Piece
Packaging Quantity 1

Additional Product Information

EAN 4042948678237
UPC 804766685460
Commodity Code 85015100
LKZ_FDB/ CatalogID D32
Product Group 9021
Group Code R220
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 20.12.2018
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information Information according REACh Article 33(1) on svhc candidate substances (substances of very high concern http://echa.europa.eu/web/guest/candidate-list-table) for configured products will be provided with the order confirmation and bill of delivery. Information is available only if a duty to inform for the configured product applies.
SCIP number

Basic motor data

Motor type High Dynamic
Motor type High Dynamic
Static torque 2.40 Nm
Static current 4.4 A
Maximum torque 7.60 Nm
Maximum current 16.0 A
Maximum speed 7,100 rpm
Rotor moment of inertia 0.6500 kgcm²
Weight 3.7 kg

Rated data

Rated speed 3,000 rpm
Rated torque 2.40 Nm
Rated current 4.4 A
Rated power 0.75 kW

Encoder system

Encoder system Encoder AM20DQC: Absolute encoder 20 bit + 12 bit multiturn

Motor connection

Connection type OCC for S210
Connector size M17

Mechanical data

Design acc. to Code I IM B5 (IM V1, IM V3)
Vibration severity grade Grade A
Shaft height 40
Flange size (AB) 80 mm
Centering ring (N) 70 mm
Hole circle (M) 90 mm
Screw-on hole (S) 6.5 mm
Overall length (LB) 176 mm
Diameter of shaft (D) 19 mm
Length of shaft (E) 40 mm
Length of flange diagonal (P) 105 mm
Shaft end Fitted key
Color of the housing Standard (Anthracite, similar to RAL 7016) Holding brake Holding torque 3.30 Nm Average dynamic torque 3.30 Nm Opening time 50 ms Closing time 40 ms Maximum single switching energy 1)270 J Service life, operating energy 120,000 J Holding current2)0.2 A Break-induced current for 500 ms2)1.2 A 1)Up to three consecutive emergency stops and up to 25% of all emergency stops as a Wmax high energy stop possible. 2)Typcial value for 20°C ambient temperature. At -15°C the break-induced currents can be increased by up to 30%.
