Siemens

1FT7086-1AF71-1BG1

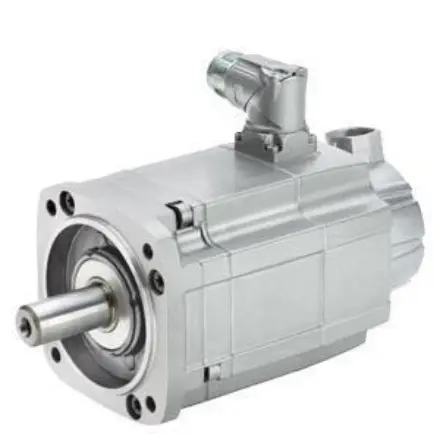

1FT7086-1AF71-1BG1 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 1FT7086-1AF71-1BG1 Siemens

1FT7086-1AF71-1BG1 Siemens - SIMOTICS S Synchronous motor 1FT7, M0=28Nm (100K) NN=3000rpm, PN=5.65kW naturally cooled; Power connector rotatable; Vibration severity A Degree of protection IP65 Frame size IMB 5 (IM V1, IM V3) Conventional flange (1FT6/1FK7 compatible) ABSOLUTE VALUE ENCODER SINGLETURN 24 BIT WITH DRIVE-CLIQ INTERFACE (ENCODER AS24DQI) PLAIN SHAFT, W/O HOLDING BRAKE; ACCURACY TOLERANCE N

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 1FT7086-1AF71-1BG1
Product Description SIMOTICS S Synchronous motor 1FT7, M0=28Nm (100K) NN=3000rpm, PN=5.65kW naturally cooled; Power connector rotatable; Vibration severity A Degree of protection IP65 Frame size IMB 5 (IM V1, IM V3) Conventional flange (1FT6/1FK7 compatible) ABSOLUTE VALUE ENCODER SINGLETURN 24 BIT WITH DRIVE-CLIQ INTERFACE (ENCODER AS24DQI) PLAIN SHAFT, W/O HOLDING BRAKE; ACCURACY TOLERANCE N
Product family 1FT7 servomotors for SINAMICS S120
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations ECCN : N / AL : N
Estimated dispatch time (Working Days) 15 Day/Days
Net Weight (kg) 27,500 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN Not available
UPC 887621003241
Commodity Code 85015220
LKZ_FDB/ CatalogID SD.NC61KT-1FT7
Product Group 9693
Group Code R220
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 01.03.2018
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information Information according REACh Article 33(1) on svhc candidate substances (substances of very high concern http://echa.europa.eu/web/guest/candidate-list-table) for configured products will be provided with the order confirmation and bill of delivery. Information is available only if a duty to inform for the configured product applies.
SCIP number

Mechanical data

Design acc. to Code I IM B5 (compatible with 1FT6) Temperature monitoring Pt1000 temperature sensor
Vibration severity grade Grade A Degree of protection IP65
Shaft height 80 Cooling Natural cooling Radial runout tolerance 0.050 mm Concentricity tolerance 0.100 mm Axial runout tolerance 0.100 mm
Shaft end type Plain shaft Sensor designEncoder AS24DQI: Absolut encoder Singleturn 24 bit - with signal connection RJ45 Electrical connection Connector turnable Connector size 1.5Optimum operating point Optimum speed 3,000 rpm Optimum power 5.7 kW Limiting data Max. permissible speed (mech.) 8,000 rpm Max. permissible speed (inverter) 5,100 rpm Maximum torque 120.0 Nm Maximum current 78.00 A Recommended Motor Module Rated inverter current 18.00 A Maximum inverter current 36.00 A
Color of the housing Standard (pearl dark gray similar to RAL 9023)
