Siemens

1FW3285-2AG74-5DY2-Z S32

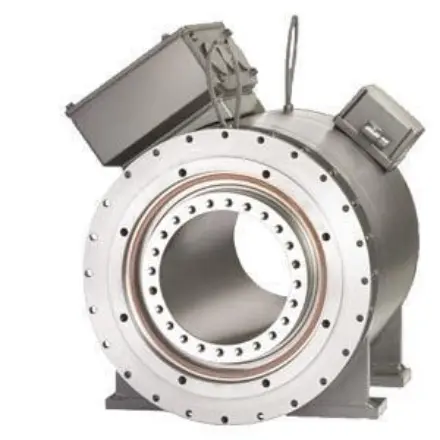

1FW3285-2AG74-5DY2-Z S32 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 1FW3285-2AG74-5DY2-Z S32 Siemens

1FW3285-2AG74-5DY2-Z S32 Siemens - SIMOTICS T Complete torque motor 1FW3 270rpm, 138.5kW, 4900Nm, 241A 437V; Water cooling; incl. regreasing system (opt. K40) Incremental encoder sin/cos 1 VPP 2048 S/R with C and D track (encoder IC2048S/R) Encoder mounting via belt; IMB 35 Terminal box transverse right on the top; Water connection on the left Design as extruder motor with screw intake and integrated thrust bearing S32: max. axial force in KN: 200 Screw diameter in mm: 60; Screw intake: N 55x 3x 30 X17x 9H DIN5480 utilizable length 87mm; Cylinder fl. (centr.): 60 Axial bearing type FAG: 29428E

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 1FW3285-2AG74-5DY2-Z S32
Product Description SIMOTICS T Complete torque motor 1FW3 270rpm, 138.5kW, 4900Nm, 241A 437V; Water cooling; incl. regreasing system (opt. K40) Incremental encoder sin/cos 1 VPP 2048 S/R with C and D track (encoder IC2048S/R) Encoder mounting via belt; IMB 35 Terminal box transverse right on the top; Water connection on the left Design as extruder motor with screw intake and integrated thrust bearing S32: max. axial force in KN: 200 Screw diameter in mm: 60; Screw intake: N 55x 3x 30 X17x 9H DIN5480 utilizable length 87mm; Cylinder fl. (centr.): 60 Axial bearing type FAG: 29428E
Product family Ordering Data Overview
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 30 Day/Days
Net Weight (kg) 1047,000 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN Not available
UPC Not available
Commodity Code 85015381
LKZ_FDB/ CatalogID PM21
Product Group 9642
Group Code R220
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 21.07.2019
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information Information according REACh Article 33(1) on svhc candidate substances (substances of very high concern http://echa.europa.eu/web/guest/candidate-list-table) for configured products will be provided with the order confirmation and bill of delivery. Information is available only if a duty to inform for the configured product applies.
SCIP number
