Siemens

3NJ6333-3AB00-0AA0

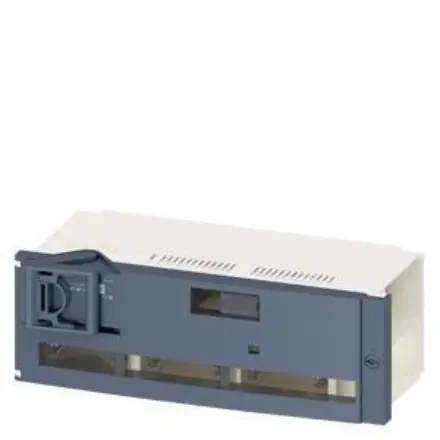

3NJ6333-3AB00-0AA0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 3NJ6333-3AB00-0AA0 Siemens

3NJ6333-3AB00-0AA0 Siemens - Switch connector with fuses In-line design, pluggable NH3 630 A, 3-pole AC23A 500V , 120 (AC500V) kA manual operating Fuse monitoring EFM 10 without auxiliary switch without current transformer without ammeter

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 3NJ6333-3AB00-0AA0
Product Description Switch connector with fuses In-line design, pluggable NH3 630 A, 3-pole AC23A 500V , 120 (AC500V) kA manual operating Fuse monitoring EFM 10 without auxiliary switch without current transformer without ammeter
Product family SENTRON 3NJ63 Switch Disconnectors with Fuses
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations ECCN : N / AL : N
Estimated dispatch time (Working Days) 30 Day/Days
Net Weight (kg) 15,620 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN Not available
UPC Not available
Commodity Code 85365080
LKZ_FDB/ CatalogID LV10
Product Group 5862
Group Code P360
Country of origin Bulgaria
Compliance with the substance restrictions according to RoHS directive Since: 27.09.2019
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Model

Product Brand Name Sentron
Product Designation Switch Disconnector With Fuses 3Nj63
Design Of The Product With Double-Break
Type Of Ammeter Without
Design Of The Safety Monitoring Efm 10
Type Of The Driving Mechanism Manual Operating Mechanism

General Technical Data

Size Of Fuse Link 3
Let-Through I2T Value / At Ac-22 B / At 400 V / Maximum
Permissible4 840 000 A²·S
Let-Through I2T Value / At Ac-22 B / At 500 V / Maximum
Permissible4 840 000 A²·S
Fuse System Lv Hrc Fuse

Voltage

Operating Voltage (Ue) / Rated Value / Maximum 690 V

Dissipation

Power Loss [W] / Maximum 215 W

Main Circuit

Operation Al Current / Rated Value / Maximum 630 A
Suitability
Suitability For Use System Protection
Short Circuit
Conditional Short-Circuit Current (Iq)
At 500 V / Rated Value 120 Ka
At 690 V / Rated Value 100 Ka
At 800 V / Rated Value 100 Ka
At Ac-23 A / At 500 V / Rated Value 120 Ka
At Ac-23 A / At 690 V / Rated Value 100 Ka

Connections

Arrangement Of Electrical Connectors / For Main Current Circuit Stud Bolt Connection, 2Xm12

Mechanical Design

Height 198 Mm
Width 590 Mm
Depth 308 Mm
Mounting Position Horizontal / Vertical
Busbar Center-To-Center Spacing 185 Mm

Environmental Conditions

Installation Altitude / At Height Above Sea Level / Maximum 2 000 M
Ambient Temperature / During Operation
Minimum -25 °C
Maximum 70 °C
