Siemens

3RA2210-0JA03-0SB4

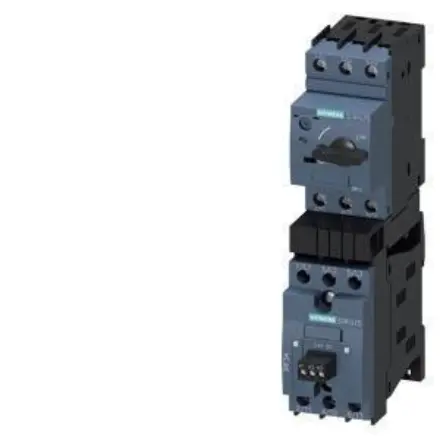

3RA2210-0JA03-0SB4 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 3RA2210-0JA03-0SB4 Siemens

3RA2210-0JA03-0SB4 Siemens - Load feeder fuseless, Reversing duty 400 V AC, Size S00 0.70...1.00 A 24 V DC screw terminal for installation on standard mounting rail Type of coordination 1, Iq = 50 kA

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 3RA2210-0JA03-0SB4
Product Description Load feeder fuseless, Reversing duty 400 V AC, Size S00 0.70...1.00 A 24 V DC screw terminal for installation on standard mounting rail Type of coordination 1, Iq = 50 kA
Product family SIRIUS 3RA2 load feeders
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 3 Day/Days
Net Weight (kg) 0,710 Kg
Packaging Dimension 52,50 x 229,00 x 153,50
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4011209901674
UPC 040892567526
Commodity Code 85364900
LKZ_FDB/ CatalogID CC-IC10
Product Group 5348
Group Code R711
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 01.10.2009
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead monoxide (lead oxide) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

General Technical Data

Size Of The Circuit-Breaker S00
Size Of Load Feeder S00
Power Loss [W] For Rated Value Of The Current
At Ac In Hot Operating State Per Pole 4.7 W
Without Load Current Share Typical 0.4 W
Insulation Voltage With Degree Of Pollution 3 At Ac Rated Value 690 V
Surge Voltage Resistance Rated Value 6 Kv
Degree Of Protection Nema Rating Other
Shock Resistance According To Iec 60068-2-27 6G / 11 Ms
Mechanical Service Life (Operating Cycles) Of Contactor Typical 30 000 000
Type Of Assignment 1
Reference Code According To Iec 81346-2 :2019 Q
Substance Prohibitance (Date) 10/01/2009
Svhc Substance Name Lead - 7439-92-1
Lead Monoxide (Lead Oxide) - 1317-36-8
Weight 0.71 Kg

Ambient Conditions

Ambient Temperature
During Operation -20 ... +60 °C
During Storage -50 ... +80 °C
During Transport -50 ... +80 °C
Temperature Compensation -20 ... +60 °C
Relative Humidity During Operation 10 ... 95 %

Main Circuit

Number Of Poles For Main Current Circuit 3
Design Of The Switching Contact Electromechanical
Adjustable Current Response Value Current Of The Current-
Dependent Overload Release0.7 ... 1 A
Operating Voltage
Rated Value 690 V
At Ac-3 Rated Value Maximum 690 V
At Ac-3E Rated Value Maximum 690 V
Operating Frequency Rated Value 50 ... 60 Hz
Operation Al Current
At Ac-3 At 400 V Rated Value 1 A
At Ac-3E At 400 V Rated Value 1 A
Operating Power
At Ac-3
— At 400 V Rated Value 250 W
At Ac-3E
— At 400 V Rated Value 250 W
Control Circuit/
Type Of Voltage Of The Control Supply Voltage Dc
Control Supply Voltage At Dc Rated Value 24 V
Holding Power Of Magnet Coil At Dc 4 W
Auxiliary Circuit
Product Extension Auxiliary Switch Yes
Protective And Monitoring Functions
Trip Class Class 10
Design Of The Overload Release Thermal (Bimetallic)
Response Value Current Of Instantaneous Short-Circuit Trip Unit 13 A
Ul/Csa Ratings
Full-Load Current (Fla) For 3-Phase Ac Motor
At 480 V Rated Value 1 A
Yielded Mechanical Performance [Hp]
For 3-Phase Ac Motor
— At 460/480 V Rated Value 0.5 Hp
— At 575/600 V Rated Value 0.5 Hp
Short-Circuit Protection
Product Function Short Circuit Protection Yes
Design Of The Short-Circuit Trip Magnetic
Conditional Short-Circuit Current (Iq)
At 400 V According To Iec 60947-4-1 Rated Value 50 000 A
Installation/ Mounting/ Dimensions
Mounting Position Vertical
Fastening Method Screw And Snap-On Mounting Onto 35 Mm Din Rail
Height 203 Mm
Width 90 Mm
Depth 114 Mm
Required Spacing
For Grounded Parts
— Forwards 32 Mm
— Backwards 0 Mm
— Upwards 50 Mm
— At The Side 10 Mm
— Downwards 10 Mm
For Live Parts
— Forwards 32 Mm
— Backwards 0 Mm
— Upwards 50 Mm
— Downwards 10 Mm
— At The Side 10 Mm

Connections/ Terminals

Type Of Electrical Connection
For Main Current Circuit Screw-Type Terminals
For Auxiliary And Control Circuit Screw-Type Terminals
Safety Related Data
Product Function Suitable For Safety Function Yes
Electrical Safety
Touch Protection On The Front According To Iec 60529 Finger-Safe, For Vertical Contact From The Front

Communication/ Protocol

Protocol Is Supported
Profinet Io Protocol No
Profisafe Protocol No
Protocol Is Supported As-Interface Protocol No
