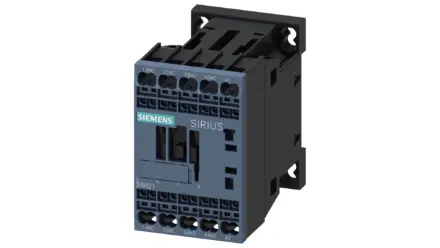

3RH2131-2EP00-1AA0 Siemens - Contactor relay, 3 NO + 1 NC, 230 V AC, 50 / 60 Hz, Size S00, Spring-type terminal with RC element plugged on upright mounting position

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 3RH2131-2EP00-1AA0
Product Description Contactor relay, 3 NO + 1 NC, 230 V AC, 50 / 60 Hz, Size S00, Spring-type terminal with RC element plugged on upright mounting position
Product family Ordering Data Overview
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 5 Day/Days
Net Weight (kg) 0,276 Kg
Packaging Dimension 52,00 x 131,00 x 76,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4047621028507
UPC Not available
Commodity Code 85364900
LKZ_FDB/ CatalogID CC-IC10
Product Group 5331
Group Code R711
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 01.10.2009
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

General Technical Data

Size Of Contactor S00
Product Extension Auxiliary Switch Yes
Power Loss [W] For Rated Value Of The Current Without Load Current
Share Typical1.43 W
Insulation Voltage With Degree Of Pollution 3 At Ac Rated Value 690 V
Degree Of Pollution 3
Surge Voltage Resistance Rated Value 6 Kv
Shock Resistance At Rectangular Impulse
At Ac 7,3G / 5 Ms, 4,7G / 10 Ms
Shock Resistance With Sine Pulse
At Ac 11,4G / 5 Ms, 7,3G / 10 Ms
Mechanical Service Life (Operating Cycles)
Of Contactor Typical 30 000 000
Of The Contactor With Added Electronically Optimized
Auxiliary Switch Block Typical5 000 000
Of The Contactor With Added Auxiliary Switch Block Typical 10 000 000
Reference Code According To Iec 81346-2 K
Substance Prohibitance (Date) 10/01/2009
Svhc Substance Name Lead - 7439-92-1
Weight 0.276 Kg

Ambient Conditions

Installation Altitude At Height Above Sea Level Maximum 2 000 M
Ambient Temperature
During Operation -25 ... +60 °C
During Storage -55 ... +80 °C
Relative Humidity Minimum 10 %
Relative Humidity At 55 °C According To Iec 60068-2-30
Maximum 95 %
Environmental Footprint
Environmental Product Declaration(Epd) Yes
Global Warming Potential [Co2 Eq] Total 49.2 Kg
Global Warming Potential [Co2 Eq] During Manufacturing 1.15 Kg
Global Warming Potential [Co2 Eq] During Operation 48.2 Kg
Global Warming Potential [Co2 Eq] After End Of Life -0.139 Kg

Main Circuit

No-Load Switching Frequency
At Ac 10 000 1/H
At Dc 10 000 1/H
Control Circuit/
Type Of Voltage Of The Control Supply Voltage Ac
Control Supply Voltage At Ac
At 50 Hz Rated Value 230 V
At 60 Hz Rated Value 230 V
Control Supply Voltage Frequency
1 Rated Value 50 Hz
2 Rated Value 60 Hz
Operating Range Factor Control Supply Voltage Rated Value Of
Magnet Coil At Ac
At 50 Hz 0.8 ... 1.1
At 60 Hz 0.85 ... 1.1
Design Of The Surge Suppressor With Rc Elements
Apparent Pick-Up Power Of Magnet Coil At Ac 37 Va
Inductive Power Factor With Closing Power Of The Coil 0.8
Apparent Holding Power Of Magnet Coil At Ac 5.7 Va
Inductive Power Factor With The Holding Power Of The Coil 0.25
Closing Delay
At Ac 8 ... 33 Ms
Opening Delay
At Ac 4 ... 15 Ms
Arcing Time 10 ... 15 Ms
Auxiliary Circuit
Number Of Nc Contacts For Auxiliary Contacts 1
Instantaneous Contact 1
Number Of No Contacts For Auxiliary Contacts 3
Instantaneous Contact 3
Identification Number And Letter For Switching Elements 31 E
Operation Al Current At Ac-12 Maximum 10 A
Operation Al Current At Ac-15
At 230 V Rated Value 10 A
At 400 V Rated Value 3 A
At 500 V Rated Value 2 A
At 690 V Rated Value 1 A
Operation Al Current At 1 Current Path At Dc-12
At 24 V Rated Value 10 A
At 110 V Rated Value 3 A
At 220 V Rated Value 1 A
At 440 V Rated Value 0.3 A
At 600 V Rated Value 0.15 A
Operation Al Current With 2 Current Paths In Series At Dc-12
At 24 V Rated Value 10 A
At 60 V Rated Value 10 A
At 110 V Rated Value 4 A
At 220 V Rated Value 2 A
At 440 V Rated Value 1.3 A
At 600 V Rated Value 0.65 A
Operation Al Current With 3 Current Paths In Series At Dc-12
At 24 V Rated Value 10 A
At 60 V Rated Value 10 A
At 110 V Rated Value 10 A
At 220 V Rated Value 3.6 A
At 440 V Rated Value 2.5 A
At 600 V Rated Value 1.8 A
Operating Frequency At Dc-12 Maximum 1 000 1/H
Operation Al Current At 1 Current Path At Dc-13
At 24 V Rated Value 10 A
At 110 V Rated Value 1 A
At 220 V Rated Value 0.3 A
At 440 V Rated Value 0.14 A
At 600 V Rated Value 0.1 A
Operation Al Current With 2 Current Paths In Series At Dc-13
At 24 V Rated Value 10 A
At 60 V Rated Value 3.5 A
At 110 V Rated Value 1.3 A
At 220 V Rated Value 0.9 A
At 440 V Rated Value 0.2 A
At 600 V Rated Value 0.1 A
Operation Al Current With 3 Current Paths In Series At Dc-13
At 24 V Rated Value 10 A
At 60 V Rated Value 4.7 A
At 110 V Rated Value 3 A
At 220 V Rated Value 1.2 A
At 440 V Rated Value 0.5 A
At 600 V Rated Value 0.26 A
Operating Frequency At Dc-13 Maximum 1 000 1/H
Contact Reliability Of Auxiliary Contacts 1 Faulty Switching Per 100 Million (17 V, 1 Ma)
Ul/Csa Ratings
Contact Rating Of Auxiliary Contacts According To Ul A600 / Q600
Short-Circuit Protection
Design Of The Miniature Circuit Breaker For Short-Circuit Protection
Of The Auxiliary Circuit Up To 230 Vc Characteristic: 6 A; 0.4 Ka
Design Of The Fuse Link For Short-Circuit Protection Of The Auxiliary
Switch Requiredfuse Gl/Gg: 10 A
Installation/ Mounting/ Dimensions
Mounting Position Standing, On Horizontal Mounting Surface
Fastening Method Screw And Snap-On Mounting Onto 35 Mm Din Rail
Height 70 Mm
Width 45 Mm
Depth 121 Mm
Required Spacing
With Side-By-Side Mounting
— Forwards 10 Mm
— Upwards 10 Mm
— Downwards 10 Mm
— At The Side 0 Mm
For Grounded Parts
— Forwards 10 Mm
— Upwards 10 Mm
— At The Side 6 Mm
— Downwards 10 Mm
For Live Parts
— Forwards 10 Mm
— Upwards 10 Mm
— Downwards 10 Mm
— At The Side 6 Mm

Connections/ Terminals

Type Of Electrical Connection For Auxiliary And Control Circuit Spring-Loaded Terminals
Type Of Connectable Conductor Cross-Sections
For Auxiliary Contacts
— Solid Or Stranded 2X (0,5 ... 4 Mm²)
— Finely Stranded With Core End Processing 2X (0.5 ... 2.5 Mm²)
— Finely Stranded Without Core End Processing 2X (0.5 ... 2.5 Mm²)
For Awg Cables For Auxiliary Contacts 2X (20 ... 12)
Safety Related Data

Product Function

Positively Driven Operation According To Iec 60947-5-1 Yes
Suitable For Safety Function Yes
Suitability For Use Safety-Related Switching Off Yes
Service Life Maximum 20 A
Proportion Of Dangerous Failures
With Low Demand Rate According To Sn 31920 40 %
With High Demand Rate According To Sn 31920 73 %
B10 Value With High Demand Rate According To Sn 31920 1 000 000; With 0.3 X Ie
Failure Rate [Fit] With Low Demand Rate According To Sn
31920100 Fit
Iso 13849
Device Type According To Iso 13849-1 3
Overdimensioning According To Iso 13849-2 Necessary Yes
Iec 61508
Safety Device Type According To Iec 61508-2 Type A
Electrical Safety
Protection Class Ip On The Front According To Iec 60529 Ip20
Touch Protection On The Front According To Iec 60529 Finger-Safe, For Vertical Contact From The Front
