Description for 3RK1301-0AB10-0AA3 Siemens

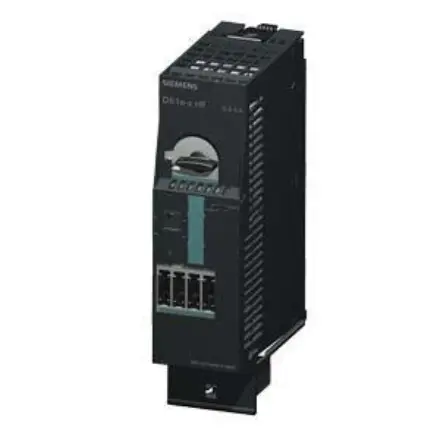

3RK1301-0AB10-0AA3 Siemens - DS1E-X for ET200S High Feature DOL starter Setting range 0.3...3 A Mechanical switching Electronic protection AC-3, up to 1.1 kW / 400 V expandable for brake control module 2DI module Motor starter ES

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 3RK1301-0AB10-0AA3
Product Description DS1E-X for ET200S High Feature DOL starter Setting range 0.3...3 A Mechanical switching Electronic protection AC-3, up to 1.1 kW / 400 V expandable for brake control module 2DI module Motor starter ES
Product family Not available
Product Lifecycle (PLM) PM490:Start of final year of support
PLM Effective Date Product discontinued since: 03.08.2012
Notes Product is no longer available Sucessor:Successor: 3RK1301-0AB10-0AB4, Observe notes on configuration If you need assistance please contact our local Siemens office

Delivery information

Export Control Regulations ECCN : EAR99 / AL : N
Estimated dispatch time (Working Days) 5 Day/Days
Net Weight (kg) 1,543 Kg
Packaging Dimension 229,00 x 333,00 x 132,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4011209575189
UPC Not available
Commodity Code 85364900
LKZ_FDB/ CatalogID CC-IC10
Product Group 4962
Group Code R711
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 26.10.2016
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

General Technical Data

Product Function On-Site Operation Yes
Insulation Voltage Rated Value 500 V
Degree Of Pollution 3 At 400 V, 2 At 500 V According To Iec60664 (Iec61131)
Surge Voltage Resistance Rated Value 6 Kv
Maximum Permissible Voltage For Protective Separation Between
Main And Auxiliary Circuit400 V
Shock Resistance 5G / 11 Ms
Vibration Resistance 2G
Operating Frequency Maximum 750 1/H
Mechanical Service Life (Operating Cycles) Of The Main Contacts
Typical100 000
Type Of Assignment 2
Reference Code According To Iec 81346-2 Q
Substance Prohibitance (Date) 10/26/2016
Weight 1.543 Kg

Product Function

Direct Start Yes
Reverse Starting No
Product Component Motor Brake Output Yes
Product Feature
Brake Control With 230 V Ac No
Brake Control With 24 V Dc No
Brake Control With 180 V Dc No
Brake Control With 500 V Dc No
Product Extension Braking Module For Brake Control Yes
Product Function Short Circuit Protection Yes
Design Of Short-Circuit Protection Circuit-Breakers
Maximum Short-Circuit Current Breaking Capacity (Icu)
At 400 V Rated Value 50 Ka

Electromagnetic Compatibility

Emc Emitted Interference According To Iec 60947-1 Cispr11, Ambience A (Industrial Sector)
Emc Immunity According To Iec 60947-1 Corresponds To Degree Of Severity 3, Ambience A (Industrial Sector)

Conducted Interference

Due To Burst According To Iec 61000-4-4 2 Kv On Voltage Supply, Inputs And Outputs
Due To Conductor-Earth Surge According To Iec 61000-4-5 2 Kv (U > 24 V Dc)
Due To Conductor-Conductor Surge According To Iec
61000-4-51 Kv (U > 24 V Dc)
Field-Based Interference According To Iec 61000-4-3 80 Mhz ... 1 Ghz 10 V/M, 1.4 Ghz ...2 Hz 3 V/M, 2 Ghz ... 2.7 Ghz 1 V/M

Safety Related Data

Proportion Of Dangerous Failures
With Low Demand Rate According To Sn 31920 50 %
With High Demand Rate According To Sn 31920 75 %
B10 Value With High Demand Rate According To Sn 31920 1 000 000
Failure Rate [Fit] With Low Demand Rate According To Sn
31920100 Fit
Iec 61508
T1 Value For Proof Test Interval Or Service Life According To Iec
6150820 A
Electrical Safety
Protection Class Ip On The Front According To Iec 60529 Ip20
Touch Protection On The Front According To Iec 60529 Finger-Safe

Main Circuit

Number Of Poles For Main Current Circuit 3
Design Of The Switching Contact Electromechanical
Adjustable Current Response Value Current Of The Current-
Dependent Overload Release0.3 ... 3 A
Type Of The Motor Protection Solid-State
Operating Voltage Rated Value 200 ... 400 V
Operating Frequency 1 Rated Value 50 Hz
Operating Frequency 2 Rated Value 60 Hz
Relative Positive Tolerance Of The Operating Frequency 10 %
Relative Negative Tolerance Of The Operating Frequency 10 %
Operating Range Relative To The Operating Voltage At Ac At 50 Hz 200 ... 440 V
Operating Power At Ac-3 At 400 V Rated Value 1.1 Kw
Operating Power For 3-Phase Motors At 400 V At 50 Hz 0.1 ... 1.1 Kw

Inputs/ Outputs

Product Function
Digital Inputs Parameterizable Yes
Digital Outputs Parameterizable No
Number Of Digital Inputs 2
Number Of Sockets
For Digital Output Signals 0
For Digital Input Signals 0

Supply Voltage

Type Of Voltage Of The Supply Voltage Dc
Supply Voltage 1 At Dc 24 ... 24 V
Supply Voltage 1 At Dc Rated Value
Minimum Permissible 20.4 V
Maximum Permissible 28.8 V
Control Circuit/
Type Of Voltage Of The Control Supply Voltage Dc
Control Supply Voltage At Dc Rated Value 20.4 ... 28.8 V
Control Supply Voltage 1 At Dc Rated Value 20.4 ... 28.8 V
Control Supply Voltage 1 At Dc 24 ... 24 V
Installation/ Mounting/ Dimensions
Mounting Position Vertical, Horizontal
Fastening Method Pluggable On Terminal Module
Height 290 Mm
Width 65 Mm
Depth 150 Mm

Ambient Conditions

Installation Altitude At Height Above Sea Level Maximum 2 000 M
Ambient Temperature
During Operation 0 ... 60 °C
During Storage -40 ... +70 °C
During Transport -40 ... +70 °C
Relative Humidity During Operation 5 ... 95 %

Communication/ Protocol

Protocol Is Supported
Profibus Dp Protocol Yes
Profinet Protocol Yes
Design Of The Interface Profinet Protocol Yes
Product Function Bus Communication Yes
Protocol Is Supported As-Interface Protocol No
Product Function
Supports Profienergy Measured Values No
Supports Profienergy Shutdown No
Address Space Memory Of Address Range
Of The Inputs 2 Byte
Of The Outputs 2 Byte
Type Of Electrical Connection
Of The Communication Interface Via Backplane Bus
For Communication Transmission Via Backplane Bus

Connections/ Terminals

Type Of Electrical Connection For Main Current Circuit Screw-Type Terminals
Type Of Electrical Connection
1 For Digital Input Signals Using Control Module
2 For Digital Input Signals Using Control Module
Type Of Electrical Connection
At The Manufacturer-Specific Device Interface Plug
For Main Energy Infeed Screw-Type Terminals
For Load-Side Outgoing Feeder Screw-Type Terminals
For Main Energy Transmission Via Energy Bus
For Supply Voltage Line-Side Via Backplane Bus
For Supply Voltage Transmission Via Backplane Bus
Ul/Csa Ratings
Operating Voltage At Ac At 60 Hz According To Csa And Ul
Rated Value600 V
