Siemens

3RK2400-1FD00-0AA2

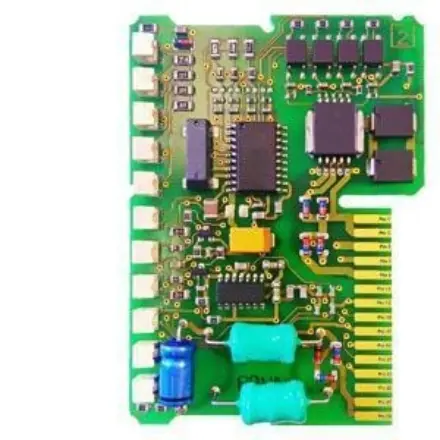

3RK2400-1FD00-0AA2 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 3RK2400-1FD00-0AA2 Siemens

3RK2400-1FD00-0AA2 Siemens - AS-Interface PCB module A/B slave, digital, IP00 4 DI/3 DQ 4 x inputs for 3-wire sensor Sensor supply from U_ASI 3 x outputs 24 V DC for 30-pole male connector socket

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 3RK2400-1FD00-0AA2
Product Description AS-Interface PCB module A/B slave, digital, IP00 4 DI/3 DQ 4 x inputs for 3-wire sensor Sensor supply from U_ASI 3 x outputs 24 V DC for 30-pole male connector socket
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
PLM Effective Date Product is cancelled since: 01.10.2018

Delivery information

Export Control Regulations ECCN : N / AL : N
Estimated dispatch time (Working Days) 5 Day/Days
Net Weight (kg) 0,040 Kg
Packaging Dimension 62,00 x 82,00 x 113,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4011209774261
UPC Not available
Commodity Code 85371098
LKZ_FDB/ CatalogID CC-IC10
Product Group 3720
Group Code R711
Country of origin Czech Republic
Compliance with the substance restrictions according to RoHS directive Since: 01.07.2006
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead monoxide (lead oxide) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

General Technical Data

Design Of The Product As-Interface Communication Modules - Special Integrated
Solutions
Design Of The Slave Type A/B Slave
Type 4 Inputs / 3 Outputs
I/O Configuration 7
Id/Id2 Code I/O
Type Of Electrical Connection Of The Inputs And Outputs Male Connector Socket
As Interface Total Current Input Max Ma 270
Total Current For All Inputs And Outputs Ma 200
Protocol Is Supported As-Interface Protocol Yes
Reference Code According To Din 40719 Extended According
To Iec 204-2 According To Iec 750A
Reference Code According To En 61346-2 K
Sensor Supply
Type Of Voltage Supply For Sensor Supply Using As-Interface
Input Voltage V 26.5 ... 31.6
Property Of The Sensor Supply Short-Circuit And Overload
Resistantyes
Inputs
Number Of Digital Inputs 4
Input Circuit Pnp
Type Of Voltage Of The Input Voltages Dc
Inputs Sensor Supply Using As-Interface
Inputs Switching Voltage V 20 ... 30
Outputs
Number Of Digital Outputs 3
Type Of Voltage Of Output Voltages Dc
Output Voltage At Dc At 24 V V 22.5 ... 24
Outputs External Power Supply 24 V Dc Using Printed-Circuit Board Contacts
Output Current At Digital Output For Signal <1> Rated Value A 0.7
Type Of Switching Output Solid State
Property Of The Output Short-Circuit Proof Yes
Outputs
Short-Ciruit Protection Built-In
Induction Protection Installed (Freewheel Diode)
Display
Display As-I: Green Fault: Red Inputs/Outputs: Yellow L24+:Green
Led Status Display As-I: On, Fault: Off, Status: Ok As-I: On, Fault: On, Status: No
Data Traffic As-I: Flashes, Fault: On, Status: Zero Address As-I:
On, Fault: Flashes, Status: Overload (Sensor)
Assignment Of Data Bits
D0 In1/Out1
D1 In2/Out2
D2 In3/Out3
D3 In4

Ambient Conditions

Protection Class Ip Ip00
Ambient Temperature
During Operation °C -25 ... +70
During Storage °C -40 ... +85

Mechanical Data

Width Mm 75
Height Mm 9
Depth Mm 54
Fastening Method Using A "Card Edge Board-To-Board-Connector"
Certificates/ Approvals
General Product Approval Emv
Confirmation
Emv Marine / Shipping Other Environment
Kc
Confirmation Miscellaneous Environmental Con-
Firmations
Industrial Communication
