Description for 3RU2116-1CB0-Z W97 Siemens

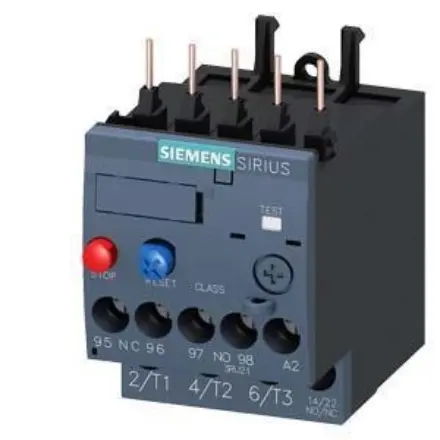

3RU2116-1CB0-Z W97 Siemens - Overload relay 1.8...2.5 A Thermal For motor protection Size S00, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset Multi-unit packaging Pack = 16 units

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 3RU2116-1CB0-Z W97
Product Description Overload relay 1.8...2.5 A Thermal For motor protection Size S00, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset Multi-unit packaging Pack = 16 units
Product family Ordering Data Overview
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 10 Day/Days
Net Weight (kg) 0,139 Kg
Packaging Dimension 42,00 x 69,00 x 68,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1
Minimum order quantity 16

Additional Product Information

EAN 4047621100043
UPC Not available
Commodity Code 85364900
LKZ_FDB/ CatalogID CC-IC10
Product Group 5346
Group Code R711
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 01.10.2009
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

General Technical Data

Size Of Overload Relay S00
Size Of Contactor Can Be Combined Company-Specific S00
Power Loss [W] For Rated Value Of The Current At Ac In Hot
Operating State5.7 W
Per Pole 1.9 W
Insulation Voltage With Degree Of Pollution 3 At Ac Rated Value 690 V
Surge Voltage Resistance Rated Value 6 Kv
Maximum Permissible Voltage For Protective Separation
In Networks With Ungrounded Star Point Between Auxiliary
And Auxiliary Circuit440 V
In Networks With Grounded Star Point Between Auxiliary
And Auxiliary Circuit440 V
In Networks With Ungrounded Star Point Between Main And
Auxiliary Circuit440 V
In Networks With Grounded Star Point Between Main And
Auxiliary Circuit440 V
Shock Resistance According To Iec 60068-2-27 8G / 11 Ms
Reference Code According To Iec 81346-2 F
Substance Prohibitance (Date) 10/01/2009
Weight 0.139 Kg

Ambient Conditions

Installation Altitude At Height Above Sea Level Maximum 2 000 M
Ambient Temperature
During Operation -40 ... +70 °C
During Storage -55 ... +80 °C
During Transport -55 ... +80 °C
Temperature Compensation -40 ... +60 °C
Relative Humidity During Operation 10 ... 95 %

Main Circuit

Number Of Poles For Main Current Circuit 3
Adjustable Current Response Value Current Of The Current-
Dependent Overload Release1.8 ... 2.5 A
Operating Voltage
Rated Value 690 V
At Ac-3E Rated Value Maximum 690 V
Operating Frequency Rated Value 50 ... 60 Hz
Operation Al Current Rated Value 2.5 A
Operation Al Current At Ac-3E At 400 V Rated Value 2.5 A
3Ru21161Cb0-Z W97
Operating Power
At Ac-3
— At 400 V Rated Value 0.75 Kw
— At 500 V Rated Value 1.1 Kw
— At 690 V Rated Value 1.5 Kw
At Ac-3E
— At 400 V Rated Value 0.75 Kw
— At 500 V Rated Value 1.1 Kw
— At 690 V Rated Value 1.5 Kw

Auxiliary Circuit

Design Of The Auxiliary Switch Integrated
Number Of Nc Contacts For Auxiliary Contacts 1
Note For Contactor Disconnection
Number Of No Contacts For Auxiliary Contacts 1
Note For Message "Tripped"
Number Of Co Contacts For Auxiliary Contacts 0
Operation Al Current Of Auxiliary Contacts At Ac-15
At 24 V 3 A
At 110 V 3 A
At 120 V 3 A
At 125 V 3 A
At 230 V 2 A
At 400 V 1 A
At 690 V 0.75 A
Operation Al Current Of Auxiliary Contacts At Dc-13
At 24 V 2 A
At 60 V 0.3 A
At 110 V 0.22 A
At 125 V 0.22 A
At 220 V 0.11 A
Contact Rating Of Auxiliary Contacts According To Ul B600 / R300
Protective And Monitoring Functions
Trip Class Class 10
Design Of The Overload Release Thermal
Ul/Csa Ratings
Full-Load Current (Fla) For 3-Phase Ac Motor
At 480 V Rated Value 2.5 A
At 600 V Rated Value 2.5 A
Short-Circuit Protection
Design Of The Fuse Link
For Short-Circuit Protection Of The Auxiliary Switch Required Fuse Gg: 6 A, Quick: 10 A
Installation/ Mounting/ Dimensions
Mounting Position Any
Fastening Method Contactor Mounting
Height 76 Mm
Width 45 Mm
Depth 70 Mm

Connections/ Terminals

Product Component Removable Terminal For Auxiliary And
Control Circuitno
Type Of Electrical Connection
For Main Current Circuit Screw-Type Terminals
For Auxiliary And Control Circuit Screw-Type Terminals
Arrangement Of Electrical Connectors For Main Current
Circuittop And Bottom
Type Of Connectable Conductor Cross-Sections
For Main Contacts
— Solid Or Stranded 2X (0,5 ... 1,5 Mm²), 2X (0,75 ... 2,5 Mm²), 2X 4 Mm²
— Finely Stranded With Core End Processing 2X (0.5 ... 1.5 Mm²), 2X (0.75 ... 2.5 Mm²)
For Awg Cables For Main Contacts 2X (20 ... 16), 2X (18 ... 14), 2X 12
Type Of Connectable Conductor Cross-Sections
3Ru21161Cb0-Z W97
For Auxiliary Contacts
— Solid Or Stranded 2X (0.5 ... 1.5 Mm²), 2X (0.75 ... 2.5 Mm²)
— Finely Stranded With Core End Processing 2X (0.5 ... 1.5 Mm²), 2X (0.75 ... 2.5 Mm²)
For Awg Cables For Auxiliary Contacts 2X (20 ... 16), 2X (18 ... 14)
Tightening Torque
For Main Contacts With Screw-Type Terminals 0.8 ... 1.2 N·M
For Auxiliary Contacts With Screw-Type Terminals 0.8 ... 1.2 N·M
Design Of Screwdriver Shaft Diameter 5 ... 6 Mm
Size Of The Screwdriver Tip Pozidriv Pz 2
Design Of The Thread Of The Connection Screw
For Main Contacts M3
Of The Auxiliary And Control Contacts M3

Safety Related Data

Failure Rate [Fit] With Low Demand Rate According To Sn
3192050 Fit
Mttf With High Demand Rate 2 280 A
Iec 61508
T1 Value
For Proof Test Interval Or Service Life According To Iec
6150820 A
Electrical Safety
Protection Class Ip On The Front According To Iec 60529 Ip20
Touch Protection On The Front According To Iec 60529 Finger-Safe, For Vertical Contact From The Front
Display
Display Version For Switching Status Slide Switch
