Description for 3VA2710-1AB03-0AA0 Siemens

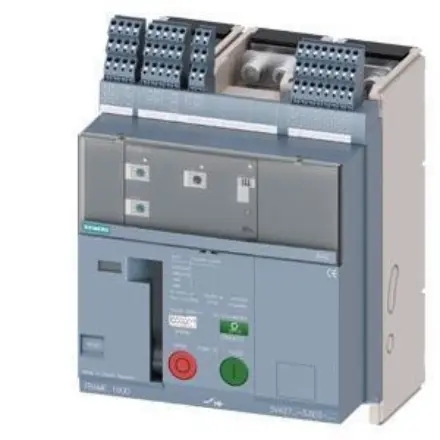

3VA2710-1AB03-0AA0 Siemens - fixed-mounted molded case circuit breaker frame 1600; with RTC and 4AUX trip alarm switch S24; Icu "M" Icu=55kA @ 415V, 3-pole ETU320, LI, In=1000A rotary coding switch Ir=400...1000A Ii=1.5...15 x In N conductor protec. adjustable opt. w. ext. CT; up to 200% nut keeper kit No communication connection, no measurement function Manual operating mechanism of the spring energy store With mechanical calling without 2nd auxiliary release without 1st auxiliary release

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 3VA2710-1AB03-0AA0
Product Description fixed-mounted molded case circuit breaker frame 1600; with RTC and 4AUX trip alarm switch S24; Icu "M" Icu=55kA @ 415V, 3-pole ETU320, LI, In=1000A rotary coding switch Ir=400...1000A Ii=1.5...15 x In N conductor protec. adjustable opt. w. ext. CT; up to 200% nut keeper kit No communication connection, no measurement function Manual operating mechanism of the spring energy store With mechanical calling without 2nd auxiliary release without 1st auxiliary release
Product family 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations ECCN : EAR99 / AL : N
Estimated dispatch time (Working Days) 5 Day/Days
Net Weight (kg) 12,190 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN Not available
UPC Not available
Commodity Code 85362090
LKZ_FDB/ CatalogID LV10
Product Group 5374
Group Code P360
Country of origin Czech Republic
Compliance with the substance restrictions according to RoHS directive Since: 01.01.2018
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Model

Product Brand Name Sentron
Product Designation Molded Case Circuit Breaker
Design Of The Product Mccb
Product Variations Selective Applications
Design Of The Actuating Element Spring Actuator
Type Of The Driving Mechanism Without Motor Drive
Type Of The Driving Mechanism / Motor Drive No
Design Of The Overcurrent Release Etu320

General Technical Data

Number Of Poles 3
Size Of The Circuit-Breaker 1600 A
Mechanical Service Life (Operating Cycles) / Typical 1 000
Electrical Endurance (Operating Cycles) / At Ac-1 / At 380/415 V 2 000
Insulation Voltage / Rated Value 1 000 V
Operation Al Current
At 45 °C / Rated Value 1 000 A
Continuous Current / Rated Value / Maximum 1 000 A

Supply Voltage

Operating Voltage
At Ac / At 50/60 Hz / Rated Value 690 V

Protection Class

Protection Class Ip / On The Front Ip20

Breaking Capacity

Switching Capacity Class Of The Circuit Breaker M
Power Loss [W]
For Rated Value Of The Current / At Ac / In Hot Operating
State / Per Pole30 W
Maximum 90 W

Auxiliary Circuit

Number Of Co Contacts / For Auxiliary Contacts 4
Suitability
Suitability For Use System Protection

Adjustable Parameters

Adjustable Current Response Value Current / Of The Current-
Dependent Overload Release / Initial Value400 A

Product Component

Trip Indicator Yes
Voltage Trigger No
Undervoltage Release No
Product Extension / Optional / Motor Drive Yes

Product Function

Product Function
Grounding Protection No
Communication Function No

Display And Operation

Display Version Without Display
Short Circuit
Operating Short-Circuit Current Breaking Capacity (Ics)
At 240 V / Rated Value 100 Ka
At 415 V / Rated Value 55 Ka
At 440 V / Rated Value 55 Ka
At 500 V / Rated Value 36 Ka
At 690 V / Rated Value 25 Ka
Maximum Short-Circuit Current Breaking Capacity (Icu)
At 240 V / Rated Value 100 Ka
At 415 V / Rated Value 55 Ka
At 440 V / Rated Value 55 Ka
At 500 V / Rated Value 36 Ka
At 690 V / Rated Value 25 Ka
Short-Circuit Current Making Capacity (Icm)
At 240 V / Rated Value 220 Ka
At 415 V / Rated Value 121 Ka
At 440 V / Rated Value 121 Ka
At 500 V / Rated Value 75.6 Ka
At 690 V / Rated Value 53 Ka

Connections

Arrangement Of Electrical Connectors / For Main Current Circuit Main Connection On Front Side
Type Of Electrical Connection / For Main Current Circuit Busbar Connection

Mechanical Design

Height 296 Mm
Width 210 Mm
Depth 183 Mm
Fastening Method Fixed Mounting
Net Weight 14 Kg

Environmental Conditions

Ambient Temperature / During Operation
Minimum -25 °C
Maximum 70 °C
Ambient Temperature / During Storage
Minimum -40 °C
Maximum 70 °C

Documentation
