Siemens

6AG1040-1LA01-2AA0

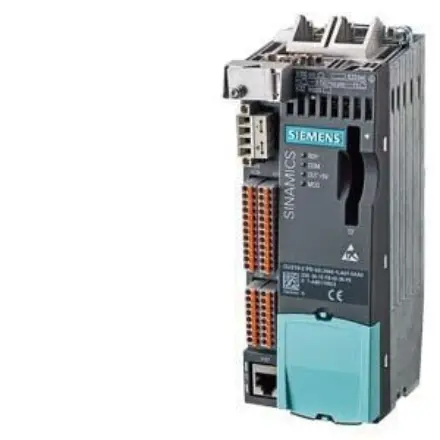

6AG1040-1LA01-2AA0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6AG1040-1LA01-2AA0 Siemens

6AG1040-1LA01-2AA0 Siemens - SIPLUS S120 Control Unit CU310-2 PN based on 6SL3040-1LA01-0AA0 with conformal coating, -20…+55 °C, with PROFINET interface without CompactFlash card

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6AG1040-1LA01-2AA0
Product Description SIPLUS S120 Control Unit CU310-2 PN based on 6SL3040-1LA01-0AA0 with conformal coating, -20…+55 °C, with PROFINET interface without CompactFlash card
Product family Not available
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : EAR99APP
Estimated dispatch time (Working Days) 45 Day/Days
Net Weight (kg) 0,950 Kg
Packaging Dimension 73,00 x 75,00 x 191,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4047618052379
UPC 804766223402
Commodity Code 85049090
LKZ_FDB/ CatalogID A&DSE/SIP ADD
Product Group 4576
Group Code R151
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 23.08.2012
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Product Function

V/F Control With Linear/Square Parameterization Capability No
V/F Control With Eco Mode Linear/Square No
V/F Control With Flux Current Control No
Vector Control With Encoder No
Vector Control Without Encoder Yes

Supply Voltage

Operating Voltage From Power Module 24 V
Operating Voltage From External Power Supply, Min. 20.4 V
Operating Voltage From External Power Supply, Max. 28.8 V
Input Current
Current Consumption, Max. 0.3 A
Power Loss
Power Loss , Max. 20 W
Digital Inputs
Number Of Digital Inputs 11; According To Iec 61131-2 Type 1, 5 Floating Digital Inputs, 8 Bidirectional
Non-Floating Digital Inputs/Outputs, 3 Parameterizable Failsafe Digital Inputs
(Electrically Isolated) Or, Alternatively, 6 Parameterizable Digital Inputs
(Electrically Isolated)
With Fail-Safe 3; Optionally Parameterizable As Safe Inputs

Analog Inputs

Number Of Analog Inputs 1; The Differential Analog Inputs Can Be Configured As Supplementary Digital
Inputs
Type Of Analog Input Differential Input
Interfaces
Number Of Profinet Interfaces 2
Number Of Rs 485 Interfaces 0
Protocols
Profibus No
Isolation
Type Of Protective Insulation Pelv According To En 50178, Safe Disconnection From The Mains By
Double/Reinforced Isolation
Degree And Class Of Protection
Ip Degree Of Protection Ip20
Standards, Approvals, Certificates
Certificate Of Suitability Ce / Tüv

Ambient Temperature During Operation

Min. -20 °C; = Tmin
Max. 55 °C; = Tmax
Min. [°F] -4 °F
Max. [°F] 131 °F
Remark A Derating Of 3 K/1 000 M Has To Be Applied To The Control Units From An
Installation Altitude Of 1 000 M Above Sea Level
Ambient Temperature During Storage/Transportation
Storage, Min. -40 °C
Storage, Max. 70 °C
Storage, Min. [°F] -40 °F
Storage, Max. [°F] 158 °F
Relative Humidity
With Condensation, Tested In Accordance With Iec 60068-
2-38, Max.100 %; Rh Incl. Condensation/Frost (No Commissioning Under Condensation
Conditions)
Resistance
Use In Stationary Industrial Systems
— To Biologically Active Substances According To En
60721-3-3Yes; Class 3B2 Mold, Fungus And Dry Rot Spores (With The Exception Of Fauna);
Class 3B3 On Request
— To Chemically Active Substances According To En
60721-3-3Yes; Class 3C4 (Rh < 75 %) Incl. Salt Spray Acc. To En 60068-2-52 (Severity
Degree 3); *
— To Mechanically Active Substances According To En
60721-3-3No
Usage In Industrial Process Technology
— Against Chemically Active Substances Acc. To En
60654-4Yes; Class 3 (Excluding Trichlorethylene)
— Environmental Conditions For Process, Measuring
And Control Systems Acc. To Ansi/Isa-71.04Yes; Level Gx Group A/B (Excluding Trichlorethylene; Harmful Gas
Concentrations Up To The Limits Of En 60721-3-3 Class 3C4 Permissible); Level
Lc3 (Salt Spray) And Level Lb3 (Oil)
Remark
— Note Regarding Classification Of Environmental
Conditions Acc. To En 60721, En 60654-4 And
Ansi/Isa-71.04* The Supplied Plug Covers Must Remain In Place Over The Unused Interfaces
During Operation!
Conformal Coating
Coatings For Printed Circuit Board Assemblies Acc. To En
61086Yes; Class 2 For High Reliability
Military Testing According To Mil-I-46058C, Amendment 7 Yes; Discoloration Of Coating Possible During Service Life
Qualification And Performance Of Electrical Insulating
Compound For Printed Board Assemblies According To Ipc-
Cc-830Ayes; Conformal Coating, Class A
Connection Method
Type Of Electrical Connection For Signal Line
Connectable Conductor Cross-Section For Signal Line, Min. 0.05 Mm²
Connectable Conductor Cross-Section For Signal Line, Max. 1.5 Mm²
Connectable Conductor Cross-Section For Awg Cables,
Min.30
Connectable Conductor Cross-Section For Awg Cables,
Max.16

Dimensions

Width 73 Mm
Height 191 Mm
Depth 75 Mm
Weight S
Weight (Without Packaging) 0.95 Kg
