Description for 6AG1138-6AA00-2BA8 Siemens

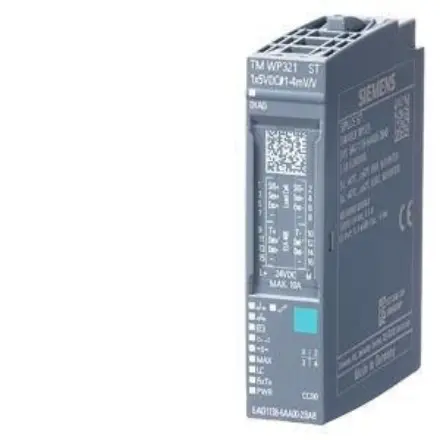

6AG1138-6AA00-2BA8 Siemens - SIPLUS ET 200SP WP321 based on 7MH4138-6AA00-0BA0 with conformal coating, -40…+60 °C, electronic weighing system 1 channel for the connection of load cells DMS full bridges (1-4 mV/V) for SIMATIC ET200SP, suitable for BU type A0, RS485 interface for SIWATOOL or remote display.

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6AG1138-6AA00-2BA8
Product Description SIPLUS ET 200SP WP321 based on 7MH4138-6AA00-0BA0 with conformal coating, -40…+60 °C, electronic weighing system 1 channel for the connection of load cells DMS full bridges (1-4 mV/V) for SIMATIC ET200SP, suitable for BU type A0, RS485 interface for SIWATOOL or remote display.
Product family SIPLUS SIWAREX WP321
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 45 Day/Days
Net Weight (kg) 0,001 Kg
Packaging Dimension 6,50 x 7,70 x 2,30
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4047618088002
UPC 804766904462
Commodity Code 85389091
LKZ_FDB/ CatalogID A&DSE/SIP ADD
Product Group 4257
Group Code R151
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 08.02.2018
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Product Function

I&M Data Yes; I&M0 To I&M3
Isochronous Mode No
Adjustment Of Measuring Range No
Engineering With
Step 7 Tia Portal Configurable/Integrated From Version See Entry Id: 109746275

Supply Voltage

Load Voltage L+
Rated Value (Dc) 24 V
Permissible Range, Lower Limit (Dc) 19.2 V
Permissible Range, Upper Limit (Dc) 28.8 V
Short-Circuit Protection Yes
Reverse Polarity Protection Yes
Input Current
Current Consumption, Max. 100 Ma
Power
Power Available From The Backplane Bus 70 Mw
Power Loss
Power Loss , Typ. 2 W
Address Area
Address Space Per Module
Inputs 16 Byte
Outputs 16 Byte
Encoder
Connection Of Signal Encoders
For Strain Gauges (Full Bridges) With 4-Conductor
Connectionyes
For Strain Gauges (Full Bridges) With 6-Conductor
Connectionyes
Resistance Of Full Bridge, Min. 40 Ω; When Using Siwarex Is: 50 Ohm For 7Mh4710-5Ba; 105 Ohm When
Using 7Mh4710-5Ca
Resistance Of Full Bridge, Max. 4 100 Ω
Errors/Accuracies
Linearity Error (Relative To Input Range), (+/-) 0.01 %
Error Limit According To Din 1319-1 0.05 %; Of Full-Scale Value
Temperature Coefficient, Zero Point ≤ ±0.1 Μ V/K
Temperature Coefficient, Span ≤ ±5 Ppm/K
1. Interface
Interface Types
Rs 485 Yes; 390 Ω, 220 Ω, 390 Ω Connectable Termination
Interface Types
Rs 485
Transmission Rate, Max. 115.2 Kbit/S
Cable Length, Max. 1 000 M; ≤ 115 Kbps, Shielded Cable
Interrupts/Diagnostics/Status Information
Diagnostics Function Yes; Diagnostic Alarm
Substitute Values Connectable No
Alarms
Diagnostic Alarm Yes; Parameterizable
Hardware Interrupt Yes; Parameterizable
Diagnoses
Monitoring The Supply Voltage Yes
Wire-Break Yes
Short-Circuit Yes
Diagnostics Indication Led
Error Led Yes; Green/Red Diag Led
Monitoring Of The Supply Voltage (Pwr-Led) Yes; Green Pwr Led
Integrated Functions
Counter Yes
Load Cell
Non-Automatic Weighing Instrument Nawi
Sampling Rate 600 Hz
Resolution Of Input Signal ±500 000 Parts Pro Mv/V
Common Mode Voltage, Min. 0.25 V
Common Mode Voltage, Max. 4.75 V
Input Resistance Of Signal Line, Typ. 4 Mω
Input Resistance Of Sense Line, Typ. 2 Mω
Cable Length, Max. 500 M; When Using The Siwarex 7Mh4702-8Ag Cable

Measuring Functions

Measuring Range
— -1 Mv/V To +1 Mv/V Yes; Corresponds To A Resolution Of ±500 000 Parts
— -2 Mv/V To +2 Mv/V Yes; Corresponds To A Resolution Of ±1 000 000 Parts
— -4 Mv/V To +4 Mv/V Yes; Corresponds To A Resolution Of ±2 000 000 Parts
Isolation
Isolation Tested With 707 V Dc (Type Test)
Standards, Approvals, Certificates
Suitable For Safety Functions No

Ambient Temperature During Operation

Horizontal Installation, Min. -40 °C; = Tmin (Incl. Condensation/Frost)
Horizontal Installation, Max. 60 °C
Vertical Installation, Min. -40 °C; = Tmin (Incl. Condensation/Frost)
Vertical Installation, Max. 50 °C
Altitude During Operation Relating To Sea Level
Installation Altitude Above Sea Level, Max. 5 000 M
Ambient Air Temperature-Barometric Pressure-Altitude Tmin ... Tmax At 1 080 Hpa ... 795 Hpa (-1 000 M ... +2 000 M) // Tmin ... (Tmax
- 10 K) At 795 Hpa ... 658 Hpa (+2 000 M ... +3 500 M) // Tmin ... (Tmax - 20 K)
At 658 Hpa ... 540 Hpa (+3 500 M ... +5 000 M)
Relative Humidity
With Condensation, Tested In Accordance With Iec 60068-
2-38, Max.100 %; Rh Incl. Condensation / Frost (No Commissioning In Bedewed State),
Horizontal Installation
Resistance
Coolants And Lubricants
— Resistant To Commercially Available Coolants And
Lubricantsyes; Incl. Diesel And Oil Droplets In The Air
Use In Stationary Industrial Systems
— To Biologically Active Substances According To En
60721-3-3Yes; Class 3B2 Mold, Fungus And Dry Rot Spores (With The Exception Of Fauna);
Class 3B3 On Request
— To Chemically Active Substances According To En
60721-3-3Yes; Class 3C4 (Rh < 75 %) Incl. Salt Spray Acc. To En 60068-2-52 (Severity
Degree 3); *
— To Mechanically Active Substances According To En
60721-3-3Yes; Class 3S4 Incl. Sand, Dust, *
— Against Mechanical Environmental Conditions Acc.
To En 60721-3-3Yes; Class 3M8 Using The Siplus Mounting Kit Et 200Sp (6Ag1193-6Aa00-
0Aa0)
Use On Ships/At Sea
— To Biologically Active Substances According To En
60721-3-6Yes; Class 6B2 Mold, Fungal And Dry Rot Spores (Excluding Fauna)
— To Chemically Active Substances According To En
60721-3-6Yes; Class 6C3 (Rh < 75 %) Incl. Salt Spray Acc. To En 60068-2-52 (Severity
Degree 3); *
— To Mechanically Active Substances According To En
60721-3-6Yes; Class 6S3 Incl. Sand, Dust; *
— Against Mechanical Environmental Conditions Acc.
To En 60721-3-6Yes; Class 6M4 Using The Siplus Mounting Kit Et 200Sp (6Ag1193-6Aa00-
0Aa0)
Usage In Industrial Process Technology
— Against Chemically Active Substances Acc. To En
60654-4Yes; Class 3 (Excluding Trichlorethylene)
— Environmental Conditions For Process, Measuring
And Control Systems Acc. To Ansi/Isa-71.04Yes; Level Gx Group A/B (Excluding Trichlorethylene; Harmful Gas
Concentrations Up To The Limits Of En 60721-3-3 Class 3C4 Permissible); Level
Lc3 (Salt Spray) And Level Lb3 (Oil)
Remark
— Note Regarding Classification Of Environmental
Conditions Acc. To En 60721, En 60654-4 And
Ansi/Isa-71.04* The Supplied Plug Covers Must Remain In Place Over The Unused Interfaces
During Operation!
Conformal Coating
Coatings For Printed Circuit Board Assemblies Acc. To En
61086Yes; Class 2 For High Reliability
Protection Against Fouling Acc. To En 60664-3 Yes; Type 1 Protection
Military Testing According To Mil-I-46058C, Amendment 7 Yes; Discoloration Of Coating Possible During Service Life
Qualification And Performance Of Electrical Insulating
Compound For Printed Board Assemblies According To Ipc-
Cc-830Ayes; Conformal Coating, Class A
Decentralized Operation
To Simatic S7-300 Yes
To Simatic S7-400 Yes
To Simatic S7-1200 Yes
To Simatic S7-1500 Yes
To Standard Profibus Master Yes
To Standard Profinet Controller Yes

Dimensions

Width 15 Mm
Height 57 Mm
Depth 72 Mm
Weight S
Weight , Approx. 31 G

Documentation

Downloads
