Siemens

6AG1216-4BS00-7AC2

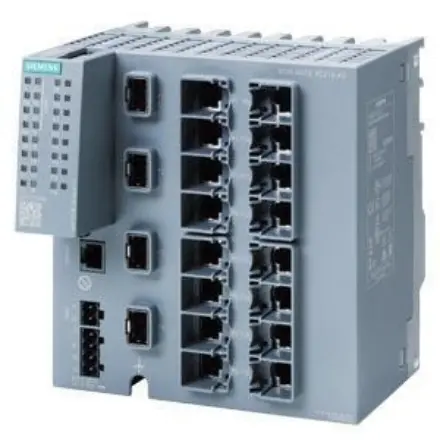

6AG1216-4BS00-7AC2 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6AG1216-4BS00-7AC2 Siemens

6AG1216-4BS00-7AC2 Siemens - SIPLUS NET SCALANCE XC216-4C based on 6GK5216-4BS00-2AC2 with conformal coating, -40…+70 °C, manageable layer 2 IE switch; 12x 10/100 Mbps RJ45 ports; 4x 1000 Mbps combo ports (either 1000 Mbps SFPs or 10/100/1000 Mbps RJ45 ports can be used); 1x console port; diagnostics LEDs; redundant power supply temperature range -40 °C to +70 °C; assembly: standard mounting rail/S7 mounting rail/ wall; redundancy functions; office features(RSTP,VLAN,etc.); PROFINET IO device; Ethernet/

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6AG1216-4BS00-7AC2
Product Description SIPLUS NET SCALANCE XC216-4C based on 6GK5216-4BS00-2AC2 with conformal coating, -40…+70 °C, manageable layer 2 IE switch; 12x 10/100 Mbps RJ45 ports; 4x 1000 Mbps combo ports (either 1000 Mbps SFPs or 10/100/1000 Mbps RJ45 ports can be used); 1x console port; diagnostics LEDs; redundant power supply temperature range -40 °C to +70 °C; assembly: standard mounting rail/S7 mounting rail/ wall; redundancy functions; office features(RSTP,VLAN,etc.); PROFINET IO device; Ethernet/
Product family SIPLUS SCALANCE XC-200 managed
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : 9N9999
Estimated dispatch time (Working Days) 45 Day/Days
Net Weight (kg) 0,520 Kg
Packaging Dimension 20,50 x 20,50 x 21,00
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4047618111717
UPC 195125325050
Commodity Code 85176200
LKZ_FDB/ CatalogID A&DSE/SIP ADD
Product Group 4575
Group Code R151
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Given
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Ambient Conditions

Ambient Temperature / In Horizontal Mounting Position / During
Operation -40 ... +70 °C
Installation Altitude / At Height Above Sea Level / Maximum 5000 M
Relative Humidity
With Condensation / According To Iec 60068-2-38 /
Maximum 100 %; Rh Including Condensation/Frost (No Commissioning When Condensation
Is Present), Horizontal Installation
Chemical Resistance / To Commercially Available Cooling
Lubricantsyes; Incl. Airborne Diesel And Oil Droplets
Ambient Condition / Relating To Ambient Temperature - Air
Pressure - Installation Altitudetmin ... Tmax At 1 140 Hpa ... 795 Hpa (-1 000 M ... +2 000 M) // Tmin ... (Tmax
- 10 K) At 795 Hpa ... 658 Hpa (+2 000 M ... +3 500 M) // Tmin ... (Tmax - 20 K)
At 658 Hpa ... 540 Hpa (+3 500 M ... +5 000 M)
Resistance To Biologically Active Substances
Conformity According To En 60721-3-3 Yes; Class 3B2 Mold And Fungal Spores (Excluding Fauna); Class 3B3 On
Request
Conformity According To En 60721-3-6 Yes; Class 6B2 Mold, Fungal And Dry Rot Spores (Excluding Fauna)
Resistance To Chemically Active Substances
Conformity According To En 60721-3-3 Yes; Class 3C4 (Rh < 75 %) Incl. Salt Spray Acc. To En 60068-2-52 (Severity
Degree 3); *
Conformity According To En 60721-3-6 Yes; Class 6C3 (Rh < 75%) Incl. Salt Spray Acc. To En 60068-2-52 (Severity
Degree 3); *
Resistance To Mechanically Active Substances
Conformity According To En 60721-3-3 Yes; Class 3S4 Incl. Sand, Dust; *
Conformity According To En 60721-3-6 Yes; Class 6S3 Incl. Sand, Dust; *
Environmental Category / According To Iec 60721 / Note * The Supplied Plug Covers Must Remain In Place On The Unused Interfaces
During Operation!
Coating / For Equipped Printed Circuit Board / According To En
61086Yes; Class 2 For High Availability
Type Of Coating / Protection Against Pollution According To En
60664-3Yes; Protection Of The Type 1
Type Of Test / Of The Coating / According To Mil-I-46058C Yes; Coating Discoloration During Service Life Possible
Product Conformity / Of The Coating / Qualification And
Performance Of Electrical Insulating Compound For Printed
Board Assemblies According To Ipc-Cc-830Ayes; Conformal Coating, Class A
Protection Class Ip Ip20
Design, Dimensions And Weights
Design Compact
Width 140 Mm
Height 150 Mm
Depth 125 Mm
Net Weight 1.2 Kg
Material / Of The Enclosure Polycarbonate (Pc-Gf10) / Pressure Die Cast Aluminum
Fastening Method
35 Mm Top Hat Din Rail Mounting Yes
Wall Mounting No
S7-300 Rail Mounting Yes
Product Features, S, Product Components / General

Product Features, Product Functions, Product Components / General

Cascading In The Case Of A Redundant Ring / At Reconfiguration
Time Of <\~0.3\~S50
Cascading In Cases Of Star Topology Any (Depending Only On Signal Propagation Time)

Product Function

Qos According To Dscp Yes
Product Feature
Cut Through Switching Method No
Store & Forward Switching Method Yes
Product Functions / Management, Configuration, Engineering
Product Function
Cli Yes
Web-Based Management Yes
Mib Support Yes
Traps Via Email Yes
Configuration With Step 7 Yes
Rmon Yes
Smtp Server No
Port Mirroring Yes
Multiport Mirroring Yes
Cos Yes
Profinet Io Diagnosis Yes
Switch-Managed Yes
Profinet Conformity Class B
Telegram Length / For Ethernet / Maximum 1632 Byte
Protocol / Is Supported
Telnet Yes
Http Yes
Https Yes
Tftp Yes
Sftp Yes
Bootp No
Gmrp Yes
Dcp Yes
Lldp Yes
Ethernet/Ip Yes
Snmp V1 Yes
Snmp V2 Yes
Snmp V3 Yes
Igmp (Snooping/Querier) Yes
Identification & Maintenance Function
I&M0 - Device-Specific Information Yes
I&M1 - Higher Level Designation/Location Designation Yes
Product Functions / Diagnostics
Product Function
Port Diagnostics Yes
Statistics Packet Size Yes
Statistics Packet Type Yes
Error Statistics Yes
Syslog Yes
Product Functions / Vlan
Product Function
Vlan - Port Based Yes
Vlan - Protocol-Based No
Vlan - Ip-Based No
Number Of Vlans / Maximum 257
Number Of Vlans - Dynamic / Maximum 257
Number Of Vlans / At Ring Redundancy (Hrp; Mrp; Standby
Link)257
Product Functions / Dhcp
Product Function
Dhcp Server Yes
Dhcp Client Yes
Dhcp Option 82 Yes
Dhcp Option 66 Yes
Dhcp Option 67 Yes
Product Functions / Redundancy
Protocol / Is Supported / Media Redundancy Protocol (Mrp) Yes
Product Function
Media Redundancy Protocol (Mrp) With Redundancy
Manageryes
Of The Profinet Io Device / Is Supported / H-Sync
Forwardingyes
Of The Profinet Io Device / Is Supported / Profinet
System Redundancyyes
Ring Redundancy Yes
High Speed Redundancy Protocol (Hrp) With Redundancy
Manageryes
High Speed Redundancy Protocol (Hrp) With Standby
Redundancyyes
Redundancy Procedure Stp Yes
Redundancy Procedure Rstp Yes
Redundancy Procedure Mstp Yes
Parallel Redundancy Protocol (Prp)/Operation In The
Prp-Networkyes
Parallel Redundancy Protocol (Prp)/Redundant Network
Access (Rna)No
Passive Listening Yes
Protocol / Is Supported
Lacp Yes
System Modification During Operation
Product Function / Configuration In Run Via Cir/H-Cir Yes
Product Functions / Security
Product Function
Ieee 802.1X (Radius) Yes
Radius Client Yes
Broadcast/Multicast/Unicast Limiter Yes
Broadcast Blocking Yes
Protocol / Is Supported
Ssh Yes
Ssl Yes
Product Functions / Time
Product Function
Siclock Support Yes
Ntp-Client Yes
Sntp Client Yes
Protocol / Is Supported
Ntp Yes
Sntp Yes

Standards, Specifications, Approvals

Certificate Of Suitability
Ce Marking Yes
Product Conformity / According To Emc-Guideline 2014/30/Eu
Standard
For Emc Interference Emission En 61000-6-4, En 50121-12
For Immunity To Emc En 61000-6-2, En 50121-12
Standards, Specifications, Approvals / Other
Certificate Of Suitability
Rohs Conformity Yes
Product Functions / General
Mtbf 46 A
Reference Code
According To Iec 81346-2 Kf
According To Iec 81346-2:2019 Kfe

Documentation
