Siemens

6AG1242-6TM10-2BB1

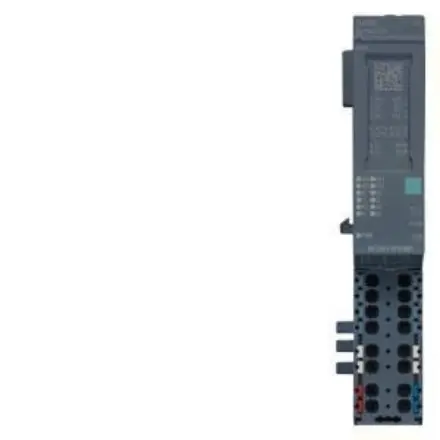

6AG1242-6TM10-2BB1 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6AG1242-6TM10-2BB1 Siemens

6AG1242-6TM10-2BB1 Siemens - SIPLUS ET 200SP TM ECC 2xPWM ST based on 6FE1242-6TM10-0BB1 with conformal coating, -30…+60 °C, load controller for conductive charging of electric vehicles according to IEC61851 with 2 charging outlets; 2x Control Pilot; 2x plug present; 2x DQ switching contact for load contactor as open collector; 2x DI for feedback; load contactor or connector lock; 2x ACT for connector interlock suitable for BU type BU20-P12+A0+4B and BU20-P12+A4+0B

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6AG1242-6TM10-2BB1
Product Description SIPLUS ET 200SP TM ECC 2xPWM ST based on 6FE1242-6TM10-0BB1 with conformal coating, -30…+60 °C, load controller for conductive charging of electric vehicles according to IEC61851 with 2 charging outlets; 2x Control Pilot; 2x plug present; 2x DQ switching contact for load contactor as open collector; 2x DI for feedback; load contactor or connector lock; 2x ACT for connector interlock suitable for BU type BU20-P12+A0+4B and BU20-P12+A4+0B
Product family SIPLUS ET 200SP ECC charging controllers
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : 9N9999
Estimated dispatch time (Working Days) 45 Day/Days
Net Weight (kg) 0,045 Kg
Packaging Dimension 6,80 x 7,70 x 3,00
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4047618099107
UPC Not available
Commodity Code 85389091
LKZ_FDB/ CatalogID A&DSE/SIP ADD
Product Group 4257
Group Code R151
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 04.04.2018
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Product Function

I&M Data Yes; I&M0 To I&M3
Isochronous Mode No
Engineering With
Step 7 Tia Portal Configurable/Integrated From Version See Entry Id: 109746275
Installation Type/Mounting
Mounting Type Standard Rail
Mounting Position Horizontal

Supply Voltage

Type Of Supply Voltage Dc
Rated Value (Dc) 24 V
Permissible Range, Lower Limit (Dc) 19.2 V
Permissible Range, Upper Limit (Dc) 28.8 V
Reverse Polarity Protection Yes; Against Destruction
Input Current
Current Consumption, Typ. 40 Ma
Current Consumption, Max. 90 Ma
Digital Inputs
Number Of Digital Inputs 2; 1 Per Channel
Digital Inputs, Parameterizable Yes; 12 V / 24 V
Digital Input Functions, Parameterizable
Freely Usable Digital Input No; Readback Contact Contactor / Connector Lock
Input Voltage
Type Of Input Voltage Dc
For Signal "0" <0.2 V (Nom)
For Signal "1" >0.6 V (Nom)
Permissible Voltage At Input, Min. 0 V
Permissible Voltage At Input, Max. 30 V
Cable Length
Unshielded, Max. 30 M
Digital Outputs
Type Of Digital Output Transistor
Number Of Digital Outputs 2; 1 Per Channel
Short-Circuit Proof Yes
Short-Circuit Protection Yes; Electronic/Thermal
Digital Output Functions, Parameterizable
Pwm Output Yes; According To Iec 61851
— Number, Max. 2; 1 Per Channel
— Cycle Duration, Parameterizable No; 1 Khz
Connection Of A Dc Motor Yes; Act P/N Connector Locking
Switching Capacity Of The Outputs
With Resistive Load, Max. 1.3 A
Output Voltage
Type Of Output Voltage Dc
Rated Value (Dc) 24 V
Cable Length
Unshielded, Max. 30 M
Protocols
Bus Communication Yes
Vehicle Communication According To Iec 61851 Yes; Mode 3
Interrupts/Diagnostics/Status Information
Alarms
Diagnostic Alarm Yes
Diagnoses
Monitoring The Supply Voltage No
Short-Circuit Yes
Diagnostics Indication Led
Error Led Yes; Red Led
Monitoring Of The Supply Voltage (Pwr-Led) Yes; Green Pwr Led
Channel Status Display Yes; Green Led
For Module Diagnostics Yes; Green/Red Diag Led
Potential Separation
Potential Separation Channels
Between The Channels No
Between The Channels And Backplane Bus Yes
Isolation
Isolation Tested With 707 V Dc
Degree Of Pollution 2
Emc
Electrostatic Discharge Acc. To Iec 61000-4-2 4 Kv Contact Discharge / 8 Kv Air Discharge
Field-Related Interference Acc. To Iec 61000-4-3 10 V/M (80 ... 1 000 Mhz), 3 V/M (1.4 ... 2.0 Ghz), 1 V/M (2.0 ... 2.7 Ghz)
Conducted Interference Due To Burst Acc. To Iec 61000-4-4 2 Kv Signal Lines
Conducted Interference Due To Surge Acc. To Iec 61000-4-5 On Dc Supply Lines: 0.5 Kv Symmetrical And Asymmetrical
Conducted Interference Due To High-Frequency Radiation Acc. To
Iec 61000-4-610 V (0.15 ... 80 Mhz)
Degree And Class Of Protection
Ip Degree Of Protection Ip20
Standards, Approvals, Certificates
Certificate Of Suitability Ce

Ambient Temperature During Operation

Horizontal Installation, Min. -30 °C; = Tmin
Horizontal Installation, Max. 60 °C; = Tmax
Vertical Installation, Min. -30 °C; = Tmin
Vertical Installation, Max. 50 °C; = Tmax
Ambient Temperature During Storage/Transportation
Storage, Min. -40 °C
Storage, Max. 70 °C
Transportation, Min. -40 °C
Transportation, Max. 70 °C
Altitude During Operation Relating To Sea Level
Installation Altitude Above Sea Level, Max. 5 000 M
Ambient Air Temperature-Barometric Pressure-Altitude Tmin ... Tmax At 1 140 Hpa ... 795 Hpa (-1 000 M ... +2 000 M) // Tmin ... (Tmax
- 10 K) At 795 Hpa ... 658 Hpa (+2 000 M ... +3 500 M) // Tmin ... (Tmax -20 K)
At 658 Hpa ... 540 Hpa (+3 500 M ... +5 000 M)
Relative Humidity
With Condensation, Tested In Accordance With Iec 60068-
2-38, Max.100 %; Rh Incl. Condensation / Frost (No Commissioning In Bedewed State),
Horizontal Installation
Vibrations
Vibration Resistance During Operation Acc. To Iec 60068-
2-610 ... 58 Hz / 0.075 Mm, 58 ... 150 Hz / 1 G
Shock Testing
Shock Resistance Acc. To Iec 60068-2-27 15 G / 11 Ms
Resistance
Coolants And Lubricants
— Resistant To Commercially Available Coolants And
Lubricantsyes; Incl. Diesel And Oil Droplets In The Air
Use In Stationary Industrial Systems
— To Biologically Active Substances According To En
60721-3-3Yes; Class 3B2 Mold, Fungus And Dry Rot Spores (With The Exception Of Fauna);
Class 3B3 On Request
— To Chemically Active Substances According To En
60721-3-3Yes; Class 3C4 (Rh < 75 %) Incl. Salt Spray Acc. To En 60068-2-52 (Severity
Degree 3); *
— To Mechanically Active Substances According To En
60721-3-3Yes; Class 3S4 Incl. Sand, Dust, *
— Against Mechanical Environmental Conditions Acc.
To En 60721-3-3Yes; Class 3M8 Using The Siplus Mounting Kit Et 200Sp (6Ag1193-6Aa00-
0Aa0)
Usage In Industrial Process Technology
— Against Chemically Active Substances Acc. To En
60654-4Yes; Class 3 (Excluding Trichlorethylene)
— Environmental Conditions For Process, Measuring
And Control Systems Acc. To Ansi/Isa-71.04Yes; Level Gx Group A/B (Excluding Trichlorethylene; Harmful Gas
Concentrations Up To The Limits Of En 60721-3-3 Class 3C4 Permissible); Level
Lc3 (Salt Spray) And Level Lb3 (Oil)
Remark
— Note Regarding Classification Of Environmental
Conditions Acc. To En 60721, En 60654-4 And
Ansi/Isa-71.04* The Supplied Plug Covers Must Remain In Place Over The Unused Interfaces
During Operation!
Conformal Coating
Coatings For Printed Circuit Board Assemblies Acc. To En
61086Yes; Class 2 For High Reliability
Protection Against Fouling Acc. To En 60664-3 Yes; Type 1 Protection
Military Testing According To Mil-I-46058C, Amendment 7 Yes; Discoloration Of Coating Possible During Service Life
Qualification And Performance Of Electrical Insulating
Compound For Printed Board Assemblies According To Ipc-
Cc-830Ayes; Conformal Coating, Class A
Decentralized Operation
To Simatic S7-1500 Yes

Dimensions

Width 20 Mm
Height 73 Mm
Depth 58 Mm
Weight S
Weight , Approx. 32 G
