6AG1620-0AA00-7AA0

6AG1620-0AA00-7AA0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6AG1620-0AA00-7AA0 Siemens

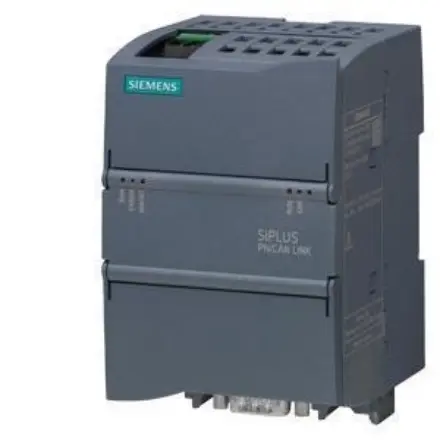

6AG1620-0AA00-7AA0 Siemens - SIPLUS PN/CAN link based on 6BK1620-0AA00-0AA0 with conformal coating, -40…+70 °C, from PROFINET to CAN/CANopen networks CAN 2.0 A/B CANopen manager to CiA301/302 CANopen slave to CiA301/302 IP20

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6AG1620-0AA00-7AA0
Product Description SIPLUS PN/CAN link based on 6BK1620-0AA00-0AA0 with conformal coating, -40…+70 °C, from PROFINET to CAN/CANopen networks CAN 2.0 A/B CANopen manager to CiA301/302 CANopen slave to CiA301/302 IP20
Product family SIPLUS PN/CAN LINK
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : 9N9999
Estimated dispatch time (Working Days) 45 Day/Days
Net Weight (kg) 0,275 Kg
Packaging Dimension 9,00 x 12,50 x 8,50
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4047618091705
UPC 195125314009
Commodity Code 85176200
LKZ_FDB/ CatalogID A&DSE/SIP ADD
Product Group 4575
Group Code R151
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 13.12.2017
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Supply Voltage

Type Of Supply Voltage Dc
Rated Value (Dc) 24 V
Permissible Range, Lower Limit (Dc) 20.4 V
Permissible Range, Upper Limit (Dc) 28.8 V
Reverse Polarity Protection Yes
Overvoltage Protection Yes
Short-Circuit Protection Yes
Mains Buffering
Mains/Voltage Failure Stored Energy Time 10 Ms
Input Current
Current Consumption (Rated Value) 0.09 A
Current Consumption, Max. 0.11 A
Power Loss
Power Loss , Typ. 2.2 W
Interfaces
Interfaces/Bus Type 2X Ethernet (Rj45), 1X Sub-D (9-Pin)
Supports Protocol For Profinet Io
Automatic Detection Of Transmission Rate No
Transmission Rate, Max. 100 Mbit/S
Number Of Rj45 Ports 2
Number Of Fc (Fastconnect) Connections 2
Profinet Functions
Assignment Of The Ip Address, Supported Yes
Assignment Of The Device Name, Supported Yes
1. Interface
Interface Type Can According To Cia 303-1
Isolated Yes; 500 V Ac Or 707 V Dc
Interface Types
Number Of Ports 1
Design Of The Connection 9-Pin Sub D Socket
Can
Can Operating Modes Can Standard Can 2.0A/B; Canopen Manager / Slave Acc. To Cia
Specification Acc. To Cia Cia 301 & Cia 302
Transmission Rate, Min. 50 Kbit/S
Transmission Rate, Max. 1 000 Kbit/S
Max. Number Of Devices 126
Number Of Sdos In Parallel 16; Parallel
Number Of Pdos 512; Send / Receive
Services
— Node/Life-Guarding Yes
— Heartbeat Yes
— Sync Yes
2. Interface
Interface Type Profinet
Isolated Yes; 1 500 V Ac Or 2 250 V Dc
Interface Types
Rj 45 (Ethernet) Yes
Number Of Ports 2
Integrated Switch Yes
Protocols
Profinet Io Device Yes
Interrupts/Diagnostics/Status Information
Status Indicator Yes
Alarms Yes
Diagnostics Function Yes
Diagnostics Indication Led
Run Led Yes
Error Led Yes
Maint Led Yes
Link Led Yes
Rx/Tx Led Yes
Potential Separation
Potential Separation Exists Yes
Degree And Class Of Protection
Ip Degree Of Protection Ip20
Standards, Approvals, Certificates
Ecological Footprint
Environmental Product Declaration Yes
Global Warming Potential
— Global Warming Potential, (Total) [Co2 Eq] 50.8 Kg
— Global Warming Potential, (During Production) [Co2
Eq]14.4 Kg
— Global Warming Potential, (During Operation) [Co2
Eq]36.8 Kg
— Global Warming Potential, (After End Of Life Cycle)
[Co2 Eq]-0.52 Kg

Ambient Temperature During Operation

Horizontal Installation, Min. -40 °C; = Tmin (Incl. Condensation/Frost)
Horizontal Installation, Max. 70 °C; = Tmax
Ambient Temperature During Storage/Transportation
Min. -40 °C
Max. 85 °C
Altitude During Operation Relating To Sea Level
Installation Altitude Above Sea Level, Max. 5 000 M
Tmin ... Tmax At 1 140 Hpa ... 795 Hpa (-1 000 M ... +2 000 M) // Tmin ... (Tmax
- 10 K) At 795 Hpa ... 658 Hpa (+2 000 M ... +3 500 M) // Tmin ... (Tmax -20 K) Ambient Air Temperature-Barometric Pressure-Altitude
At 658 Hpa ... 540 Hpa (+3 500 M ... +5 000 M)
Relative Humidity
With Condensation, Tested In Accordance With Iec 60068-
2-38, Max.100 %; Incl. Condensation / Frost Permitted (No Commissioning Under
Condensation Conditions)
Resistance
Coolants And Lubricants
— Resistant To Commercially Available Coolants And
Lubricantsyes; Incl. Diesel And Oil Droplets In The Air
Use In Stationary Industrial Systems
— To Biologically Active Substances According To En
60721-3-3Yes; Class 3B2 Mold, Fungus And Dry Rot Spores (With The Exception Of Fauna);
Class 3B3 On Request
— To Chemically Active Substances According To En
60721-3-3Yes; In Preparation
— To Mechanically Active Substances According To En
60721-3-3Yes; Class 3S4 Incl. Sand, Dust, *
Use On Ships/At Sea
— To Biologically Active Substances According To En
60721-3-6Yes; Class 6B2 Mold And Fungal Spores (Excluding Fauna); Class 6B3 On
Request
— To Chemically Active Substances According To En
60721-3-6Yes; Class 6C3 (Rh < 75 %) Incl. Salt Spray Acc. To En 60068-2-52 (Severity
Degree 3); *
— To Mechanically Active Substances According To En
60721-3-6Yes; Class 6S3 Incl. Sand, Dust; *
Usage In Industrial Process Technology
— Against Chemically Active Substances Acc. To En
60654-4Yes; Class 3 (Excluding Trichlorethylene)
— Environmental Conditions For Process, Measuring
And Control Systems Acc. To Ansi/Isa-71.04Yes; Level Gx Group A/B (Excluding Trichlorethylene; Harmful Gas
Concentrations Up To The Limits Of En 60721-3-3 Class 3C4 Permissible); Level
Lc3 (Salt Spray) And Level Lb3 (Oil)
Remark
— Note Regarding Classification Of Environmental
Conditions Acc. To En 60721, En 60654-4 And
Ansi/Isa-71.04* The Supplied Plug Covers Must Remain In Place Over The Unused Interfaces
During Operation!
Conformal Coating
Coatings For Printed Circuit Board Assemblies Acc. To En
61086Yes; Class 2 For High Reliability
Protection Against Fouling Acc. To En 60664-3 Yes; Type 1 Protection
Military Testing According To Mil-I-46058C, Amendment 7 Yes; Discoloration Of Coating Possible During Service Life
Qualification And Performance Of Electrical Insulating
Compound For Printed Board Assemblies According To Ipc-
Cc-830Ayes; Conformal Coating, Class A

Dimensions

Width 70 Mm
Height 112 Mm
Depth 75 Mm
Weight S
Weight , Approx. 212 G
