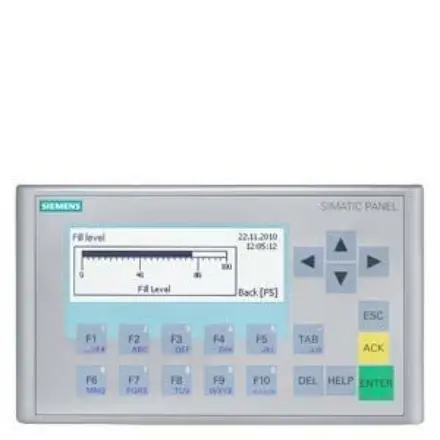

6AG1647-0AH11-2AX1 Siemens - SIPLUS HMI KP300 Basic mono PN, based on 6AV6647-0AH11-3AX1 with conformal coating, -25...+60 °C

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6AG1647-0AH11-2AX1
Product Description SIPLUS HMI KP300 Basic mono PN, based on 6AV6647-0AH11-3AX1 with conformal coating, -25...+60 °C
Product family SIPLUS Basic Panels (1st Generation)
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : EAR99H
Estimated dispatch time (Working Days) 45 Day/Days
Net Weight (kg) 0,375 Kg
Packaging Dimension 13,90 x 20,00 x 4,60
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4047618129507
UPC 195125326392
Commodity Code 85371091
LKZ_FDB/ CatalogID A&DSE/SIP ADD
Product Group 4574
Group Code R151
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 23.02.2022
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Supply Voltage

Type Of Supply Voltage Dc
Rated Value (Dc) 24 V
Permissible Range, Lower Limit (Dc) 19.2 V
Permissible Range, Upper Limit (Dc) 28.8 V
Input Current
Current Consumption (Rated Value) 0.1 A
Starting Current Inrush I²T 0.5 A²·S
Power
Active Power Input, Typ. 3 W
Processor
Processor Type Risc 32 Bit
Memory
Flash Yes
Ram Yes
Memory Available For User Data 1 Mbyte
Type Of Output
Acoustics
Buzzer No
Speaker No
Time Of Day
Clock
Hardware Clock (Real-Time) No
Software Clock Yes
Retentive No
Synchronizable Yes
Interfaces
Number Of Industrial Ethernet Interfaces 1
Number Of Rs 485 Interfaces 0
Number Of Rs 422 Interfaces 0
Number Of Rs 232 Interfaces 0
Number Of Usb Interfaces 0
Number Of 20 Ma Interfaces (Tty) 0
Number Of Parallel Interfaces 0
Number Of Other Interfaces 0
Number Of Sd Card Slots 0
With Software Interfaces No
Industrial Ethernet
Industrial Ethernet Status Led 2
Protocols
Profinet Yes
Supports Protocol For Profinet Io No
Irt No
Profibus No
Ethernet /Ip Yes
Mpi No
Protocols (Ethernet)
Tcp/Ip Yes
Dhcp Yes
Snmp Yes
Dcp Yes
Lldp Yes
Web Characteristics
Http No
Html No
Further Protocols
Can No
Modbus Yes; Modicon (Modbus Tcp/Ip)
Interrupts/Diagnostics/Status Information
Diagnoses
Diagnostic Information Readable No
Emc
Emission Of Radio Interference Acc. To En 55 011
Limit Class A, For Use In Industrial Areas Yes
Limit Class B, For Use In Residential Areas No
Degree And Class Of Protection
Ip (At The Front) Ip65
Ip (Rear) Ip20
Nema (Front)
Enclosure Type 4 At The Front Yes
Enclosure Type 4X At The Front Yes

Ambient Conditions

Suited For Indoor Use Yes
Suited For Outdoor Use No

Ambient Temperature During Operation

Operation (Vertical Installation)
— For Vertical Installation, Min. -25 °C; = Tmin
— For Vertical Installation, Max. 60 °C; = Tmax
Operation (Max. Tilt Angle)
— At Maximum Tilt Angle, Min. -25 °C; = Tmin
— At Maximum Tilt Angle, Max. 40 °C; = Tmax
Ambient Temperature During Storage/Transportation
Min. -25 °C
Max. 60 °C
Altitude During Operation Relating To Sea Level
Installation Altitude Above Sea Level, Max. 5 000 M
Ambient Air Temperature-Barometric Pressure-Altitude Tmin ... Tmax At 1 140 Hpa ... 795 Hpa (-1 000 M ... +2 000 M) // Tmin ... (Tmax
- 10 K) At 795 Hpa ... 658 Hpa (+2 000 M ... +3 500 M) // Tmin ... (Tmax -20 K)
At 658 Hpa ... 540 Hpa (+3 500 M ... +5 000 M)
Relative Humidity
With Condensation, Tested In Accordance With Iec 60068-
2-38, Max.100 %; Rh Incl. Condensation/Frost (No Commissioning When Condensation
Present), Horizontal At Vertical Mounting Position
Resistance
Coolants And Lubricants
— Resistant To Commercially Available Coolants And
Lubricantsyes; Incl. Diesel And Oil Droplets In The Air
Use In Stationary Industrial Systems
— To Biologically Active Substances According To En
60721-3-3Yes; Class 3B2 Mold, Fungus And Dry Rot Spores (With The Exception Of Fauna);
Class 3B3 On Request
— To Chemically Active Substances According To En
60721-3-3Yes; Class 3C4 (Rh < 75 %) Incl. Salt Spray Acc. To En 60068-2-52 (Severity
Degree 3); *
— To Mechanically Active Substances According To En
60721-3-3Yes; Class 3S4 Incl. Sand, Dust, *
Use On Ships/At Sea
— To Biologically Active Substances According To En
60721-3-6Yes; Class 6B2 Mold, Fungal And Dry Rot Spores (Excluding Fauna)
— To Chemically Active Substances According To En
60721-3-6Yes; Class 6C3 (Rh < 75 %) Incl. Salt Spray Acc. To En 60068-2-52 (Severity
Degree 3); *
— To Mechanically Active Substances According To En
60721-3-6Yes; Class 6S3 Incl. Sand, Dust; *
Usage In Industrial Process Technology
— Against Chemically Active Substances Acc. To En
60654-4Yes; Class 3 (Excluding Trichlorethylene)
— Environmental Conditions For Process, Measuring
And Control Systems Acc. To Ansi/Isa-71.04Yes; Level Gx Group A/B (Excluding Trichlorethylene; Harmful Gas
Concentrations Up To The Limits Of En 60721-3-3 Class 3C4 Permissible); Level
Lc3 (Salt Spray) And Level Lb3 (Oil)
Remark
— Note Regarding Classification Of Environmental
Conditions Acc. To En 60721, En 60654-4 And
Ansi/Isa-71.04* The Supplied Plug Covers Must Remain In Place Over The Unused Interfaces
During Operation!
Conformal Coating
Coatings For Printed Circuit Board Assemblies Acc. To En
61086Yes; Class 2 For High Reliability
Protection Against Fouling Acc. To En 60664-3 Yes; Type 1 Protection
Military Testing According To Mil-I-46058C, Amendment 7 Yes; Discoloration Of Coating Possible During Service Life
Qualification And Performance Of Electrical Insulating
Compound For Printed Board Assemblies According To Ipc-
Cc-830Ayes; Conformal Coating, Class A

Operating Systems

Proprietary Yes
Pre-Installed Operating System
Windows Ce No
Configuration / Header
Message Indicator Yes
Alarm System (Incl. Buffer And Acknowledgment) Yes
Process Value Display (Output) Yes
Process Value Default (Input) Possible Yes
Recipe Management Yes
Configuration Software
Step 7 Basic (Tia Portal) Yes; Via Integrated Wincc Basic (Tia Portal)
Step 7 Professional (Tia Portal) Yes; Via Integrated Wincc Basic (Tia Portal)
Wincc Flexible Compact No
Wincc Flexible Standard No
Wincc Flexible Advanced No
Wincc Basic (Tia Portal) Yes
Wincc Comfort (Tia Portal) Yes
Wincc Advanced (Tia Portal) Yes
Wincc Professional (Tia Portal) Yes
Languages
Online Languages
Number Of Online/Runtime Languages 5
Project Languages
Languages Per Project 32
Functionality Under Wincc (Tia Portal)
Libraries Yes
Applications/Options None
Web Browser No
Simatic Wincc Sm@Rtserver No
Task Planner
Time-Controlled No
Task-Controlled Yes
Help System Yes
Number Of Characters Per Info Text 320
Message System
Number Of Alarm Classes 32
Bit Messages Yes
— Number Of Bit Messages 200
Analog Messages Yes
— Number Of Analog Messages 15
System Messages Hmi Yes
System Event, More (Simatic S7, Sinumerik,
Simotion, ... )No
Number Of Characters Per Message 80
Number Of Process Values Per Message 8
Message Indicator Yes
Message Buffer
— Number Of Entries 256
— Circulating Buffer Yes
— Retentive Yes
— Maintenance-Free Yes
Recipe Management
Number Of Recipes 5
Data Records Per Recipe 20
Entries Per Data Record 20
Size Of Internal Recipe Memory 40 Kbyte
Recipe Memory Expandable No
Variables
Number Of Variables Per Device 250
Number Of Variables Per Screen 30
Limit Values Yes
Multiplexing Yes
Structures No
Arrays Yes
Images
Number Of Configurable Images 50
Permanent Window/Default Yes
Global Image Yes
Image Selection By Plc Yes
Image Number In The Plc Yes
Image Objects
Number Of Objects Per Image 30
Text Fields Yes
I/O Fields Yes
Graphic I/O Fields (Graphics List) Yes
Symbolic I/O Fields (Text List) Yes
Date/Time Fields Yes
Switches Yes
Buttons Yes
Graphic Display Yes
Icons Yes
Geometric Objects Yes
Complex Image Objects
Number Of Complex Objects Per Screen 5
Alarm View Yes
Trend View Yes
User View Yes
Status/Control No
Sm@Rtclient View No
Recipe View Yes
F(X) Trend View No
System Diagnostics View No
Media Player No
Bar Graphs Yes
Sliders No
Pointer Instruments No
Analog/Digital Clock No
Lists
Number Of Text Lists Per Project 150
Number Of Entries Per Text List 30
Number Of Graphics Lists Per Project 100
Number Of Entries Per Graphics List 30
Archiving
Number Of Archives Per Device 0
Security
Number Of User Groups 50
Number Of User Rights 32
Number Of Users 50
Password Export/Import No
Simatic Logon No
Character Sets
Keyboard Fonts
— Us English Yes
Transfer (Upload/Download)
Mpi/Profibus Dp No
Usb No
Ethernet Yes
Using External Storage Medium No
Process Coupling
S7-1200 Yes
S7-1500 Yes
S7-200 Yes
S7-300/400 Yes
Logo! Yes
Winac Yes
Sinumerik No
Simotion No
Allen Bradley (Ethernet/Ip) Yes
Allen Bradley (Df1) No
Mitsubishi (Mc Tcp/Ip) Yes
Mitsubishi (Fx) No
Omron (Fins Tcp) No
Omron (Link/Multilink) No
Modicon (Modbus Tcp/Ip) Yes
Modicon (Modbus) No
Service Tools/Configuration Aids
Backup/Restore Manually Yes
Backup/Restore Automatically No
Simulation Yes
Device Switchover Yes
Peripherals/Options
Printer No
Simatic Hmi Mm Memory Card: Multi Media Card No
Simatic Hmi Sd Memory Card: Secure Digital Memory Card No
Usb Memory No
Mechanics/Material
Enclosure Material (Front)
Plastic Yes
Aluminum No
Stainless Steel No

Dimensions

Width Of The Housing Front 165 Mm
Height Of Housing Front 97 Mm
Mounting Cutout, Width 149 Mm
Mounting Cutout, Height 82 Mm
Overall Depth 30 Mm
Weight S
Weight (Without Packaging) 0.25 Kg
Weight (With Packaging) 0.38 Kg
