Siemens

6AG1647-8BE72-4HA1

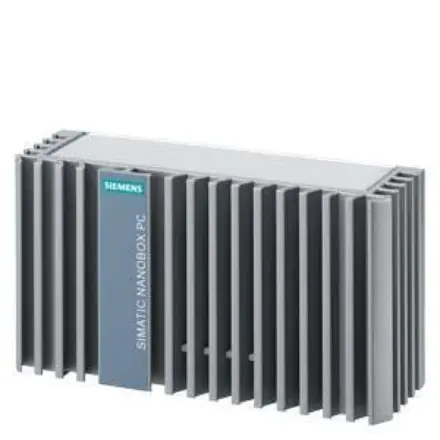

6AG1647-8BE72-4HA1 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6AG1647-8BE72-4HA1 Siemens

6AG1647-8BE72-4HA1 Siemens - SIPLUS IPC 227E ET based on 6ES7647-8BE72-7HA1 with conformal coating, -25…+60 °C, 1x display port; 2x 10/100/1000 Mbps Ethernet RJ45; 1x USB3.0, 3x USB2.0; CFast slot; 24 V DC industrial power supply Celeron E3845 ET (4C/4T) with TPM (not for China); 4 GB ET with NVRAM; box: basic with COM 1/2; Windows 10 IoT Enterprise LTSB 2016, 64-bit, MUI (en, de, fr, it, es) 60 GB SSD ET, not exchangeable without SIMATIC software

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6AG1647-8BE72-4HA1
Product Description SIPLUS IPC 227E ET based on 6ES7647-8BE72-7HA1 with conformal coating, -25…+60 °C, 1x display port; 2x 10/100/1000 Mbps Ethernet RJ45; 1x USB3.0, 3x USB2.0; CFast slot; 24 V DC industrial power supply Celeron E3845 ET (4C/4T) with TPM (not for China); 4 GB ET with NVRAM; box: basic with COM 1/2; Windows 10 IoT Enterprise LTSB 2016, 64-bit, MUI (en, de, fr, it, es) 60 GB SSD ET, not exchangeable without SIMATIC software
Product family SIPLUS IPC227E ET
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : 5A992
Estimated dispatch time (Working Days) 45 Day/Days
Net Weight (kg) 2,100 Kg
Packaging Dimension 6,00 x 19,10 x 10,00
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4047618113407
UPC Not available
Commodity Code 84715000
LKZ_FDB/ CatalogID A&DSE/SIP ADD
Product Group 4B99
Group Code R151
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 09.06.2015
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Supply Voltage

Type Of Supply Voltage 24 V Dc
Processor
Processor Type Intel Atom E3845
Graphic
Graphics Card Yes
Drives
Ssd Yes
Memory
Capacity Of Main Memory, Max. 4 Gbyte
Hardware Configuration
Slots
Number Of Pci Slots 0
Interfaces
Number Of Industrial Ethernet Interfaces 2; 2X Ethernet (Rj45)
Number Of Profinet Interfaces 1
Degree And Class Of Protection
Ip Degree Of Protection Ip40

Ambient Temperature During Operation

Min. -20 °C
Max. 60 °C

Operating Systems

Pre-Installed Operating System Windows 10 Iot Enterprise 2016 Ltsb, 64Bit, Mui

Dimensions

Width 191 Mm
Height 100 Mm
Depth 60 Mm
