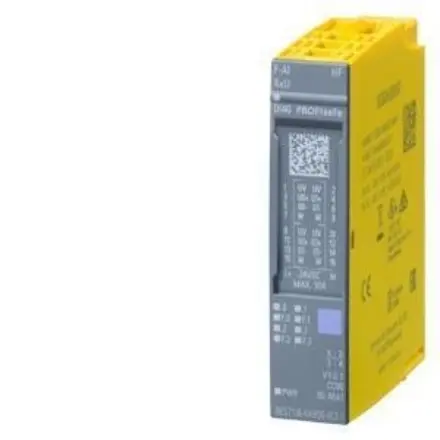

6AG2136-6AB00-1CA1 Siemens - SIPLUS ET 200SP F-AI 4xU 0..10 V HF rail based on 6ES7136-6AB00-0CA1, with conformal coating, -30…+60 °C, OT1 with ST1/2 (+70 °C für 10 minutes), fail-safe analog inputs, up to PL e (ISO 13849), up to SIL 3 (IEC 61508)

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6AG2136-6AB00-1CA1
Product Description SIPLUS ET 200SP F-AI 4xU 0..10 V HF rail based on 6ES7136-6AB00-0CA1, with conformal coating, -30…+60 °C, OT1 with ST1/2 (+70 °C für 10 minutes), fail-safe analog inputs, up to PL e (ISO 13849), up to SIL 3 (IEC 61508)
Product family SIPLUS extreme RAIL analog F-input modules
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : EAR99H
Estimated dispatch time (Working Days) 45 Day/Days
Net Weight (kg) 0,062 Kg
Packaging Dimension 6,90 x 7,50 x 3,20
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4047618124809
UPC Not available
Commodity Code 85389091
LKZ_FDB/ CatalogID A&DSE/SIP ADD
Product Group 4C03
Group Code R151
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 31.03.2020
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Product Function

I&M Data Yes; I&M0 To I&M3
Operating Mode
Cyclic Measurement Yes
Oversampling No
Msi No
Cir - Configuration In Run
Reparameterization Possible In Run No
Calibration Possible In Run No

Supply Voltage

Rated Value (Dc) 24 V
Permissible Range, Lower Limit (Dc) 19.2 V
Permissible Range, Upper Limit (Dc) 28.8 V
Reverse Polarity Protection Yes
Input Current
Current Consumption (Rated Value) 0.38 A
Current Consumption, Max. 0.4 A
Encoder Supply
24 V Encoder Supply
24 V Yes; Min. L+ (-1.5 V)
Short-Circuit Protection Yes
Output Current, Max. 300 Ma; Total Current Of All Encoders/Channels
Power
Power Available From The Backplane Bus 70 Mw
Power Loss
Power Loss , Typ. 2 W
Address Area
Address Space Per Module
Inputs 14 Byte; S7-300/400F Cpu, 13 Byte
Outputs 5 Byte; S7-300/400F Cpu, 4 Byte
Hardware Configuration
Automatic Encoding Yes
Electronic Coding Element Type H Yes

Analog Inputs

Number Of Analog Inputs 4
For Voltage Measurement 4
Permissible Input Voltage For Voltage Input (Destruction Limit),
Max.35 V
Input Ranges (Rated Values), Voltages
0 To +10 V Yes
— Input Resistance (0 To 10 V) 16 Kω
Cable Length
Shielded, Max. 200 M
Analog Value Generation For The Inputs
Measurement Principle Sigma Delta
Integration And Conversion Time/Resolution Per Channel
Resolution With Overrange (Bit Including Sign), Max. 16 Bit
Integration Time, Parameterizable Yes
Integration Time (Ms) 20 / 16,667
Interference Voltage Suppression For Interference
Frequency F1 In Hz50 / 60 Hz
Smoothing Of Measured Values
Number Of Smoothing Levels 7
Parameterizable Yes
Step: None Yes; 1X Conversion Cycle Time
Step: Low Yes; 2X / 4X Conversion Cycle Time
Step: Medium Yes; 8X / 16X Conversion Cycle Time
Step: High Yes; 32X / 64X Conversion Cycle Time
Average Value Filter Yes
Encoder
Connection Of Signal Encoders
For Voltage Measurement Yes
Errors/Accuracies
Linearity Error (Relative To Input Range), (+/-) 0.1 %
Temperature Error (Relative To Input Range), (+/-) 0.023 %/K
Repeat Accuracy In Steady State At 25 °C (Relative To Input
Range), (+/-)0.1 %
Operation Al Error Limit In Overall Temperature Range
Voltage, Relative To Input Range, (+/-) 2.6 %
Basic Error Limit (Operational Limit At 25 °C)
Voltage, Relative To Input Range, (+/-) 0.1 %
Interference Voltage Suppression For F = N X (F1 +/- 1 %), F1 = Interference Frequency
Series Mode Interference (Peak Value Of Interference <
Rated Value Of Input Range), Min.40 Db
Common Mode Voltage, Max. 10 V
Common Mode Interference, Min. 70 Db
Interrupts/Diagnostics/Status Information
Diagnostics Function Yes
Alarms
Diagnostic Alarm Yes
Limit Value Alarm No
Diagnoses
Monitoring The Supply Voltage Yes
Wire-Break Yes
Diagnostics Indication Led
Run Led Yes; Green Led
Error Led Yes; Red Led
Monitoring Of The Supply Voltage (Pwr-Led) Yes; Green Pwr Led
Channel Status Display Yes; Green Led
For Channel Diagnostics Yes; Red Led
For Module Diagnostics Yes; Green/Red Diag Led
Potential Separation
Potential Separation Channels
Between The Channels No
Between The Channels And Backplane Bus Yes
Between The Channels And The Power Supply Of The
Electronicsyes
Permissible Potential Difference
Between The Inputs (Ucm) 10 Vpp
Isolation
Isolation Tested With 750 V Dc (Type Test) And According To En 50155 (Routine Test)
Standards, Approvals, Certificates
Ecological Footprint
Environmental Product Declaration Yes
Global Warming Potential
— Global Warming Potential, (Total) [Co2 Eq] 88.3 Kg
— Global Warming Potential, (During Production) [Co2
Eq]13.1 Kg
— Global Warming Potential, (During Operation) [Co2
Eq]76.6 Kg
— Global Warming Potential, (After End Of Life Cycle)
[Co2 Eq]-1.37 Kg
Highest Safety Class Achievable In Safety Mode
Performance Level According To Iso 13849-1 Ple
Category According To Iso 13849-1 Cat. 4
Sil Acc. To Iec 61508 Sil 3
Sil In Accordance With En 50126, 50128, 50129 Sil 2; A Higher Safety Integrity Level Is Possible If Tested And Approved For The
Specific Application Under Consideration Of All Local Regulations.
Probability Of Failure (For Service Life Of 20 Years And Repair Time Of 100 Hours)
— Low Demand Mode: Pfdavg In Accordance With
Sil3< 5.00E-05
— High Demand/Continuous Mode: Pfh In Accordance
With Sil3< 1.00E-09 1/H
Railway Application
En 50121-3-2 Yes; Emc For Rail Vehicles
En 50121-4 Yes; Emc For Signal And Telecommunications Systems
En 50121-5 Yes; Emc For Fixed Installations And Railway Power Supply Equipment
En 50124-1 Yes; Railway Applications - Overvoltage Category Ov2; Pollution Degree Pd2;
Rated Surge Voltage Uni = 0.5 Kv; Unm = 24 V Dc
En 50125-1 Yes; Rail Vehicles - See Ambient Conditions
En 50125-2 Yes; Stationary Electrical Equipment - See Ambient Conditions
En 50125-3 Yes; Signal And Telecommunications Systems - See Ambient Conditions;
Vibrations And Shocks: Application Point Outside Of Tracks (1 M To 3 M Away
From Track)
En 50155 Yes; Rail Vehicles - Temperature Class Ot1, St1/St2, Horizontal Mounting
Position
En 61373 Yes; Rail Vehicles - Vibrations And Shocks: Category 1 Class A/B
Fire Protection Acc. To En 45545-2 Yes; For Proof Of Conformity, See Service & Support

Ambient Temperature During Operation

Horizontal Installation, Min. -30 °C; = Tmin (Incl. Condensation/Frost)
Horizontal Installation, Max. 60 °C
Vertical Installation, Min. -30 °C; = Tmin
Vertical Installation, Max. 50 °C; = Tmax
Altitude During Operation Relating To Sea Level
Installation Altitude Above Sea Level, Max. 2 000 M
Ambient Air Temperature-Barometric Pressure-Altitude Tmin ... Tmax At 1 140 Hpa ... 795 Hpa (-1 000 M ... +2 000 M)
Relative Humidity
With Condensation, Tested In Accordance With Iec 60068-
2-38, Max.100 %; Rh Incl. Condensation / Frost (No Commissioning In Bedewed State),
Horizontal Installation
Resistance
Coolants And Lubricants
— Resistant To Commercially Available Coolants And
Lubricantsyes; Incl. Diesel And Oil Droplets In The Air
Use In Stationary Industrial Systems
— To Biologically Active Substances According To En
60721-3-3Yes; Class 3B2 Mold, Fungus And Dry Rot Spores (With The Exception Of Fauna);
Class 3B3 On Request
— To Chemically Active Substances According To En
60721-3-3Yes; Class 3C4 (Rh < 75 %) Incl. Salt Spray Acc. To En 60068-2-52 (Severity
Degree 3); *
— To Mechanically Active Substances According To En
60721-3-3Yes; Class 3S4 Incl. Sand, Dust, *
— Against Mechanical Environmental Conditions Acc.
To En 60721-3-3Yes; Class 3M8 Using The Siplus Mounting Kit Et 200Sp (6Ag1193-6Aa00-
0Aa0)
Use On Land Craft, Rail Vehicles And Special-Purpose Vehicles
— To Biologically Active Substances According To En
60721-3-5Yes; Class 5B2 Mold, Fungus And Dry Rot Spores (With The Exception Of Fauna);
Class 5B3 On Request
— To Chemically Active Substances According To En
60721-3-5Yes; Class 5C3 (Rh < 75 %) Incl. Salt Spray Acc. To En 60068-2-52 (Severity
Degree 3); *
— To Mechanically Active Substances According To En
60721-3-5Yes; Class 5S3 Incl. Sand, Dust; *
— Against Mechanical Environmental Conditions Acc.
To En 60721-3-5Yes; Class 5M2 Using The Siplus Mounting Kit Et 200Sp (6Ag1193-6Aa00-
0Aa0)
— Against Mechanical Environmental Conditions In
Agriculture Acc. To Iso 15003Yes; Level 1 (Location Le) Using The Siplus Mounting Kit Et 200Sp
(6Ag1193-6Aa00-0Aa0)
Usage In Industrial Process Technology
— Against Chemically Active Substances Acc. To En
60654-4Yes; Class 3 (Excluding Trichlorethylene)
— Environmental Conditions For Process, Measuring
And Control Systems Acc. To Ansi/Isa-71.04Yes; Level Gx Group A/B (Excluding Trichlorethylene; Harmful Gas
Concentrations Up To The Limits Of En 60721-3-3 Class 3C4 Permissible); Level
Lc3 (Salt Spray) And Level Lb3 (Oil)
Remark
— Note Regarding Classification Of Environmental
Conditions Acc. To En 60721, En 60654-4 And
Ansi/Isa-71.04* The Supplied Plug Covers Must Remain In Place Over The Unused Interfaces
During Operation!
Conformal Coating
Coatings For Printed Circuit Board Assemblies Acc. To En
61086Yes; Class 2 For High Reliability
Protection Against Fouling Acc. To En 60664-3 Yes; Type 1 Protection
Electronic Equipment On Rolling Stock Acc. To En 50155 Yes; Class Pc2 Protective Coating Acc. To En 50155:2017
Military Testing According To Mil-I-46058C, Amendment 7 Yes; Discoloration Of Coating Possible During Service Life
Qualification And Performance Of Electrical Insulating
Compound For Printed Board Assemblies According To Ipc-
Cc-830Ayes; Conformal Coating, Class A

Dimensions

Width 15 Mm
Height 73 Mm
Depth 58 Mm
Weight S
Weight , Approx. 48 G
Other
Note: For Use In Railway Applications, Also Observe The Product Information "Siplus
Extreme Rail" A5E37661960A, Online Support Article 109736776
