Siemens

6AG2647-8BE72-1HA1

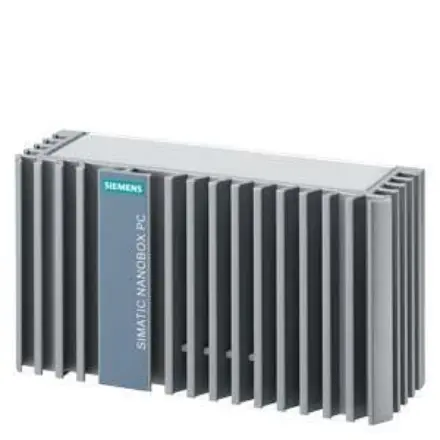

6AG2647-8BE72-1HA1 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6AG2647-8BE72-1HA1 Siemens

6AG2647-8BE72-1HA1 Siemens - SIPLUS IPC 227E ET rail based on 6ES7647-8BE72-7HA1 with conformal coating, -25…+60 °C, OT1 with ST1/2 (+70 °C für 10 minutes), 1x display port; 2x 10/100/1000 Mbps Ethernet RJ45; 1x USB3.0, 3x USB2.0; CFast slot; 24 V DC industrial power supply Celeron E3845 ET (4C/4T) with TPM (not for China); 4 GB ET with NVRAM; box: basic with COM 1/2; Windows 10 IoT Enterprise LTSB 2016, 64-bit, MUI (en, de, fr, it, es) 60 GB SSD ET, not exchangeable

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6AG2647-8BE72-1HA1
Product Description SIPLUS IPC 227E ET rail based on 6ES7647-8BE72-7HA1 with conformal coating, -25…+60 °C, OT1 with ST1/2 (+70 °C für 10 minutes), 1x display port; 2x 10/100/1000 Mbps Ethernet RJ45; 1x USB3.0, 3x USB2.0; CFast slot; 24 V DC industrial power supply Celeron E3845 ET (4C/4T) with TPM (not for China); 4 GB ET with NVRAM; box: basic with COM 1/2; Windows 10 IoT Enterprise LTSB 2016, 64-bit, MUI (en, de, fr, it, es) 60 GB SSD ET, not exchangeable
Product family SIPLUS IPC227E ET RAIL
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : 5A992
Estimated dispatch time (Working Days) 45 Day/Days
Net Weight (kg) 2,100 Kg
Packaging Dimension 6,00 x 19,10 x 10,00
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4047618119522
UPC Not available
Commodity Code 84715000
LKZ_FDB/ CatalogID A&DSE/SIP ADD
Product Group 4C01
Group Code R151
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 09.06.2015
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Supply Voltage

Type Of Supply Voltage 24 V Dc
Mains Buffering
Mains/Voltage Failure Stored Energy Time 20 Ms
Processor
Processor Type Intel Atom E3845
Chipset Soc
Graphic
Graphics Controller Integrated
Graphics Card Yes
Drives
Ssd Yes
Memory
Type Of Memory Ddr3L So-Dimm
Capacity Of Main Memory, Max. 4 Gbyte
Data Areas And Their Retentivity
Retentive Data Area (Incl. Timers, Counters, Flags), Max. 512 Kbyte; 128 Kb Can Be Stored In The Buffer Time; Optional
Hardware Configuration
Slots
Free Slots 1X Pcie (X1) (Optional)
Number Of Pci Slots 0
Number Of Pci Slots 1; Optional
Number Of Compact Flash Slots 1; Cfast
Interfaces
Number Of Industrial Ethernet Interfaces 2; 2X Ethernet (Rj45)
Number Of Profinet Interfaces 1
Usb Port 1X Usb 3.0 / 3X Usb 2.0
Connection For Keyboard/Mouse Usb / Usb
Serial Interface Without / 2X Com (Rs 232 / 422 / 485), Selectable In The Bios
Video Interfaces
Graphics Interface 1X Displayport
Industrial Ethernet
Industrial Ethernet Interface 2X Ethernet (Rj45)
— 100 Mbps Yes
— 1000 Mbps Yes
Integrated Functions
Monitoring Functions
Temperature Monitoring Yes
Watchdog Yes
Status Leds 1X Power, 3X User
Fan No
Monitoring Function Via Network Optional
Isolation
Isolation Tested With 750 V Dc (Type Test) And According To En 50155 (Routine Test)
Emc
Interference Immunity Against Discharge Of Static Electricity
Interference Immunity Against Discharge Of Static
Electricity±6 Kv Contact Discharge Acc. To Iec 61000-4-2; ±8 Kv Air Discharge Acc. To Iec
61000-4-2
Interference Immunity Against High-Frequency Electromagnetic Fields
Interference Immunity Against High Frequency Radiation 20 V/M For 80 ... 1 000 Mhz, 80 % Am Acc. To Iec 61000-4-3; 10 V/M For 1 ... 6
Ghz, 80 % Am Acc. To Iec 61000-4-3
Interference Immunity To Cable-Borne Interference
Interference Immunity On Supply Cables ±2 Kv Acc. To Iec 61000-4-4, Burst; ±1 Kv Acc. To Iec 61000-4-5, Surge
Symmetric; ±2 Kv Acc. To Iec 61000-4-5, Surge Asymmetric
Interference Immunity On Signal Cables >30M ±2 Kv Acc. To Iec 61000-4-5, Surge, Length > 30 M
Interference Immunity On Signal Cables < 30M ±1 Kv Acc. To Iec 61000-4-4; Burst; Length < 3 M; ±2 Kv Acc. To Iec 61000-4-4;
Burst; Length > 3 M
Interference Immunity Against Voltage Surge
Asymmetric Interference ±2 Kv Acc. To Iec 61000-4-5, Surge Asymmetric
Symmetric Interference ±1 Kv Acc. To Iec 61000-4-5, Surge Symmetric
Interference Immunity To Magnetic Fields
Interference Immunity To Magnetic Fields At 50 Hz 100 A/M; To Iec 61000-4-8
Emission Of Conducted And Non-Conducted Interference
Interference Emission Via Line/Ac Current Cables En 61000-6-3, En 61000-6-4, Cispr 22 Class B, Fcc Class A
Degree And Class Of Protection
Ip Degree Of Protection Ip40
Ip (Rear) Ip40
Standards, Approvals, Certificates
Railway Application
En 50121-3-2 Yes; Emc For Rail Vehicles
En 50121-4 Yes; Emc For Signal And Telecommunications Systems
En 50124-1 Yes; Railway Applications - Overvoltage Category Ov2; Pollution Degree Pd2;
Rated Surge Voltage Uni = 0.5 Kv; Unm = 24 V Dc
En 50125-1 Yes; Rail Vehicles - See Ambient Conditions
En 50125-2 Yes; Stationary Electrical Equipment - See Ambient Conditions
En 50125-3 Yes; Signal And Telecommunications Systems - See Ambient Conditions;
Vibrations And Shocks: Application Point Outside Of Tracks (1 M To 3 M Away
From Track)
En 50155 Yes; Rail Vehicles - Temperature Class Ot1, St1/St2, Horizontal Mounting
Position
En 61373 Yes; Rail Vehicles - Vibrations And Shocks: Category 1 Class A/B
Fire Protection Acc. To En 45545-2 Yes; For Proof Of Conformity, See Service & Support

Ambient Temperature During Operation

Min. -25 °C; = Tmin (Incl. Condensation/Frost)
Max. 60 °C; = Tmax; +70 °C For 10 Min (Ot1, St1/St2 Acc. To En 50155)
Ambient Temperature During Storage/Transportation
Min. -20 °C
Max. 60 °C
Altitude During Operation Relating To Sea Level
Installation Altitude Above Sea Level, Max. 2 000 M
Ambient Air Temperature-Barometric Pressure-Altitude Tmin ... Tmax At 1 140 Hpa ... 795 Hpa (-1 000 M ... +2 000 M)
Relative Humidity
With Condensation, Tested In Accordance With Iec 60068-
2-38, Max.100 %; Rh Incl. Condensation / Frost (No Commissioning In Bedewed State),
Horizontal Installation
Vibrations
Vibration Resistance During Operation Acc. To Iec 60068-
2-6Tested To Din Iec 60068-2-6: 10 Hz To 58 Hz: 0.075 Mm, 58 Hz To 200 Hz: 9.8
M/S² (1 G)
Shock Testing
Shock Load During Operation Tested According To Iec 60068-2-27: 150 M/S², 11 Ms
Resistance
Coolants And Lubricants
— Resistant To Commercially Available Coolants And
Lubricantsyes; Incl. Diesel And Oil Droplets In The Air
Use In Stationary Industrial Systems
— To Biologically Active Substances According To En
60721-3-3Yes; Class 3B2 Mold, Fungus And Dry Rot Spores (With The Exception Of Fauna);
Class 3B3 On Request
— To Chemically Active Substances According To En
60721-3-3Available Soon
— To Mechanically Active Substances According To En
60721-3-3Yes; Class 3S4 Incl. Sand, Dust, *
Use On Land Craft, Rail Vehicles And Special-Purpose Vehicles
— To Biologically Active Substances According To En
60721-3-5Yes; Class 5B2 Mold, Fungus And Dry Rot Spores (With The Exception Of Fauna);
Class 5B3 On Request
— To Chemically Active Substances According To En
60721-3-5In Preparation
— To Mechanically Active Substances According To En
60721-3-5Yes; Class 5S3 Incl. Sand, Dust; *
Usage In Industrial Process Technology
— Against Chemically Active Substances Acc. To En
60654-4In Preparation
— Environmental Conditions For Process, Measuring
And Control Systems Acc. To Ansi/Isa-71.04In Preparation
Remark
— Note Regarding Classification Of Environmental
Conditions Acc. To En 60721, En 60654-4 And
Ansi/Isa-71.04* The Supplied Plug Covers Must Remain In Place Over The Unused Interfaces
During Operation!
Conformal Coating
Coatings For Printed Circuit Board Assemblies Acc. To En
61086Yes; Class 2 For High Reliability
Protection Against Fouling Acc. To En 60664-3 Yes; Type 1 Protection
Electronic Equipment On Rolling Stock Acc. To En 50155 Yes; Class Pc2 Protective Coating Acc. To En 50155:2017
Military Testing According To Mil-I-46058C, Amendment 7 Yes; Discoloration Of Coating Possible During Service Life
Qualification And Performance Of Electrical Insulating
Compound For Printed Board Assemblies According To Ipc-
Cc-830Ayes; Conformal Coating, Class A

Operating Systems

Pre-Installed Operating System Windows 10 Iot Enterprise 2019 Ltsc, 64 Bit, Mui
Without Operating System Yes; Optional
Pre-Installed Operating System
Windows 7 Yes; Ultimate 32 Bit Or 64 Bit
Windows 10 Enterprise Yes; Windows 10 Enterprise 2016 Ltsb, 64 Bit, Mui
Software
Simatic Software Optionally With Pre-Installed Simatic Wincc Rt Advanced / Software
Control Ler Cpu 1500S Software Bundle

Dimensions

Width 191 Mm
Height 100 Mm
Depth 60 Mm
Other
Note: For Use In Railway Applications, Also Observe The Product Information "Siplus
Extreme Rail" A5E37661960A, Online Support Article 109736776
