Siemens

6AG4021-0AB12-1BA0

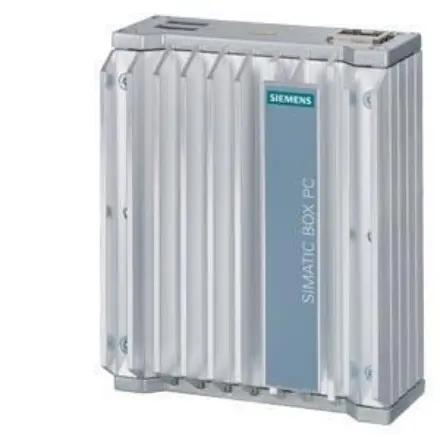

6AG4021-0AB12-1BA0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6AG4021-0AB12-1BA0 Siemens

6AG4021-0AB12-1BA0 Siemens - SIMATIC IPC127E; Atom E3940 (4C/4T), 4 GB RAM; Extended version; 3x Ethernet RJ45, 4x USB3.0; Windows 10 Enterprise LTSB 2016, 64 bit, MUI (en, de, fr, it, es); 64 GB SSD; without mounting accessories

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6AG4021-0AB12-1BA0
Product Description SIMATIC IPC127E; Atom E3940 (4C/4T), 4 GB RAM; Extended version; 3x Ethernet RJ45, 4x USB3.0; Windows 10 Enterprise LTSB 2016, 64 bit, MUI (en, de, fr, it, es); 64 GB SSD; without mounting accessories
Product family SIMATIC IPC127E
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : 5A992
Estimated dispatch time (Working Days) 15 Day/Days
Net Weight (kg) 0,512 Kg
Packaging Dimension 14,10 x 19,60 x 5,20
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4034106032487
UPC 804766805455
Commodity Code 84715000
LKZ_FDB/ CatalogID IC10
Product Group 4B06
Group Code R133
Country of origin China
Compliance with the substance restrictions according to RoHS directive Since: 11.12.2018
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead monoxide (lead oxide) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | 4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): 4,4'-isopropylidenediphenol (Bisphenol A, BPA) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Supply Voltage

Type Of Supply Voltage 24 V Dc
Mains Buffering
Mains/Voltage Failure Stored Energy Time 5 Ms
Processor
Processor Type Intel Atom E3940, 1.6 Ghz, 4 Cores
Graphic
Graphics Card Yes
Drives
Ssd Yes; 64 Gb
Memory
Type Of Memory Ddr4
Main Memory 4 Gb Ram
Capacity Of Main Memory, Max. 4 Gbyte
Hardware Configuration
Slots
Number Of Pci Slots 0
Interfaces
Number Of Industrial Ethernet Interfaces 3; 3X Ethernet (Rj45)
Number Of Profinet Interfaces 3
Usb Port 4X Usb 3.0
Connection For Keyboard/Mouse Usb / Usb
Video Interfaces
Graphics Interface 1X Displayport
Industrial Ethernet
Industrial Ethernet Interface 3X Ethernet (Rj45)
— 100 Mbps Yes
— 1000 Mbps Yes
Protocols
Protocols (Ethernet)
Tcp/Ip Yes
Integrated Functions
Monitoring Functions
Temperature Monitoring Yes
Watchdog Yes
Status Leds 1X Power, 3X User
Fan No
Emc
Interference Immunity Against Discharge Of Static Electricity
Interference Immunity Against Discharge Of Static
Electricity±6 Kv Contact Discharge Acc. To Iec 61000-4-2; ±8 Kv Air Discharge Acc. To Iec
61000-4-2
Interference Immunity Against High-Frequency Electromagnetic Fields
Interference Immunity Against High Frequency Radiation 10 V/M, 80 Mhz To 2 Ghz, 80 % Am Acc. To Iec 61000-4-3; 3 V/M, 2 Ghz To
2.7 Ghz, 80 % Am Acc. To Iec 61000-4-3; 10 V, 10 Khz To 80 Mhz, 80 % Am
Acc. To Iec 61000-4-6
Interference Immunity To Cable-Borne Interference
Interference Immunity On Supply Cables ±2 Kv (According To Iec 61000-4-4; Burst); ±0,5 Kv (According To Iec 61000-4-
5; Surge Pulse/Line To Line); ±1 Kv (According To Iec 61000-4-5; Surge Pulse/Line
To Ground)
Interference Immunity On Signal Cables >30M ±2 Kv Acc. To Iec 61000-4-5, Surge, Length > 30 M
Interference Immunity On Signal Cables < 30M ±1 Kv Acc. To Iec 61000-4-4; Burst; Length < 3 M; ±2 Kv Acc. To Iec 61000-4-4;
Burst; Length > 3 M
Interference Immunity To Magnetic Fields
Interference Immunity To Magnetic Fields At 50 Hz 100 A/M; To Iec 61000-4-8
Emission Of Conducted And Non-Conducted Interference
Interference Emission Via Line/Ac Current Cables En 61000-6-4:2007 +A1:2011 (Industrial Environments), En 61000-6-3:2007
+A1:2011 (Residential Environments), Cispr 22 Class B, Fcc Class A
Degree And Class Of Protection
Ip Degree Of Protection Ip40
Standards, Approvals, Certificates
Ce Mark Yes
Ul Approval Yes
Dust Protection Protection Against Foreign Bodies > 1 Mm

Ambient Temperature During Operation

Min. 0 °C
Max. 55 °C
Ambient Temperature During Storage/Transportation
Min. -20 °C
Max. 70 °C
Relative Humidity
Relative Humidity 5 ... 85 % At 30 °C, No Condensation
Vibrations
Vibration Resistance During Operation Acc. To Iec 60068-
2-6Tested According To Iec 6068-2-6; 5 Hz To 9 Hz: 3.5 Mm, 9 Hz To 500 Hz: 9,8
M/S²
Shock Testing
Shock Load During Operation Tested According To Iec 60068-2-27: 150 M/S², 11 Ms

Operating Systems

Pre-Installed Operating System Windows 10 Enterprise 2016 Ltsb, 64 Bit, Mui
Pre-Installed Operating System
Windows 10 Enterprise Yes; Windows 10 Enterprise 2016 Ltsb, 64 Bit, Mui

Dimensions

Width 85 Mm
Height 104 Mm
Depth 41 Mm
