Siemens

6AG4025-0CF30-3AA0

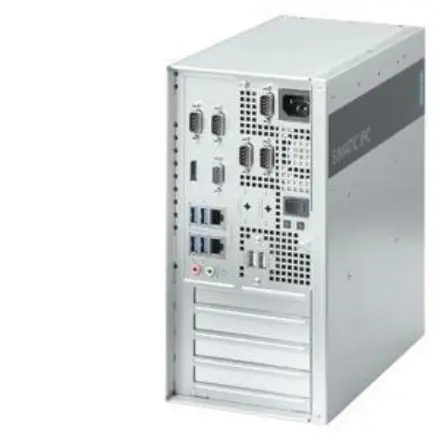

6AG4025-0CF30-3AA0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6AG4025-0CF30-3AA0 Siemens

6AG4025-0CF30-3AA0 Siemens - SIMATIC IPC527G (Box PC); 2x Gigabit Ethernet (IE/PN); 1x display port, 1x VGA; 4x USB3.0; 2x RS232/485/422 (can be selected); 100/240 V AC power supply Core i5-6500 (4C/4T, 3.2 (3.6) GHz, 6 MB cache) 512 GB SSD 16 GB DDR4 Windows 10 Enterprise 2016 LTSB MUI (de,en,fr,es,it), 64 bit For Pentium/Core i5; 1 x PCIe x16 Without specific expansions

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6AG4025-0CF30-3AA0
Product Description SIMATIC IPC527G (Box PC); 2x Gigabit Ethernet (IE/PN); 1x display port, 1x VGA; 4x USB3.0; 2x RS232/485/422 (can be selected); 100/240 V AC power supply Core i5-6500 (4C/4T, 3.2 (3.6) GHz, 6 MB cache) 512 GB SSD 16 GB DDR4 Windows 10 Enterprise 2016 LTSB MUI (de,en,fr,es,it), 64 bit For Pentium/Core i5; 1 x PCIe x16 Without specific expansions
Product family SIMATIC IPC527G
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations ECCN : 5A992 / AL : N
Estimated dispatch time (Working Days) 15 Day/Days
Net Weight (kg) 5,000 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN Not available
UPC 195125030206
Commodity Code 84715000
LKZ_FDB/ CatalogID ST80.1
Product Group 4C79
Group Code R133
Country of origin China
Compliance with the substance restrictions according to RoHS directive Since: 19.07.2019
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Supply Voltage

Type Of Supply Voltage 100/240V Ac (Autorange) 50/60 Hz
Line Frequency
Rated Value 50 Hz Yes
Rated Value 60 Hz Yes
Processor
Processor Type Core I7-6700 (4C/8T, 3.4 (4.0) Ghz, 8 Mb Cache); Core I5-6500 (4C/4T, 3.2
(3.6) Ghz, 6 Mb Cache); Pentium G4400 (2C/2T, 3.3 Ghz, 3 Mb Cache)
Chipset Intel H110
Graphic
Graphics Controller Onboard Intel Hd Graphics 530/510 Integrated In Processor
Drives
Hard Disk 1 Tb Hdd
Ssd Yes; Optional
Memory
Type Of Memory Ddr4-2133 So-Dimm
Main Memory 4 / 8 / 16 Gb, Supports Up To 32 Gb
Capacity Of Main Memory, Max. 32 Gbyte
Hardware Configuration
Slots
Free Slots 1X Pcie (X16), Optional 1X Pcie (X1), 2X Pci Additionally
Number Of Pci Slots 2; Optional
Number Of Pci Slots 2; Optional
Interfaces
Number Of Industrial Ethernet Interfaces 3; 3X Gigabit Ethernet (Ie/Pn), Rj45 Optional; 2X Gigabit Ethernet (Ie/Pn),
Rj45 Basic Configuration
Number Of Profinet Interfaces 3; 2 Ports Base Configuration, 3 Ports Optional
Usb Port 4X Usb 3.0, 1X Usb 2.0 Internal, 2X Usb 2.0 Optional
Connection For Keyboard/Mouse Usb / Usb
Serial Interface 2X Rs 232 / 485 / 422 Combined, 2X Rs 232 Optional
Multimedia
Audio In/Out Yes
Microphone In Yes
Video Interfaces
Graphics Interface 1X Displayport, 1X Vga
Industrial Ethernet
Industrial Ethernet Interface 2X Ethernet (Rj45), 1X Ethernet (Rj45) Additional Option
— 100 Mbps Yes
— 1000 Mbps Yes
Integrated Functions
Monitoring Functions
Status Leds Power, Hdd
Emc
Interference Immunity Against Discharge Of Static Electricity
Interference Immunity Against Discharge Of Static
Electricity±6 Kv Contact Discharge Acc. To Iec 61000-4-2; ±8 Kv Air Discharge Acc. To Iec
61000-4-2
Degree And Class Of Protection
Ip (At The Front) Ip20
Ip (Rear) Ip20
Standards, Approvals, Certificates
Ce Mark Yes
Csa Approval Yes; No. 61010-1-12, No. 61010-2-201
Ul Approval Yes
Culus Yes; Ul 61010-1, Ul 61010-2-201
Rcm (Formerly C-Tick) Yes
Kc Approval Yes
Eac (Formerly Gost-R) Yes
Fcc Yes

Ambient Temperature During Operation

Min. 0 °C
Max. 45 °C
Ambient Temperature During Storage/Transportation
Min. -20 °C
Max. 60 °C
Relative Humidity
Relative Humidity 8 ... 85 % At 30 °C, No Condensation
Vibrations
Vibration Resistance During Operation Acc. To Iec 60068-
2-6Tested According To Din Iec 60068-2-6: 10 Hz To 58 Hz: 0.0375 Mm, 58 Hz To
200 Hz: 4.9 M/S²
Shock Testing
Shock Load During Operation Tested In Accordance With Iec 60068-2-27: With Ssd: 150 M/S², 11 Ms; With
Hdd: 9.8 M/S², 20 Ms

Operating Systems

Pre-Installed Operating System Windows 7 Ultimate (Multi-Language) 32-Bit / 64-Bit; Windows 10 Enterprise
2016 Ltsb
Additional Info On Operating System Multi-Language User Interface (Mui): 5 Languages (English, German, French,
Spanish, Italian)
Without Operating System Yes
Pre-Installed Operating System
Windows 7 Yes; Ultimate 32 Bit Or 64 Bit
Windows 10 Yes; Windows 10 Enterprise 2016 Ltsb, 64 Bit, Mui

Dimensions

Width 260 Mm
Height 135 Mm
Depth 225 Mm
