Description for 6AV2145-8GB00-0AA0 Siemens

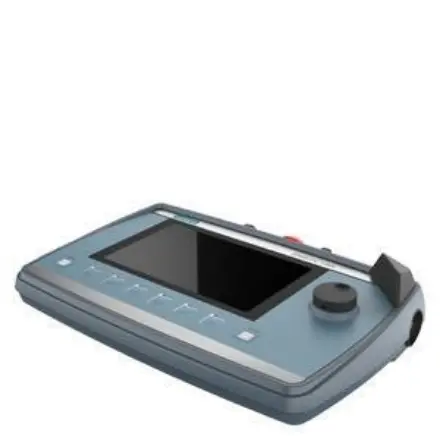

6AV2145-8GB00-0AA0 Siemens - SIMATIC HMI KTP700F Mobile HW, 7.0" TFT display, 800 x 480 pixel,16m colors key and touch operation, 6 function keys, 2 illuminated push-buttons, 1x PROFINET/Industrial Ethernet interface, 1x multimedia card, 1x USB, Key-operated switch, acknowledgement switch, emergency stop/stop button configurable from WinCC Comfort V15, handwheel

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6AV2145-8GB00-0AA0
Product Description SIMATIC HMI KTP700F Mobile HW, 7.0" TFT display, 800 x 480 pixel,16m colors key and touch operation, 6 function keys, 2 illuminated push-buttons, 1x PROFINET/Industrial Ethernet interface, 1x multimedia card, 1x USB, Key-operated switch, acknowledgement switch, emergency stop/stop button configurable from WinCC Comfort V15, handwheel
Product family Mobile Panels 2nd Generation
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : 9N9999
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 1,500 Kg
Packaging Dimension 23,50 x 31,30 x 13,10
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4047618096335
UPC 804766752124
Commodity Code 85371091
LKZ_FDB/ CatalogID ST80.1F
Product Group 4E01
Group Code R141
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 15.10.2018
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead monoxide (lead oxide) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | 4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): 4,4'-isopropylidenediphenol (Bisphenol A, BPA) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | Dodecachloropentacyclo[12... > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™) covering any of its individual anti- and syn-isomers or any combination thereof Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | lblREACHCode0237 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): lblREACHCode0237 Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Supply Voltage

Type Of Supply Voltage Dc
Rated Value (Dc) 24 V
Permissible Range, Lower Limit (Dc) 19.2 V
Permissible Range, Upper Limit (Dc) 28.8 V
Memory
Flash Yes
Ram Yes
Memory Available For User Data 12 Mbyte
Type Of Output
Power Led No
Led For Safe No
Led For Communication No
Led For Battery No
Vibrations No
Time Of Day
Clock
Hardware Clock (Real-Time) Yes
Retentive Yes
Synchronizable Yes
Interfaces
Number Of Industrial Ethernet Interfaces 1
Number Of Profinet Interfaces 1
Number Of Rs 485 Interfaces 0
Number Of Rs 422 Interfaces 0
Number Of Rs 232 Interfaces 0
Number Of Usb Interfaces 1; Usb 2.0
Number Of Wireless Interfaces 0
Number Of Sd Card Slots 1
Protocols
Profinet Yes
Supports Protocol For Profinet Io Yes
Profisafe Yes
Profibus No
Ethernet /Ip Yes
Mpi No
Protocols (Ethernet)
Tcp/Ip Yes
Dhcp Yes
Snmp Yes
Dcp Yes
Lldp Yes
Web Characteristics
Http Yes
Https Yes
Html Yes
Xml No
Css Yes
Active X No
Javascript Yes
Java Vm No
Further Protocols
Modbus Yes
Other Bus Systems No
Communication Functions / Header
Wireless Communication
Supported Standards
— Radio Standard Wlan 802.11 No
— Bluetooth Radio Standard No
Degree And Class Of Protection
Ip65 (All-Round) Yes
Standards, Approvals, Certificates
Ce Mark Yes
Ul Approval Yes
Culus Yes
Fm Approval No
Rcm (Formerly C-Tick) Yes
Kc Approval No
Eac (Formerly Gost-R) Yes
Suitable For Safety Functions Yes
Marine Approval No
Highest Safety Class Achievable In Safety Mode
Performance Level According To Iso 13849-1 Ple
Sil Acc. To Iec 61508 Sil 3
Use In Hazardous Areas
Atex Zone 2 No
Atex Zone 22 No
Iecex Zone 2 No
Iecex Zone 22 No
Culus Class I Zone 1 No
Culus Class I Zone 2, Division 2 No
Culus Class Ii Division 2 No
Fm Class I Division 2 No
Fm Class Ii Division 2 No
Marine Approval
Germanischer Lloyd (Gl) Yes
Polski Rejestr Statkow (Prs) No

Ambient Conditions

Free Fall
Fall Height, Max. 1.2 M

Ambient Temperature During Operation

Min. 0 °C
Max. 45 °C
Ambient Temperature During Storage/Transportation
Min. -20 °C
Max. 60 °C
Relative Humidity
Operation, Max. 90 %

Operating Systems

Pre-Installed Operating System
Windows Ce Yes
Configuration / Header
Message Indicator Yes
Alarm System (Incl. Buffer And Acknowledgment) Yes
Process Value Display (Output) Yes
Process Value Default (Input) Possible Yes
Recipe Management Yes
Configuration Software
Step 7 Basic (Tia Portal) No
Step 7 Professional (Tia Portal) No
Wincc Flexible Compact No
Wincc Flexible Standard No
Wincc Flexible Advanced No
Wincc Basic (Tia Portal) No
Wincc Comfort (Tia Portal) Yes
Wincc Advanced (Tia Portal) Yes
Wincc Professional (Tia Portal) Yes
Languages
Online Languages
Number Of Online/Runtime Languages 32
Project Languages
Languages Per Project 32
Functionality Under Wincc (Tia Portal)
Libraries Yes
Applications/Options
Web Browser Yes
Pocket Word No
Pocket Excel No
Pdf Viewer Yes
Media Player No
Simatic Wincc Sm@Rtserver Yes
Simatic Wincc Audit Yes
Number Of Visual Basic Scripts Yes
Task Planner
Time-Controlled Yes
Task-Controlled Yes
Help System
Number Of Characters Per Info Text 500
Multiproject
Number Of Projects (Internal) 0
Number Of Projects (External) 0
Message System
Number Of Alarm Classes 32
Bit Messages
— Number Of Bit Messages 4 000
Analog Messages
— Number Of Analog Messages 200
S7 Alarm Number Procedure Yes
System Messages Hmi Yes
System Event, More (Simatic S7, Sinumerik,
Simotion, ... )Yes
Number Of Characters Per Message 80
Number Of Process Values Per Message 8
Acknowledgment Groups Yes
Message Indicator Yes
Message Buffer
— Number Of Entries 1 024
— Circulating Buffer Yes
— Retentive Yes
— Maintenance-Free Yes
Recipe Management
Number Of Recipes 300
Data Records Per Recipe 500
Entries Per Data Record 1 000
Size Of Internal Recipe Memory 2 Mbyte
Recipe Memory Expandable Yes
Variables
Number Of Variables Per Device 2 048
Number Of Variables Per Screen 400
Limit Values Yes
Multiplexing Yes
Structures Yes
Arrays Yes
Images
Number Of Configurable Images 500
Permanent Window/Default Yes
Global Image Yes
Image Selection By Plc Yes
Image Number In The Plc Yes
Image Objects
Number Of Objects Per Image 400
Text Fields Yes
I/O Fields Yes
Graphic I/O Fields (Graphics List) Yes
Symbolic I/O Fields (Text List) Yes
Date/Time Fields Yes
Switches Yes
Graphic Display Yes
Icons Yes
Geometric Objects Yes
Complex Image Objects
Number Of Complex Objects Per Screen 20
Alarm View Yes
Trend View Yes
User View Yes
Status/Control Yes
Sm@Rtclient View Yes
Recipe View Yes
F(X) Trend View Yes
System Diagnostics View Yes
Media Player Yes
Bar Graphs Yes
Sliders Yes
Pointer Instruments Yes
Analog/Digital Clock Yes
Lists
Number Of Text Lists Per Project 500
Number Of Entries Per Text List 500
Number Of Graphics Lists Per Project 500
Number Of Entries Per Graphics List 500
Archiving
Number Of Archives Per Device 50
Number Of Entries Per Archive 20 000
Message Archive Yes
Process Value Archive Yes
Archiving Methods
— Sequential Archive Yes
— Short-Term Archive Yes
Memory Location
— Memory Card Yes
— Usb Memory Yes
— Ethernet Yes
Data Storage Format
— Csv Yes
— Txt No
— Rdb Yes
Security
Number Of User Groups 50
Number Of User Rights 32
Number Of Users 50
Password Export/Import Yes
Simatic Logon Yes
Logging Through Printer
Alarms Yes
Electronic Print To File Yes; Pdf, Html
Character Sets
Keyboard Fonts
— Us English Yes
Transfer (Upload/Download)
Mpi/Profibus Dp No
Usb No
Ethernet Yes
Wireless Lan No
Using External Storage Medium No
Process Coupling
S7-1200 Yes
S7-1500 Yes
S7-200 Yes
S7-300/400 Yes
Logo! Yes
Winac No
Sinumerik Yes
Simotion Yes
Allen Bradley (Ethernet/Ip) Yes
Allen Bradley (Df1) No
Mitsubishi (Mc Tcp/Ip) Yes
Mitsubishi (Fx) No
Omron (Fins Tcp) Yes
Omron (Link/Multilink) No
Modicon (Modbus Tcp/Ip) Yes
Modicon (Modbus) No
Service Tools/Configuration Aids
Backup/Restore Manually Yes
Backup/Restore Automatically Yes
Simulation Yes
Device Switchover Yes
Peripherals/Options
Printer Yes
Simatic Hmi Mm Memory Card: Multi Media Card Yes
Simatic Hmi Sd Memory Card: Secure Digital Memory Card Yes
Usb Memory Yes
Network Camera Yes
Additional Software Components Loadable Yes; Simatic Options
Mechanics/Material
Enclosure Material (Front)
Plastic Yes
Aluminum No
Stainless Steel No
Weight S
Weight (Without Packaging) 1.3 Kg
Weight (With Packaging) 1.8 Kg

Documentation
