Siemens

6AV7230-0CA20-0CA0

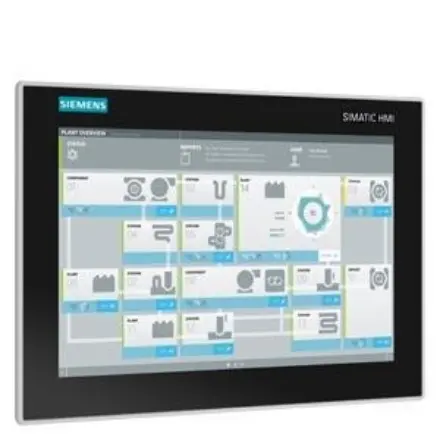

6AV7230-0CA20-0CA0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6AV7230-0CA20-0CA0 Siemens

6AV7230-0CA20-0CA0 Siemens - SIMATIC IPC377E (Basicpanel PC) 12" Touch; Celeron N3160 (4C/4T); 4 GB RAM; 256 GB SSD; 1x Display-Port Graphic; 1x VGA-Port Graphic; 2x 10/100/1000 MBit/s Ethernet RJ45; 2x USB 3.0; 2x USB 2.0; 4x serial Ports (COM); 1x mPCIe-Slot; 1x mSATA-Slot; w/o operating system; DC 24V power supply; panel mounting

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6AV7230-0CA20-0CA0
Product Description *** no longer available *** SIMATIC IPC377E (basic panel PC) 12" Touch; Celeron N3160 (4C/4T); 4 GB RAM; 256 GB SSD; 1x display port graphic; 1x VGA port graphic; 2x 10/100/1000 Mbps Ethernet RJ45; 2x USB 3.0; 2x USB 2.0; 4x serial ports (COM); 1x mPCIe slot; 1x mSATA slot; without operating system; 24 V DC power supply; built-in unit
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
PLM Effective Date Product is cancelled since: 25.04.2022
Notes Sucessor:successor: IPC377G (6AV7231-0....-...0) This product is a Spare Part, please visit the Spares & Service section for more information If you need assistance please contact our local Siemens office

Delivery information

Export Control Regulations ECCN : 5A992 / AL : N
Estimated dispatch time (Working Days) On request
Net Weight (kg) 4,775 Kg
Packaging Dimension 30,40 x 40,30 x 23,30
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4034106031251
UPC 804766710674
Commodity Code 84714100
LKZ_FDB/ CatalogID ST80E
Product Group X0J9
Group Code R133
Country of origin China
Compliance with the substance restrictions according to RoHS directive Since: 15.12.2017
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | 1,2-dimethoxyethane,... CAS-No. 110-71-4 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): 1,2-dimethoxyethane,ethylene glycol dimethyl ether (EGDME) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Supply Voltage

Type Of Supply Voltage 24 V Dc
Mains Buffering
Mains/Voltage Failure Stored Energy Time 10 Ms
Processor
Processor Type Intel Celeron N3160
Graphic
Graphics Card Yes
Drives
Hard Disk 1 Tb Hdd
Memory
Type Of Memory Ddr3L
Main Memory 4 Gb (Pre-Installed)
Capacity Of Main Memory, Max. 8 Gbyte
Hardware Configuration
Slots
Free Slots 1X Mpcie (Half-Size), 1X Msata (Full-Size)
Number Of Pci Slots 0
Interfaces
Number Of Industrial Ethernet Interfaces 2; 2X Rj45 (Independent)
Number Of Profinet Interfaces 2
Usb Port 2X Usb 2.0, 2X Usb 3.0 (High Current)
Video Interfaces
Graphics Interface 1X Displayport, 1X Vga
Industrial Ethernet
Industrial Ethernet Interface 2X Ethernet (Rj45)
— 100 Mbps Yes
— 1000 Mbps Yes
Protocols
Protocols (Ethernet)
Tcp/Ip Yes
Integrated Functions
Monitoring Functions
Temperature Monitoring Yes
Watchdog Yes
Status Leds Power, Hdd
Fan No
Emc
Interference Immunity Against Discharge Of Static Electricity
Interference Immunity Against Discharge Of Static
Electricity±6 Kv Contact; ±8 Kv Air (To Iec 1000-4-2; Esd)
Interference Immunity Against High-Frequency Electromagnetic Fields
Interference Immunity Against High Frequency Radiation 10 V/M For 80 ... 1 000 Mhz, 80 % Am According To Iec 61000-4-3; 3 V/M For
1.4 ... 6 Ghz, 80 % Am According To Iec 61000-4-3
Interference Immunity To Cable-Borne Interference
Interference Immunity On Supply Cables ±2 Kv (According To Iec 61000-4-4, Burst); ±1 Kv (According To Iec 61000-4-5,
Surge Pulse/Line To Line); ±2 Kv (According To Iec 61000-4-5, Surge Pulse/Line To
Ground)
Interference Immunity On Signal Cables >30M ±2 Kv Acc. To Iec 61000-4-4, Burst; ±2 Kv Acc. To Iec 61000-4-5, Surge
Interference Immunity On Signal Cables < 30M ±1 Kv Acc. To Iec 61000-4-4, Burst
Interference Immunity Against Voltage Surge
Asymmetric Interference ±2 Kv Acc. To Iec 61000-4-5, Surge Asymmetric
Symmetric Interference ±1 Kv Acc. To Iec 61000-4-5, Surge Symmetric
Interference Immunity To Magnetic Fields
Interference Immunity To Magnetic Fields At 50 Hz 100 A/M; To Iec 61000-4-8
Degree And Class Of Protection
Ip Degree Of Protection Ip40
Ip (At The Front) Ip65
Ip (Rear) Ip40
Standards, Approvals, Certificates
Ce Mark Yes
Ul Approval Yes
Culus Yes
Rcm (Formerly C-Tick) Yes
Eac (Formerly Gost-R) Yes
Fcc Yes
Dust Protection Protection Against Foreign Bodies > 1 Mm

Ambient Temperature During Operation

Min. 0 °C
Max. 45 °C
Ambient Temperature During Storage/Transportation
Min. -20 °C
Max. 60 °C
Relative Humidity
Relative Humidity Tested According To Iec 60068-2-78, Iec 60068-2-30: Operation: 5 % To 85 %
At 30 °C (No Condensation), Storage / Transport: 5 % To 95 % At 25 / 55 °C (No
Condensation)
Vibrations
Vibration Resistance During Operation Acc. To Iec 60068-
2-6Tested According To Din Iec 60068-2-6: 10 Hz To 58 Hz: 0.075 Mm; 58 Hz To
500 Hz 9.8 M/S² (1 G)
Shock Testing
Shock Load During Operation Tested According To Iec 60068-2-27: 150 M/S², 11 Ms

Operating Systems

Pre-Installed Operating System Without Operating System
Without Operating System Yes

Dimensions

Width 320 Mm
Height 225.6 Mm
Depth 95.2 Mm
