Siemens

6AV7241-5BB07-0FA0

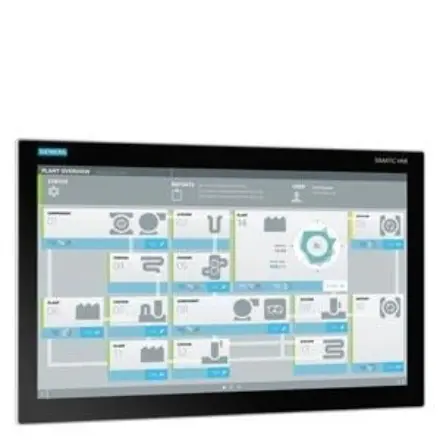

6AV7241-5BB07-0FA0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6AV7241-5BB07-0FA0 Siemens

6AV7241-5BB07-0FA0 Siemens - SIMATIC IPC 477E 15" touch (1280 x 800); with front USB; 4 USB (back), Ethernet (10/100/1000); Core i5-6442EQ; 3x Gbit Ethernet (IE/PN); 8 GB; without RS 232/RS485; without PCIe; Windows 10 IoT Enterprise 2016 LTSB (64-bit) for Celeron, i3 and i5; Without replaceable mass storage; 240 GB solid-state drive SATA Without SIMATIC software; 24 V DC industrial power supply

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6AV7241-5BB07-0FA0
Product Description SIMATIC IPC 477E 15" touch (1280 x 800); with front USB; 4 USB (back), Ethernet (10/100/1000); Core i5-6442EQ; 3x Gbit Ethernet (IE/PN); 8 GB; without RS 232/RS485; without PCIe; Windows 10 IoT Enterprise 2016 LTSB (64-bit) for Celeron, i3 and i5; Without replaceable mass storage; 240 GB solid-state drive SATA Without SIMATIC software; 24 V DC industrial power supply
Product family SIMATIC IPC477E
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations ECCN : 5A992 / AL : N
Estimated dispatch time (Working Days) 15 Day/Days
Net Weight (kg) 7,100 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN Not available
UPC 804766848810
Commodity Code 84714100
LKZ_FDB/ CatalogID ST80.1U
Product Group 9318
Group Code R133
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 11.11.2016
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Supply Voltage

Type Of Supply Voltage 100/240 V Ac (Autorange) 50/60 Hz; Optional 24 V Dc
Line Frequency
Rated Value 50 Hz Yes
Rated Value 60 Hz Yes
Mains Buffering
Mains/Voltage Failure Stored Energy Time 20 Ms
Power Loss
In Full Configuration 24 V Dc: Max. 65 W, Pcie Apcb Additionally 5 W
Processor
Processor Type Celeron G3902 (2C/2T, 1.6 Ghz, 2 Mb Cache); Core I3-6102E (2C/4T, 1.9
Ghz, 3 Mb Cache); Core I5-6442Eq (4C/4T, 1.9 (2.7) Ghz, 6 Mb Cache,
Iamt); Xeon E3-1505L V5 (4C/8T, 2.0 (2.8) Ghz, 8 Mb Cache, Iamt)
Chipset Intel C236 / Intel H110
Graphic
Graphics Controller Intel Hd Graphics Controller
Drives
Hard Disk 2.5" Sata ≥ 320 Gb
Ssd Yes; 128 / 240 / 480 Gb
Memory
Type Of Memory Ddr4-2400 So-Dimm
Main Memory 4 / 8 / 16 Gb, Ecc Optional
Capacity Of Main Memory, Max. 16 Gbyte
Data Areas And Their Retentivity
Retentive Data Area (Incl. Timers, Counters, Flags), Max. 512 Kbyte; 128 Kb Can Be Stored In The Buffer Time; Optional
Hardware Configuration
Slots
Free Slots 1X Pcie (Slot With Card Retainer), 1X Slot For Cfast Card
Number Of Pci Slots 1; Optional
Number Of Compact Flash Slots 1; Cfast
Interfaces
Number Of Industrial Ethernet Interfaces 3; 3X Ethernet (Rj45)
Usb Port 4X Usb 3.0
Connection For Keyboard/Mouse Usb / Usb
Serial Interface Without / 2X Com (Rs 232 / 422 / 485), Selectable In The Bios
Video Interfaces
Graphics Interface 2X Displayport
Industrial Ethernet
Industrial Ethernet Interface 3X Ethernet (Rj45)
— 100 Mbps Yes
— 1000 Mbps Yes
Interrupts/Diagnostics/Status Information
Bus Diagnostics Yes
Integrated Functions
Monitoring Functions
Temperature Monitoring Yes
Watchdog Yes
Fan No
Monitoring Function Via Network Optional
Emc
Interference Immunity Against Discharge Of Static Electricity
Interference Immunity Against Discharge Of Static
Electricity±6 Kv Contact Discharge Acc. To Iec 61000-4-2; ±8 Kv Air Discharge Acc. To Iec
61000-4-2
Interference Immunity Against High-Frequency Electromagnetic Fields
Interference Immunity Against High Frequency Radiation 10 V/M, 80 ... 2 000 Mhz, 80 % Am Acc. To Iec 61000-4-3; 3 V/M, 2 ... 2.7
Ghz; 10 V, 10 Khz ... 80 Mhz Acc. To Iec 61000-4-6
Interference Immunity To Cable-Borne Interference
Interference Immunity On Supply Cables ±2 Kv Acc. To Iec 61000-4-4, Burst; ±1 Kv Acc. To Iec 61000-4-5, Surge
Symmetric; ±2 Kv Acc. To Iec 61000-4-5, Surge Asymmetric
Interference Immunity On Signal Cables >30M ±2 Kv Acc. To Iec 61000-4-5, Surge, Length > 30 M
Interference Immunity On Signal Cables < 30M ±1 Kv Acc. To Iec 61000-4-4; Burst; Length < 3 M; ±2 Kv Acc. To Iec 61000-4-4;
Burst; Length > 3 M
Interference Immunity Against Voltage Surge
Asymmetric Interference ±2 Kv Acc. To Iec 61000-4-5, Surge Asymmetric
Symmetric Interference ±1 Kv Acc. To Iec 61000-4-5, Surge Symmetric
Interference Immunity To Magnetic Fields
Interference Immunity To Magnetic Fields At 50 Hz 100 A/M; To Iec 61000-4-8
Emission Of Conducted And Non-Conducted Interference
Interference Emission Via Line/Ac Current Cables En 61000-6-3, En 61000-6-4, Cispr 22 Class B, Fcc Class A
Degree And Class Of Protection
Ip (At The Front) Ip65
Ip (Rear) Ip20
Standards, Approvals, Certificates
Ce Mark Yes
Csa Approval Yes
Ul Approval Yes
Ul 508 Yes
Culus Yes
Rcm (Formerly C-Tick) Yes
Kc Approval Yes
Eac (Formerly Gost-R) Yes
Fcc Yes
Emc Ce, En 61000-6-4; Cispr 22:2004 Class A; Fcc Class A
Use In Hazardous Areas
Atex Zone 2 Yes; Optional, Only With Multitouch
Iecex Zone 2 Yes; Optional, Only With Multitouch
Culus Class I Zone 2, Division 2 Yes; Optional, Only With Multitouch
Marine Approval
Germanischer Lloyd (Gl) Yes
American Bureau Of Shipping (Abs) Yes
Bureau Veritas (Bv) Yes
Det Norske Veritas (Dnv) Yes
Korean Register Of Shipping (Krs) Yes
Lloyds Register Of Shipping (Lrs) Yes
Nippon Kaiji Kyokai (Class Nk) Yes

Ambient Temperature During Operation

Min. 0 °C
Max. 45 °C
Ambient Temperature During Storage/Transportation
Min. -20 °C
Max. 60 °C
Relative Humidity
Relative Humidity Tested According To Iec 60068-2-78, Iec 60068-2-30: 5% To 80% At 25 °C (No
Condensation)
Vibrations
Vibration Resistance During Operation Acc. To Iec 60068-
2-6Iec 60068-2-6; 5 Hz To 9 Hz: 3.5 Mm; 9 Hz To 500 Hz: 9.8 M/S² (With Ssd Or
Cfast); 10 Hz To 58 Hz: 0.0375 Mm; 58 Hz To 200 Hz: 4.9 M/S² (Hard Disk)
Shock Testing
Shock Load During Operation Iec 60068-2-27; 150 M/S², 11 Ms (Without Hard Disk); 50 M/S², 30 Ms (With Hard
Disk)

Operating Systems

Pre-Installed Operating System Windows 7 Ultimate (Multi-Language) 64-Bit, Windows Embedded Standard 7
E/P 32-Bit / 64-Bit, Windows 10
Without Operating System Yes; Optional
Pre-Installed Operating System
Windows 7 Yes; Ultimate 64 Bit
Windows 10 Enterprise Yes; Windows 10 Enterprise 2016 Ltsb, 64 Bit, Mui
Software
Simatic Software Optionally With Pre-Installed Simatic Wincc Rt Advanced / Software
Control Ler Cpu 1500S Software Bundle

Dimensions

Width Of The Housing Front 415 Mm
Height Of Housing Front 310 Mm
Mounting Cutout, Width 396 Mm
Mounting Cutout, Height 291 Mm
Overall Depth 76 Mm
Additional Mounting Depth (Optical Drive) 26 Mm
Weight S
Weight , Approx. 6.8 Kg
