Siemens

6AV7861-5TB10-1BA0

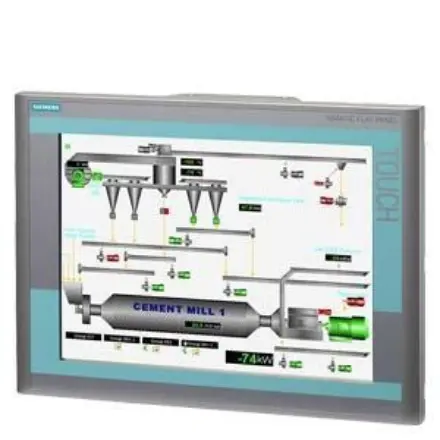

6AV7861-5TB10-1BA0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6AV7861-5TB10-1BA0 Siemens

6AV7861-5TB10-1BA0 Siemens - SIMATIC Flat Panel pro 15-inch Touch TFT screen with 1024x 768 pixels resolution for 24 V DC and 120/240 V AC VGA, DVI-D interface, can be placed up to 30 m away Fully enclosed IP65/NEMA4

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6AV7861-5TB10-1BA0
Product Description SIMATIC Flat Panel pro 15-inch Touch TFT screen with 1024x 768 pixels resolution for 24 V DC and 120/240 V AC VGA, DVI-D interface, can be placed up to 30 m away Fully enclosed IP65/NEMA4
Product family Not available
Product Lifecycle (PLM) PM490:Start of final year of support
PLM Effective Date Product discontinued since: 01.10.2023
Notes Product was deleted without replacement If you need assistance please contact our local Siemens office

Delivery information

Export Control Regulations ECCN : EAR99H / AL : N
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 8,820 Kg
Packaging Dimension 41,00 x 54,00 x 18,00
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4042948567494
UPC Not available
Commodity Code 85371098
LKZ_FDB/ CatalogID ST9.80
Product Group 4180
Group Code R133
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 23.04.2023
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Supply Voltage

Type Of Supply Voltage Ac/Dc
Permissible Range, Lower Limit (Dc) 19.2 V
Permissible Range, Upper Limit (Dc) 28.8 V
Permissible Range, Lower Limit (Ac) 90 V
Permissible Range, Upper Limit (Ac) 264 V
Interfaces
Usb On The Rear Yes; 2X Onboard
Video Interfaces
Dvi-D Yes
Degree And Class Of Protection
Ip (At The Front) Ip65
Ip (Rear) Ip65
Standards, Approvals, Certificates
Ul Approval Yes
Eac (Formerly Gost-R) No
Sibe Safety Certification No
Marine Approval
Germanischer Lloyd (Gl) No
American Bureau Of Shipping (Abs) No
Bureau Veritas (Bv) No
Det Norske Veritas (Dnv) No
Lloyds Register Of Shipping (Lrs) No
Polski Rejestr Statkow (Prs) No

Ambient Temperature During Operation

Min. 0 °C
Max. 45 °C

Dimensions

Width Of The Housing Front 400 Mm
Height Of Housing Front 310 Mm
Overall Depth 98.5 Mm
