Siemens

6ES7138-4FA04-0AB0

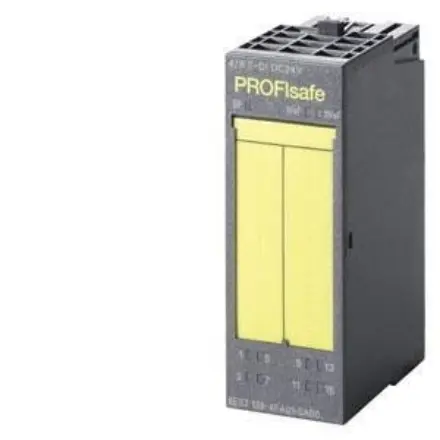

6ES7138-4FA04-0AB0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6ES7138-4FA04-0AB0 Siemens

6ES7138-4FA04-0AB0 Siemens - ***Spare part*** SIMATIC DP, Electronics module f. ET200S, 4/8 F-DI PROFIsafe, 24 V DC, 30 mm overall width, up to Category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849), can also be used in PROFINET configuration with IM 151-3 HF

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6ES7138-4FA04-0AB0
Product Description ***Spare part*** SIMATIC DP, Electronics module f. ET200S, 4/8 F-DI PROFIsafe, 24 V DC, 30 mm overall width, up to Category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849), can also be used in PROFINET configuration with IM 151-3 HF
Product family Not available
Product Lifecycle (PLM) PM490:Start of final year of support
PLM Effective Date Product discontinued since: 01.05.2024
Notes Product is no longer available. Successor: 6ES7138-4FA05-0AB0 Compare Products

Successor information

Successor 6ES7138-4FA05-0AB0
Successor Description *** Spare part *** SIMATIC DP, Electronics module f. ET200S, 4/8 F-DI PROFIsafe, 24 V DC, 30 mm overall width, up to PL E (ISO 13849), Up to SIL3 (IEC 61508), can also be used in PROFINET configuration with IM 151-3 HF

Delivery information

Export Control Regulations ECCN : N / AL : N
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 0,092 Kg
Packaging Dimension 6,50 x 9,20 x 3,80
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4025515076681
UPC 662643400755
Commodity Code 85389091
LKZ_FDB/ CatalogID ST9-E5
Product Group 4465
Group Code R152
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 25.11.2009
Product class D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer)
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead monoxide (lead oxide) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Supply Voltage

Rated Value (Dc) 24 V
Reverse Polarity Protection No
Encoder Supply
Number Of Outputs 2
Type Of Output Voltage Min. L+ (-1.5 V)
Short-Circuit Protection Yes; Electronic (Response Threshold 0.7 A To 1.8 A)
Output Current
Rated Value 300 Ma
Permissible Range, Lower Limit 0 Ma
Permissible Range, Upper Limit 300 Ma
Power Loss
Power Loss , Typ. 4 W
Address Area
Address Space Per Module
Inputs 6 Byte
Outputs 4 Byte
Digital Inputs
Number Of Digital Inputs 8; 8 Single Channel, 4 Two-Channel
Input Characteristic Curve In Accordance With Iec 61131, Type 1 Yes
Input Voltage
Type Of Input Voltage Dc
Rated Value (Dc) 24 V
For Signal "0" -30 To +5 V
For Signal "1" +15 To +30 V
Input Current
For Signal "1", Typ. 3.7 Ma
Input Delay (For Rated Value Of Input Voltage)
For Standard Inputs
— Parameterizable Yes
— At "0" To "1", Min. 0.3 Ms
— At "0" To "1", Max. 17 Ms
— At "1" To "0", Min. 0.3 Ms
— At "1" To "0", Max. 17 Ms
Cable Length
Shielded, Max. 200 M
Unshielded, Max. 200 M
Encoder
Connectable Encoders
2-Wire Sensor No
Interrupts/Diagnostics/Status Information
Diagnostics Function Yes
Alarms
Diagnostic Alarm Yes
Diagnoses
Diagnostic Information Readable Yes
Short-Circuit Yes
Diagnostics Indication Led
Group Error Sf (Red) Yes
Status Indicator Digital Input (Green) Yes
Potential Separation
Potential Separation Digital Inputs
Between The Channels No
Between The Channels And Backplane Bus Yes
Between The Channels And Load Voltage L+ No
Isolation
Isolation Tested With 500 V Dc
Standards, Approvals, Certificates
Highest Safety Class Achievable In Safety Mode
Acc. To En 954 4
Performance Level According To Iso 13849-1 E
Sil Acc. To Iec 61508 Sil 2 (Single-Channel), Sil 3 (Two-Channel)

Dimensions

Width 30 Mm
Height 81 Mm
Depth 52 Mm
Weight S
Weight , Approx. 78 G
