Siemens

6ES7157-0AG80-0XA0

6ES7157-0AG80-0XA0 Siemens

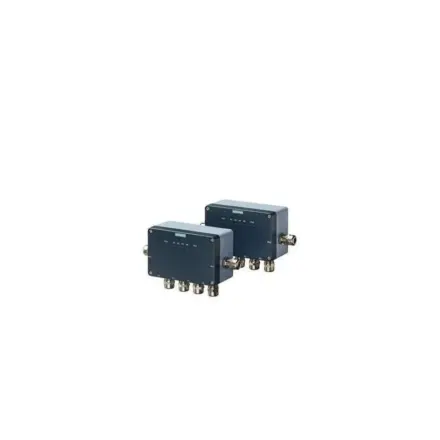

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6ES7157-0AG80-0XA0 Siemens

6ES7157-0AG80-0XA0 Siemens - ********** Replacement part ********* Active field splitter AFS for PROFIBUS PA for foundation Fieldbus H1, for extended temperature range Type of protection IP 66

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6ES7157-0AG80-0XA0
Product Description ********** Replacement part ********* Active field splitter AFS for PROFIBUS PA for foundation Fieldbus H1, for extended temperature range Type of protection IP 66
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
PLM Effective Date Product is cancelled since: 08.10.2018
Notes This product is a Spare Part, please visit the Spares & Service section for more information If you need assistance please contact our local Siemens office

Delivery information

Export Control Regulations ECCN : N / AL : N
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 2,086 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN Not available
UPC 887621063702
Commodity Code 85176200
LKZ_FDB/ CatalogID STPCS7
Product Group 4A41
Group Code R1TP
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 21.12.2012
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Product Function

Repeater Function No

Supply Voltage

Permissible Range, Lower Limit (Dc) 16 V
Permissible Range, Upper Limit (Dc) 32 V
Reverse Polarity Protection Yes; Only In Conjunction With Fdc 157
Overvoltage Protection No
Input Current
Current Consumption (In No-Load Operation), Typ. 24 Ma
Power Loss
Power Loss , Typ. 864 Mw
Power Loss , Max. 2.13 W
Interfaces
Profibus Pa
Transmission Rate, Max. 31.25 Kbit/S
Protocols
Profibus Dp No
Profibus Pa Yes
As-Interface No
Foundation Fieldbus H1 Yes
Interrupts/Diagnostics/Status Information
Status Indicator Yes
Alarms No
Diagnostics Function Yes
Diagnostics Indication Led
Main Line Status Yes
Main Line Failure Yes
Spur Line Status/Fault Yes
Automatic Bus Termination No
Potential Separation
Between Main Line And Spur Lines No
Degree And Class Of Protection
Ip Degree Of Protection Ip66
Standards, Approvals, Certificates
Use In Hazardous Areas
Atex Zone 1 No
Atex Zone 21 No
Atex Zone 2 Yes
Atex Zone 22 Yes
Fm Class I Zone 1 No
Fm Class I Zone 2, Division 2 Yes

Ambient Temperature During Operation

Min. -40 °C
Max. 70 °C
Ambient Temperature During Storage/Transportation
Min. -40 °C
Max. 85 °C
Relative Humidity
Operation, Max. 95 %
Connection Method
Connection Method / Main Cable / Header
Number Of Connections / For Profibus Pa Main Cable 2
Design Of The Electrical Connection / For Profibus Pa
Main Cablescrew Terminal Block
Design Of The Thread / Of Cable Screw Connection / For
Profibus Pa Main Cablem16
Design Of The Profibus Pa Main Cable Type A
Diameter / Of The Profibus Pa Main Cable / Connectable
/ Minimum4 Mm
Diameter / Of The Profibus Pa Main Cable / Connectable
/ Maximum9 Mm
Connectable Conductor Cross-Section / Of The Profibus
Pa Main Cable / Minimum0.2 Mm²
Connectable Conductor Cross-Section / Of The Profibus
Pa Main Cable / Maximum2.5 Mm²
Output Current / For Profibus Pa Main Cable / Maximum
Permissible1 A
Connection Method / Spur Line / Header
Number Of Spur Lines 2
Type Of Connection (Enclosure Cable Gland) M16
Type Of Cable Type A
Cable Diameter, Min. 4 Mm
Cable Diameter, Max. 9 Mm
Conductor Cross-Section, Min. 0.2 Mm²
Conductor Cross-Section, Max. 2.5 Mm²
Intrinsically Safe According To Fisco Model No

Dimensions

Width 220 Mm
Height 120 Mm; Without Screw Glands
Depth 83 Mm
Weight S
Weight , Approx. 2 000 G
