Siemens

6ES7223-1BM22-0XA0

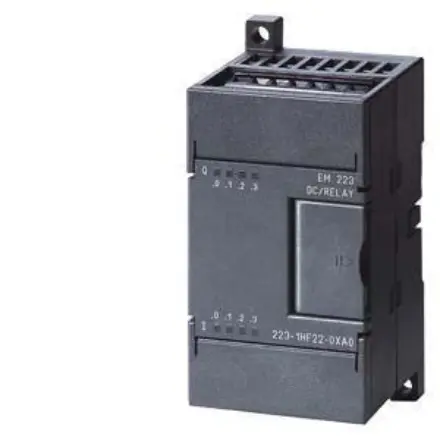

6ES7223-1BM22-0XA0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6ES7223-1BM22-0XA0 Siemens

6ES7223-1BM22-0XA0 Siemens - ***Spare part*** SIMATIC S7-200, Digital I/O EM 223, only for S7-22X CPU, 32DI 24 V DC, Sink/Source, 32DO 24 V DC; 0.75 A/channel, SOURC

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6ES7223-1BM22-0XA0
Product Description ***Spare part*** SIMATIC S7-200, Digital I/O EM 223, only for S7-22X CPU, 32DI 24 V DC, Sink/Source, 32DO 24 V DC; 0.75 A/channel, SOURC
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
PLM Effective Date Product is cancelled since: 01.10.2017
Notes This product is a Spare Part, please visit the Spares & Service section for more information If you need assistance please contact our local Siemens office

Delivery information

Export Control Regulations ECCN : N / AL : N
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 0,452 Kg
Packaging Dimension 11,10 x 21,70 x 7,60
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4025515074342
UPC 662643186970
Commodity Code 85389091
LKZ_FDB/ CatalogID ST9-E5
Product Group 4557
Group Code R131
Country of origin China
Compliance with the substance restrictions according to RoHS directive Since: 31.03.2008
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead monoxide (lead oxide) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | 2,2',6,6'-tetrabromo... CAS-No. 79-94-7 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Supply Voltage

Load Voltage L+
Rated Value (Dc) 24 V
Permissible Range, Lower Limit (Dc) 20.4 V
Permissible Range, Upper Limit (Dc) 28.8 V
Input Current
From External Supply (24 V Dc), Max. 128 Ma; On: 4 Ma/Input
From Backplane Bus 5 V Dc, Max. 240 Ma
Power Loss
Power Loss , Typ. 9 W
Digital Inputs
Number Of Digital Inputs 32
Input Voltage
Type Of Input Voltage Dc
Rated Value (Dc) 24 V
For Signal "0" 0 To 5 V
For Signal "1" 15 V Dc To 30 V Dc
Input Current
For Signal "1", Typ. 4 Ma
Input Delay (For Rated Value Of Input Voltage)
For Standard Inputs
— At "0" To "1", Max. 4.5 Ms
Digital Outputs
Number Of Digital Outputs 32
Short-Circuit Protection No
Limitation Of Inductive Shutdown Voltage To L+ (-48 V)
Output Voltage
For Signal "0", Max. 0.1 V
For Signal "1", Min. 20 V
Output Current
For Signal "1" Rated Value 750 Ma
Total Current Of The Outputs (Per Group)
All Mounting Positions
— Current Per Conductor/Group, Max. 0.75 A; 10 A Per Group
Relay Outputs
Switching Capacity Of Contacts
— With Inductive Load, Max. 0.75 A; Each Output
— On Lamp Load, Max. 5 W
— With Resistive Load, Max. 0.75 A; Each Output
Cable Length
Shielded, Max. 500 M
Unshielded, Max. 150 M
Encoder
Connectable Encoders
2-Wire Sensor Yes
— Permissible Quiescent Current (2-Wire Sensor), Max. 1 Ma
Potential Separation
Potential Separation Digital Inputs
Potential Separation Digital Inputs Yes; Optocoupler
Between The Channels, In Groups Of 16; 2 Groups With 16 Inputs Each
Potential Separation Digital Outputs
Potential Separation Digital Outputs Yes; Optocoupler
Between The Channels, In Groups Of 16; 2 Groups With 16 Outputs Each
Isolation
Isolation Tested With 500 V Ac
Connection Method
Plug-In I/O Terminals Yes

Dimensions

Width 196 Mm
Height 80 Mm
Depth 62 Mm
Weight S
Weight , Approx. 500 G
