Siemens

6ES7241-1AH30-0XB0

6ES7241-1AH30-0XB0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6ES7241-1AH30-0XB0 Siemens

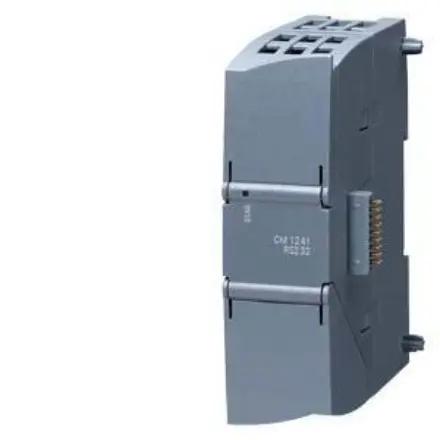

6ES7241-1AH30-0XB0 Siemens - ***Spare part*** SIMATIC S7-1200, Communication module CM 1241, RS232, 9-pole D-sub (pin), supports Freeport

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6ES7241-1AH30-0XB0
Product Description ***Spare part*** SIMATIC S7-1200, Communication module CM 1241, RS232, 9-pole D-sub (pin), supports Freeport
Product family Not available
Product Lifecycle (PLM) PM490:Start of final year of support
PLM Effective Date Product discontinued since: 01.11.2023
Notes Product is no longer available. Successor: 6ES7241-1AH32-0XB0 Compare Products

Successor information

Successor 6ES7241-1AH32-0XB0
Successor Description SIMATIC S7-1200, Communication module CM 1241, RS232, 9-pole D-sub (pin), supports Freeport

Delivery information

Export Control Regulations ECCN : EAR99H / AL : N
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 0,156 Kg
Packaging Dimension 9,10 x 10,40 x 5,80
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 6940408100374
UPC Not available
Commodity Code 85176200
LKZ_FDB/ CatalogID ST9-E5
Product Group 9042
Group Code R132
Country of origin China
Compliance with the substance restrictions according to RoHS directive Since: 10.06.2009
Product class D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer)
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Ambient Conditions

Free Fall
Fall Height, Max. 0.3 M; Five Times, In Product Package

Ambient Temperature During Operation

Min. 0 °C
Max. 55 °C
Horizontal Installation, Min. 0 °C
Horizontal Installation, Max. 55 °C
Vertical Installation, Min. 0 °C
Vertical Installation, Max. 45 °C
Permissible Temperature Change 5°C To 55°C, 3°C / Minute
Ambient Temperature During Storage/Transportation
Min. -40 °C
Max. 70 °C
Air Pressure Acc. To Iec 60068-2-13
Operation, Min. 795 Hpa
Operation, Max. 1 080 Hpa
Storage/Transport, Min. 660 Hpa
Storage/Transport, Max. 1 080 Hpa
Relative Humidity
Operation At 25 ℃ Without Condensation, Max. 95 %

Dimensions

Width 30 Mm
Height 100 Mm
Depth 75 Mm
Weight S
Weight , Approx. 150 G
