Description for 6ES7417-4HL04-0AB0 Siemens

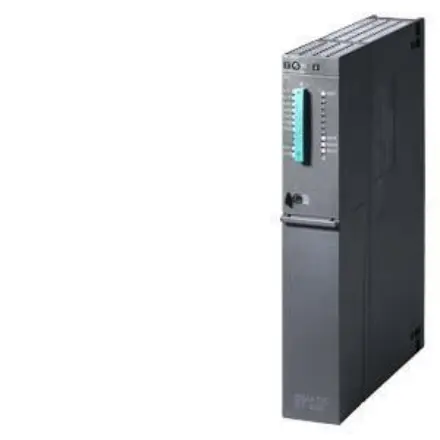

6ES7417-4HL04-0AB0 Siemens - ********** Replacement part ********* SIMATIC S7-400H, CPU 417H Central processing unit for S7-400H 4 interfaces: 1 MPI/DP, 1 DP and 2 for sync modules 20 MB memory (10 MB data/10 MB program)

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6ES7417-4HL04-0AB0
Product Description ********** Replacement part ********* SIMATIC S7-400H, CPU 417H Central processing unit for S7-400H 4 interfaces: 1 MPI/DP, 1 DP and 2 for sync modules 20 MB memory (10 MB data/10 MB program)
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
PLM Effective Date Product is cancelled since: 01.10.2010
Notes This product is a Spare Part, please visit the Spares & Service section for more information If you need assistance please contact our local Siemens office

Delivery information

Export Control Regulations ECCN : EAR99H / AL : N
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 1,221 Kg
Packaging Dimension 23,30 x 30,30 x 6,50
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4019169123617
UPC Not available
Commodity Code 85389091
LKZ_FDB/ CatalogID ST9-E5
Product Group 4A41
Group Code R1TP
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Product is not RoHS-compliant
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Supply Voltage

Rated Value (Dc) Power Supply Via System Power Supply
Input Current
From Backplane Bus 5 V Dc, Max. 1.7 A
Power Loss
Power Loss , Typ. 6 W
Memory
Type Of Memory Ram
Work Memory
Integrated 20 Mbyte
Expandable No
Load Memory
Expandable Feprom Yes; With Memory Card (Flash)
Expandable Feprom, Max. 64 Mbyte
Integrated Ram, Max. 256 Kbyte
Expandable Ram Yes; With Memory Card (Ram)
Expandable Ram, Max. 64 Mbyte
Backup
Present Yes
With Battery Yes; All Data
Without Battery No
Battery
Backup Battery
Backup Current, Typ. 600 Μa
Backup Current, Max. 1 810 Μa
Feeding Of External Backup Voltage To Cpu 5 V Dc To 15 V Dc
Cpu Processing Times
For Bit Operations, Typ. 0.03 Μs
For Word Operations, Typ. 0.03 Μs
For Fixed Point Arithmetic, Typ. 0.03 Μs
For Floating Point Arithmetic, Typ. 0.09 Μs
Cpu-Blocks
Db
Number, Max. 8 192; Db 0 Reserved
Size, Max. 64 Kbyte
Fb
Number, Max. 6 144
Size, Max. 64 Kbyte
Fc
Number, Max. 6 144
Size, Max. 64 Kbyte
Ob
Number, Max. See Instruction List
Size, Max. 64 Kbyte
Nesting Depth
Per Priority Class 24
Additional Within An Error Ob 2
Counters, Timers And Their Retentivity
S7 Counter
Number 2 048
Retentivity
— Adjustable Yes
— Preset Z 0 To Z 7
Counting Range
— Lower Limit 1
— Upper Limit 999
Iec Counter
Present Yes
Type Sfb
S7 Times
Number 2 048
Time Range
— Lower Limit 10 Ms
— Upper Limit 9 990 S
Iec Timer
Present Yes
Type Sfb
Data Areas And Their Retentivity
Flag
Size, Max. 16 Kbyte
Retentivity Available Yes; Mb 0 To Mb 16383
Retentivity Preset Mb 0 To Mb 15
Address Area
I/O Address Area
Inputs 16 Kbyte
Outputs 16 Kbyte
Process Image
Inputs, Adjustable 16 Kbyte
Outputs, Adjustable 16 Kbyte
Inputs, Default 1 024 Byte
Outputs, Default 1 024 Byte
Subprocess Images
Number Of Subprocess Images, Max. 8
Digital Channels
Inputs 131 072
— Of Which Central 131 072
Outputs 131 072
— Of Which Central 131 072
Analog Channels
Inputs 8 192
— Of Which Central 8 192
Outputs 8 192
— Of Which Central 8 192
Hardware Configuration
Number Of Expansion Units, Max. 21
Multicomputing No
Interface Modules
Number Of Connectable Ims (Total), Max. 6
Number Of Connectable Im 460S, Max. 6
Number Of Connectable Im 463S, Max. 6; Im 463-2
Number Of Dp Masters
Integrated 2
Via Cp 10
Via Im 467 0
Mixed Mode Im + Cp Permitted No; Im 467 Cannot Be Used Jointly With Cp 443-5 Ext.
Via Interface Module 0
Number Of Operable Fms And Cps (Recommended)
Fm 64; Limited By Number Of Slots And Number Of Connections
Cp, Ptp 64; Limited By Number Of Slots And Number Of Connections
Cp, Lan 64; Limited By Number Of Slots And Number Of Connections
Slots
Required Slots 2
Time Of Day
Clock
Hardware Clock (Real-Time) Yes
Retentive And Synchronizable Yes
Operating Hours Counter
Number 8
Clock Synchronization
Supported Yes
1. Interface
Interface Type Mpi/Profibus Dp
Isolated Yes
Interface Types
Rs 485 Yes
Protocols
Mpi Yes; Default Setting
Profibus Dp Master Yes
Profibus Dp Device No
Mpi
Number Of Connections 44
Transmission Rate, Max. 12 Mbit/S
Services
— Pg/Op Communication Yes
— Global Data Communication No
— S7 Basic Communication No
— S7 Communication Yes
— S7 Communication, As Client Yes
— S7 Communication, As Server Yes
Profibus Dp Master
Number Of Connections, Max. 32
Transmission Rate, Max. 12 Mbit/S
Max. Number Of Dp Devices 32; Number Of Slots, Max. 512
Services
— Pg/Op Communication Yes
— Global Data Communication No
— S7 Basic Communication No
— S7 Communication No
— S7 Communication, As Client No
— S7 Communication, As Server No
— Equidistance No
— Sync/Freeze No
— Activation/Deactivation Of Dp Devices No
— Direct Data Exchange (Slave-To-Slave
Communication )No
Address Area
— Inputs, Max. 2 Kbyte
— Outputs, Max. 2 Kbyte
User Data Per Dp Device
— Inputs, Max. 244 Byte
— Outputs, Max. 244 Byte
2. Interface
Interface Type Profibus Dp
Isolated Yes
Interface Types
Rs 485 Yes
Protocols
Profibus Dp Master Yes
Profibus Dp Device No
Point-To-Point Connection No
Profibus Dp Master
Number Of Connections, Max. 32
Transmission Rate, Max. 12 Mbit/S
Max. Number Of Dp Devices 125; Number Of Slots, Max. 2 048
Services
— Pg/Op Communication Yes
— Global Data Communication No
— S7 Basic Communication No
— S7 Communication No
— S7 Communication, As Client No
— S7 Communication, As Server No
— Equidistance No
— Sync/Freeze No
— Activation/Deactivation Of Dp Devices No
— Direct Data Exchange (Slave-To-Slave
Communication )No
Address Area
— Inputs, Max. 8 Kbyte
— Outputs, Max. 8 Kbyte
User Data Per Dp Device
— Inputs, Max. 244 Byte
— Outputs, Max. 244 Byte
Communication Functions / Header
Pg/Op Communication Yes
Global Data Communication
Supported No
S7 Basic Communication
Supported No
S7 Communication
Supported Yes
As Server Yes
As Client Yes
User Data Per Job, Max. 64 Kbyte
S5 Compatible Communication
Supported Yes; Via Cp And Loadable Fc
User Data Per Job, Max. 8 Kbyte
Standard Communication (Fms)
Supported Yes; Via Cp And Loadable Fb
User Data Per Job, Max. Dependent On Cp
Number Of Connections
Overall 64
Usable For Pg Communication
— Reserved For Pg Communication 1
— Adjustable For Pg Communication, Max. 0
Usable For Op Communication
— Reserved For Op Communication 1
— Adjustable For Op Communication, Max. 0
Usable For S7 Basic Communication
— Reserved For S7 Basic Communication 0
— Adjustable For S7 Basic Communication, Max. 0
Usable For Routing
— Reserved For Routing 0
— Adjustable For Routing, Max. 0
S7 Message Functions
Number Of Login Stations For Message Functions, Max. 16
Configuration / Header
Configuration Software
Step 7 Yes; V5.0 Sp2
Configuration / Programming / Header
Programming Language
— Lad Yes
— Fbd Yes
— Stl Yes
— Scl Yes
— Cfc Yes
— Graph Yes
— Higraph® Yes
Know-How Protection
User Program Protection/Password Protection Yes

Dimensions

Width 50 Mm
Height 290 Mm
Depth 219 Mm
Weight S
Weight , Approx. 1 070 G
