Siemens

6ES7441-1AA04-0AE0

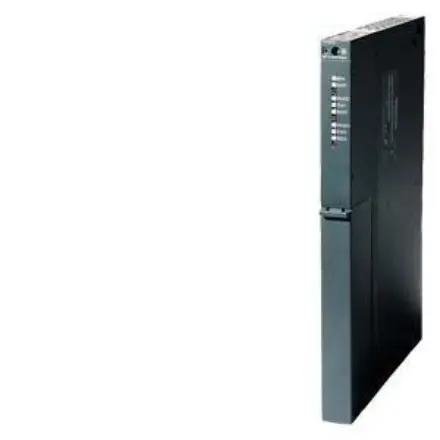

6ES7441-1AA04-0AE0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6ES7441-1AA04-0AE0 Siemens

6ES7441-1AA04-0AE0 Siemens - ******* repair part ******* SIMATIC S7-400, coupling module CP 441-1 for point-to-point connections, 1 channel incl. configuration package on CD

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6ES7441-1AA04-0AE0
Product Description ******* repair part ******* SIMATIC S7-400, coupling module CP 441-1 for point-to-point connections, 1 channel incl. configuration package on CD
Product family Not available
Product Lifecycle (PLM) PM490:Start of final year of support
PLM Effective Date Product discontinued since: 01.10.2023
Notes Product is no longer available Sucessor:Clarify with PM If you need assistance please contact our local Siemens office

Delivery information

Export Control Regulations ECCN : EAR99H / AL : N
Estimated dispatch time (Working Days) On request
Net Weight (kg) 0,916 Kg
Packaging Dimension 23,30 x 29,70 x 4,10
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4019169138727
UPC Not available
Commodity Code 85176200
LKZ_FDB/ CatalogID ST9-E5
Product Group 4519
Group Code R1TP
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 15.12.2005
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Supply Voltage

Rated Value (Dc)
5 V Dc Yes
24 V Dc Yes
Input Current
From Backplane Bus 5 V Dc, Max. 600 Ma; Without Interface Module
Power Loss
Power Loss , Typ. 0.3 W
Memory
Memory Requirements Per Interface In Memory Card Of S7-Cpu 1 To 5 Kb For Parameters; 0 To 55 Kb For Message Texts
Interfaces
Number Of Interfaces 1; Variable
Point-To-Point Connection
Transmission Rate, Max. 38.4 Kbit/S
Supported Printers Hp-Deskjet, Hp-Laserjet, Ibm-Proprinter, User-Defined
Integrated Protocol Driver
— 3964 (R) Yes
— Ascii Yes
— Rk 512 No
— Printer Yes
— Customer-Specific Drivers Reloadable No
Transmission Rate, 20 Ma (Tty)
— With 3964 (R) Protocol, Max. 19.2 Kbit/S
— With Ascii Protocol, Max. 19.2 Kbit/S
— With Printer Driver, Max. 19.2 Kbit/S
Transmission Rate, Rs 422/485
— With 3964 (R) Protocol, Max. 38.4 Kbit/S
— With Ascii Protocol, Max. 38.4 Kbit/S
— With Printer Driver, Max. 38.4 Kbit/S
Transmission Speed, Rs 232
— With 3964 (R) Protocol, Max. 38.4 Kbit/S
— With Ascii Protocol, Max. 38.4 Kbit/S
— With Printer Driver, Max. 38.4 Kbit/S

Ambient Temperature During Operation

Min. 0 °C
Max. 60 °C
Ambient Temperature During Storage/Transportation
Min. 0 °C
Max. 70 °C
Relative Humidity
Operation, Max. 95 %; No Condensation
Configuration / Header
Configuration Software
Step 7 Yes; Own Parameter Assignment Forms

Dimensions

Width 25 Mm
Height 290 Mm
Depth 210 Mm
Weight S
Weight , Approx. 800 G; Interface Module: 100 G

Documentation

Downloads
