Siemens

6GK1162-8AA00

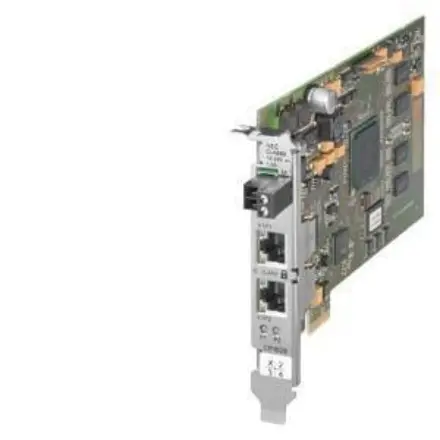

6GK1162-8AA00 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6GK1162-8AA00 Siemens

6GK1162-8AA00 Siemens - ********** spare part ********* communications processor CP 1628 PCI express X1 (3, 3 V/12 V) for connection to Industrial Ethernet (10/100/1000 Mbps) with 2-port switch (RJ45) and integrated security (firewall VPN) via HARDNET-IE S7 and S7-REDCONNECT operating system support, see SIMATIC NET software. See SIOS ID: 109817613

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6GK1162-8AA00
Product Description - - spare part - - communications processor CP 1628 PCI express X1 (3, 3 V/12 V) For connection to Industrial Ethernet (10/100/1000 Mbps) with 2-port switch (RJ45) and integrated security (firewall VPN) via HARDNET-IE S7 and S7-REDCONNECT operating system support, see SIMATIC NET software. See SIOS ID: 109817613
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
PLM Effective Date Product is cancelled since: 21.06.2021
Notes This product is a Spare Part, please visit the Spares & Service section for more information If you need assistance please contact our local Siemens office

Delivery information

Export Control Regulations ECCN : 5A002ENCA3 / AL : N
Estimated dispatch time (Working Days) 5 Day/Days
Net Weight (kg) 0,451 Kg
Packaging Dimension 13,70 x 19,80 x 4,10
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4019169232739
UPC 040892973150
Commodity Code 85176200
LKZ_FDB/ CatalogID IK-E
Product Group X0AI
Group Code R322
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Given
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Supply Voltage

1 / From Backplane Bus 3.3 V
2 / From Backplane Bus 12 V
External 24 V
External 10.5 ... 32 V
Relative Symmetrical Tolerance / At Dc
At 3.3 V 9 %
At 5 V 5 %
At 12 V 8 %
At 24 V 33 %
Consumed Current
1 / From Backplane Bus / At Dc / Maximum 0.85 A
2 / From Backplane Bus / At Dc / Maximum 0.4 A
From External Supply Voltage / At Dc / At 12 V / Maximum 0.55 A
From External Supply Voltage / At Dc / At 24 V / Maximum 0.3 A
Power Loss [W] 7.6 W
Power Loss [W] / In Switch Mode / Maximum 7.2 W

Ambient Conditions

Ambient Temperature
During Operation 5 ... 55 °C
During Storage -20 ... +60 °C
During Transport -20 ... +60 °C
Relative Humidity / At 25 °C / Without Condensation / During
Operation / Maximum95 %
Protection Class Ip Ip00
Design, Dimensions And Weights
Module Format Pci Express X1 (Half Length)
Width 18 Mm
Height 111 Mm
Depth 167 Mm
Net Weight 124 G

Product Features, Product Functions, Product Components / General

Number Of Plug-In Cards Of Same Design / Plug-In / Per Pc
Station4
Number Of Units / Note -
Performance Data / Open Communication
Software / For Open Communication / By Means Of
Send/Receive / Requiredyes, Hardnet-Ie S7 (S7-1613)
Number Of Possible Connections / For Open Communication / By
Means Of Send/Receive / Maximum120
Performance Data / S7 Communication
Software / For S7 Communication / Required Yes, Hardnet-Ie S7 (S7-1613)
Number Of Possible Connections / For S7/Pg Communication /
Maximum 120
Number Of Possible Connections / For Optimized S7
Communication / Maximum64
Performance Data / Multi-Protocol Mode
Number Of Active Connections / With Multi-Protocol Mode 120
Number Of Configurable Connections / Per Pc Station 207
Performance Data / Profinet Cba
Software / For Profinet Cba Communication / Required Yes, Pn Cba Opc Server
Number Of Remote Connection Partners / With Profinet Cba 228
Number Of Connections / With Profinet Cba / Total 10000
Product Functions / Management, Configuration, Engineering
Product Function / Mib Support Yes
Protocol / Is Supported
Snmp V1 Yes
Snmp V3 Yes
Dcp Yes
Lldp No
Configuration Software / Required Included In The Scope Of Delivery Of The Required Software Product
Configuration Software / For Profinet Cba / Required Yes, Simatic Imap
Identification & Maintenance Function
I&M0 - Device-Specific Information Yes
I&M1 - Higher Level Designation/Location Designation Yes
I&M2 - Installation Date No
I&M3 - Comment No
I&M4 - Signature No
I&M4 - Oem Data No
Product Functions / Switch
Product Feature / Switch Yes
Product Function / Switch-Managed No
Product Function / With Irt / Profinet Io Switch No
Product Functions / Redundancy
Software / For Redundancy Function / Required Yes, Hardnet-Ie S7-Redconnect For Communication With Simatic S7 H
Systems
Product Functions / Security
Firewall Version Stateful Inspection
Product Function / With Vpn Connection Ipsec
Type Of Encryption Algorithms / With Vpn Connection Aes-256, Aes-192, Aes-128, 3Des-168, Des-56
Type Of Authentication Procedure / With Vpn Connection Preshared Key (Psk), X.509V3 Certificates
Type Of Hashing Algorithms / With Vpn Connection Md5, Sha-1
Number Of Possible Vpn Tunnels 64
Number Of Possible Connections / For S7 Communication
Via Iso And Vpn / With S7-Redconnect / Maximum 64
Via Tcp And Vpn / With S7-Redconnect / Maximum 120
Number Of Available Ip Addresses / With Vpn Connection /
Maximum 16
Product Functions / Time
Product Function / Siclock Support Yes
Protocol / Is Supported / Ntp Yes
