Siemens

6GK1411-5BB00

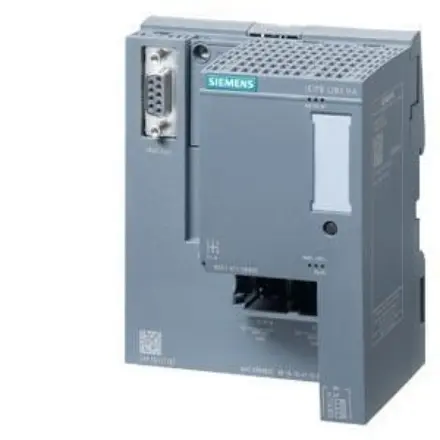

6GK1411-5BB00 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6GK1411-5BB00 Siemens

6GK1411-5BB00 Siemens - IE/PB LINK HA gateway between Ind. Ethernet and PROFIBUS, PROFINET IO proxy with real-time communication, system redundancy S2; H-CiR, time synch. via SIMATIC processes, NTP, SNMP V1, LLDP, S7 routing, data set routing, connection of up to 125 S7/DPV0/DPV1 devices (64 for S2 operation), support of DP/PA link and DP/FF link, 10/100 Mbps Fast Ethernet, MRP, 9.6 Kbps to 12 Mbps Profibus, firmware loading via configuration tool, redundant power supply, conformal coating, external temperature -40 °C.. 70 °C

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6GK1411-5BB00
Product Description IE/PB LINK HA gateway between Ind. Ethernet and PROFIBUS, PROFINET IO proxy with real-time communication, system redundancy S2; H-CiR, time synch. via SIMATIC processes, NTP, SNMP V1, LLDP, S7 routing, data set routing, connection of up to 125 S7/DPV0/DPV1 devices (64 for S2 operation), support of DP/PA link and DP/FF link, 10/100 Mbps Fast Ethernet, MRP, 9.6 Kbps to 12 Mbps Profibus, firmware loading via configuration tool, redundant power supply, conformal coating, external temperature -40 °C.. 70 °C
Product family IE/PB LINK
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 0,482 Kg
Packaging Dimension 100,00 x 74,00 x 117,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4047622738320
UPC 195125039360
Commodity Code 85176200
LKZ_FDB/ CatalogID IK
Product Group 2413
Group Code R322
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Given
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Ambient Conditions

Ambient Temperature
For Vertical Installation / During Operation -40 ... +50 °C
For Horizontally Arranged Busbars / During Operation -40 ... +70 °C
During Storage -40 ... +70 °C
During Transport -40 ... +70 °C
Relative Humidity
At 25 °C / Without Condensation / During Operation /
Maximum 95 %
Protection Class Ip Ip20
Design, Dimensions And Weights
Module Format Et 200Sp Design
Width 100 Mm
Height 117 Mm
Depth 74 Mm
Net Weight 0.6 Kg
Product Feature / Conformal Coating Yes
Fastening Method
35 Mm Top Hat Din Rail Mounting Yes
Performance Data / Profibus Dp
Service / As Dp Master
Dpv0 Yes
Dpv1 Yes
Number Of Dp Slaves
At The 2Nd Interface / As Dp Master / Maximum 125
Data Volume
Of The Address Range Of The Inputs / As Dp Master / Total 4096 Byte
Of The Address Range Of The Outputs / As Dp Master / Total 4096 Byte
Of The Address Range Of The Inputs / Per Dp Slave 244 Byte
Of The Address Range Of The Outputs / Per Dp Slave 244 Byte
Performance Data / S7 Communication
Number Of Possible Connections / For S7 Communication
Maximum 32
Performance Data / Multi-Protocol Mode
Number Of Active Connections / With Multi-Protocol Mode 48
Performance Data / Profinet Communication / As Pn Io Device
Product Function / Profinet Io Device Yes
Product Functions / Management, Configuration, Engineering
Product Function / Mib Support Yes
Protocol / Is Supported
Snmp V1 Yes
Dcp Yes
Lldp Yes
Identification & Maintenance Function
I&M0 - Device-Specific Information Yes
I&M1 - Higher Level Designation/Location Designation Yes
I&M2 - Installation Date Yes
I&M3 - Comment Yes
Product Function / Is Supported / Identification Link Yes
Product Functions / Routing
Service / As Profibus / Data Set Routing Yes
Number Of Possible Connections / With Data Set Routing /
Maximum 32
Product Functions / Redundancy

Product Function

Ring Redundancy Yes
Product Function / Of The Profinet Io Device / Is Supported
Profinet System Redundancy Yes
Protocol / Is Supported / Media Redundancy Protocol (Mrp) Yes
Product Functions / Time
Product Function / Pass On Time Synchronization Yes
Protocol / Is Supported
Ntp Yes
Simatic Time Synchronization (Simatic Time) Yes

Standards, Specifications, Approvals

Reference Code
According To Iec 81346-2:2019 Ked
