Siemens

6GK19010DB306AA8

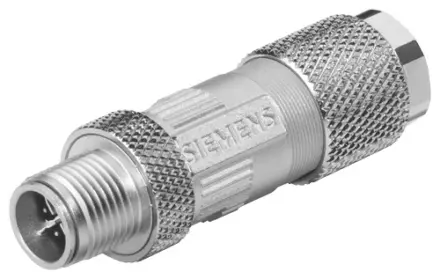

6GK19010DB306AA8 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6GK19010DB306AA8 Siemens

6GK19010DB306AA8 Siemens - Industrial Ethernet FastConnect M12 plug PRO 4x 2 M12 plug-in connector with Rugged metal enclosure and FC connection method, with axial cable outlet (X-coded) 1 pack=8 units for SCALANCE W.

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6GK1901-0DB30-6AA8
Product Description Industrial Ethernet FastConnect M12 plug PRO 4x 2 M12 plug-in connector with Rugged metal enclosure and FC connection method, with axial cable outlet (X-coded) 1 pack=8 units for SCALANCE W.
Product family Not available
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 0,040 Kg
Packaging Dimension 16,80 x 52,00 x 16,80
Package size unit of measure MM
Quantity Unit 1 Package
Packaging Quantity 8

Additional Product Information

EAN 4019169854573
UPC 040892995558
Commodity Code 85366990
LKZ_FDB/ CatalogID IK
Product Group 2430
Group Code R323
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Given
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Mechanical Data

Material / Of The Enclosure Metal
Locking Mechanism Design Screwed Joint
Tightening Torque / For M12 Round Connector / Maximum 0.6 N·M
Connector Coding / Of The M12 Circular Connector X
Design, Dimensions And Weights
Type Of Cable Outlet 180° Cable Outlet
Width 16.8 Mm
Height 16.8 Mm
Depth 52 Mm
Net Weight 40 G
Connectable Cable Cross-Section 6.5 ... 8 Mm
Connectable Conductor Cross-Section 0.21 ... 0.33 Mm²

Ambient Conditions

Ambient Temperature
During Operation -40 ... +85 °C
During Storage -40 ... +85 °C
During Transport -40 ... +85 °C
Chemical Resistance
To Water Resistant
Product Features, Product Functions, S / General

Product Features, Product Functions, Product Components / General

Product Feature
Poe Capability Yes
Poe+Capability Yes
Silicon-Free Yes

Product Component

Strain Relief Yes

Standards, Specifications, Approvals

Certificate Of Suitability
Rohs Conformity Yes
Ul Approval Yes
Culus Approval Yes
Railway Application In Accordance With En 50155 Yes
Fire Protection In Accordance With En 45545-2 Yes
Standard For Structured Cabling Cat6A
Reference Code
According To Iec 81346-2:2019 Xga
