Siemens

6GK19011BB102AE0

6GK19011BB102AE0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6GK19011BB102AE0 Siemens

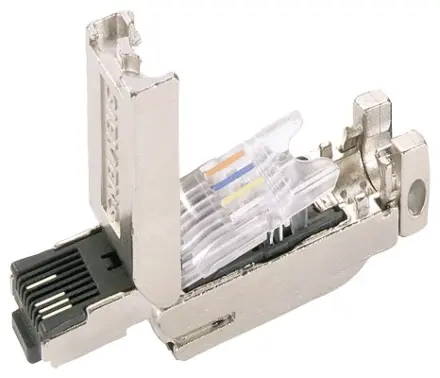

6GK19011BB102AE0 Siemens - Industrial Ethernet FastConnect RJ45 plug 180 2x 2, RJ45 plug-in connector (10/100 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC TP cable 2x 2; 180° cable outlet 1 pack = 50 units.

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6GK1901-1BB10-2AE0
Product Description Industrial Ethernet FastConnect RJ45 plug 180 2x 2, RJ45 plug-in connector (10/100 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC TP cable 2x 2; 180° cable outlet 1 pack = 50 units.
Product family CPU 1518HF-4 PN
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 20 Day/Days
Net Weight (kg) 0,035 Kg
Packaging Dimension 9,30 x 13,70 x 6,30
Package size unit of measure CM
Quantity Unit 1 Package
Packaging Quantity 50

Additional Product Information

EAN 4019169404211
UPC 662643220728
Commodity Code 85366990
LKZ_FDB/ CatalogID IK
Product Group 2430
Group Code R323
Country of origin Poland
Compliance with the substance restrictions according to RoHS directive Since: 15.05.2007
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Mechanical Data

Material / Of The Enclosure Metal
Number Of Reuses 10
Locking Mechanism Design Other
Design, Dimensions And Weights
Type Of Cable Outlet 180° Cable Outlet
Width 13.7 Mm
Height 16 Mm
Depth 55 Mm
Net Weight 35 G
Connectable Cable Cross-Section 6.5 ... 6.5 Mm
Connectable Conductor Cross-Section 0.33 Mm²

Ambient Conditions

Ambient Temperature
During Operation -40 ... +85 °C
During Storage -40 ... +85 °C
During Transport -40 ... +85 °C
Relative Humidity
At 25 °C / Without Condensation / During Operation /
Maximum 95 %
Product Features, Product Functions, S / General

Product Features, Product Functions, Product Components / General

Product Feature
Poe Capability Yes
Poe+Capability Yes
Silicon-Free Yes

Product Component

Strain Relief Yes

Standards, Specifications, Approvals

Certificate Of Suitability
Rohs Conformity Yes
Ul Approval Yes
Culus Approval Yes
Railway Application In Accordance With En 50155 No
Standard For Structured Cabling Cat5
Reference Code
According To Iec 81346-2:2019 Xga
Standards, Specifications, Approvals / Environmental Product Declaration
Environmental Product Declaration Yes
Global Warming Potential [Co2 Eq]
Total 0.277 Kg
During Manufacturing 0.263 Kg
During Operation 0.0086 Kg
After End Of Life 0.0062 Kg
