Siemens

6GK5005-0BA00-1CA3

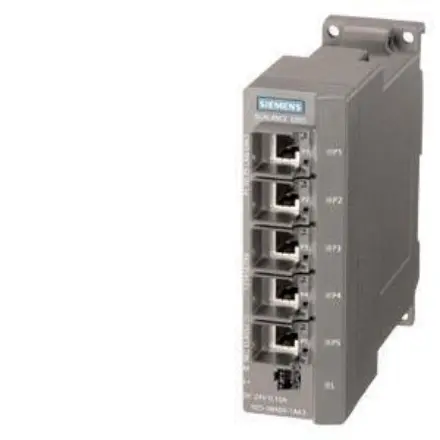

6GK5005-0BA00-1CA3 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6GK5005-0BA00-1CA3 Siemens

6GK5005-0BA00-1CA3 Siemens - ********** spare part ********* SCALANCE X005TS, IE entry Level switch unmanaged 5x 10/100 Mbit/s RJ45 ports, LED diagnostics, IP30, 24 V DC power supply, PROFINET-compliant securing collars, Extended temperature range -40 °C...+75 °C, E1 approval (EN50155), Manual available as a download .

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6GK5005-0BA00-1CA3
Product Description - - spare part - - SCALANCE X005TS, IE entry level switch unmanaged 5x 10/100 Mbps RJ45 ports, LED diagnostics, IP30, 24 V DC power supply, PROFINET-compliant securing collars, extended temperature range -40 °C...+75 °C, E1 approval (EN50155), manual available as a download .
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
PLM Effective Date Product is cancelled since: 17.03.2020
Notes The product was replaced with the following successor product: 6GK5005-0BA10-1CA3 Compare Products This product is a Spare Part, please visit the Spares & Service section for more information If you need assistance please contact our local Siemens office

Successor information

Successor 6GK5005-0BA10-1CA3
Successor Description SCALANCE X005EEC, IE entry Level switch unmanaged 5x 10/100 Mbit/s RJ45 ports, LED diagnostics, IP30, 24 V DC power supply, PROFINET-compliant securing collars, Extended temperature range -40 °C...+75 °C, E1 approval Manual available as a download .

Delivery information

Export Control Regulations ECCN : N / AL : N
Estimated dispatch time (Working Days) On request
Net Weight (kg) 0,815 Kg
Packaging Dimension 19,20 x 24,80 x 14,40
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4019169853354
UPC 040892975253
Commodity Code 85176200
LKZ_FDB/ CatalogID IK-E
Product Group X0AG
Group Code R320
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 01.10.2008
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Ambient Conditions

Ambient Temperature
During Operation -40 ... +75 °C
During Storage -40 ... +80 °C
During Transport -40 ... +80 °C
Relative Humidity
At 25 °C / Without Condensation / During Operation /
Maximum 95 %
Protection Class Ip Ip30
Design, Dimensions And Weights
Design Compact
Width 40 Mm
Height 125 Mm
Depth 124 Mm
Net Weight 0.55 Kg
Product Feature / Conformal Coating No
Fastening Method
35 Mm Top Hat Din Rail Mounting Yes
Wall Mounting Yes
S7-300 Rail Mounting Yes
S7-1500 Rail Mounting No
Product Functions / Management, Configuration, Engineering

Product Function

Multiport Mirroring No
Cos Yes
Switch-Managed No
Product Functions / Redundancy
Product Function
Parallel Redundancy Protocol (Prp)/Operation In The
Prp-Networkyes
Parallel Redundancy Protocol (Prp)/Redundant Network
Access (Rna)No

Standards, Specifications, Approvals

Certificate Of Suitability
Ce Marking Yes
Kc Approval Yes
Standard
For Safety / From Csa And Ul Ul 60950-1, Csa C22.2 No. 60950-1
Standards, Specifications, Approvals / Other
Certificate Of Suitability
E1 Approval Yes
Railway Application In Accordance With En 50155 Yes
Standards, Specifications, Approvals / Marine Classification
Marine Classification Association
American Bureau Of Shipping Europe Ltd. (Abs) Yes
French Marine Classification Society (Bv) Yes
Dnv Gl Yes
Lloyds Register Of Shipping (Lrs) Yes
Nippon Kaiji Kyokai (Nk) Yes
Polski Rejestr Statkow (Prs) Yes
Royal Institution Of Naval Architects (Rina) Yes
Product Functions / General
Mtbf 165 A
Reference Code
According To Iec 81346-2 Kf
According To Iec 81346-2:2019 Kfe
