Siemens

6GT2780-1EA10

6GT2780-1EA10 Siemens

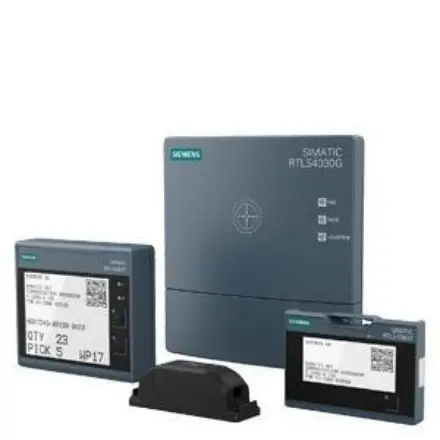

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6GT2780-1EA10 Siemens

6GT2780-1EA10 Siemens - SIMATIC RTLS Locating Manager Professional 100 for 100 transponders, Single License for 5 instances/ installations in one plant, Software and license key download ******************************* email address essential for delivery .

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6GT2780-1EA10
Product Description SIMATIC RTLS Locating Manager Professional 100 for 100 transponders, single license for 5 instances/ installations in one plant, software and license key download - - email address required for delivery .
Product family Ordering Data Overview
Product Lifecycle (PLM) PM400:Phase Out Started
PLM Effective Date Product phase-out since: 01.04.2024
Notes This product is downloadable only.

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 0,001 Kg
Packaging Dimension 1,00 x 1,00 x 1,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4047622677483
UPC Not available
Commodity Code Not available
LKZ_FDB/ CatalogID ID10.M
Product Group 4D78
Group Code R322
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Given
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Product Functions

Product Variations Localization And Communication Server Application For Simatic Rtls
Product Description For Position Determination And Tracking In Localization System Simatic Rtls
With License For 100 Transponders, All Add-On Functions And 5 Instances In A
Site/Factory
Product Options Server Applications: Network Communication Service, Network Management
Service, Localization Service, Client Communication Service, Logging Service /
Administration Tools: Network Configuration, Localization Configuration, User
Configuration / Management And Visualization: System Management, 2D View /
Integration Wizard: Automatic Detection Of New Transponders In The Wireless
Network, Assignment To Tag Groups, Autoconfig Of New Tags With Customer-
Specific Parameters, Verification Of All Tag Functions, Testing Incl. All
Connections, Creation Of A Test Protocol With Documented Test Results And File
Storage In The Archive Folder, Logoff Of Tags From Systems, Device Replacement
Of Infrastructure Incl. Automated Configuration For Routing And Positioning /
Message Management: 1. Detection And Retaining Of Events For Further
Processing, 2. Configuration Of Reactions To Events: Database Entry, Emailing,
Local Information Window, Snmp Traps, 3. Eventlogviewer For Filtering,
Searching And Display Of Database Entries / System Requirement Server:
Microsoft Windows 2016/2019 Server, System Requirement Clients: Microsoft
Windows 2016/2019 Server And Microsoft Windows 10 Pro 64-Bit / System
Requirement Database: Microsoft Sql Server 2017 / 2019, Oracle 18C / 19C /
Postgresql 11.11 / 13.2, Microsoft Sql Server 2017 Express Edition Included
(Only For Evaluation, Not For Operation)
Profinet Conformity Class F

Product Function

Web-Based Management No
Mib Support No
Traps Via Email Yes
Configuration With Step 7 No
Profinet Io Diagnosis No
Protocol / Is Supported
Ssh No
Http No
Https No
Netconf No
Dcp No
Lldp No
Snmp V1 No
Snmp V2 No
Snmp V2C No
Snmp V3 No
Igmp (Snooping/Querier) No
National Language
Of The Software German
Of The Documentation / German Yes
Of The Documentation / English Yes
Of The Documentation / French No
Of The Documentation / Chinese (Simplified) Yes
Software Requirements / Header
Operating System
Usable / Windows 10 Yes; Clients
Usable / Windows 7 No; Nur Für Clients
Usable / Windows 2016 Server Yes; Server And Clients
Usable / Windows 2012 Server No
Usable / Windows 2008 Server No; As Of R2
Usable / Windows Server 2019 Yes; Server And Clients
Browser Software / Required No
Hardware Requirements / Header
Processor Clock Frequency / Minimum 2 Hz; Ghz (Dual Core Processor)
Storage Capacity
Of The Work Memory / Required / Minimum 2000 Mibyte
On Hard Disk / Required 2 Gibyte
On Hard Disk / Recommended 100 Gibyte
