Siemens

6GT2810-2AG00

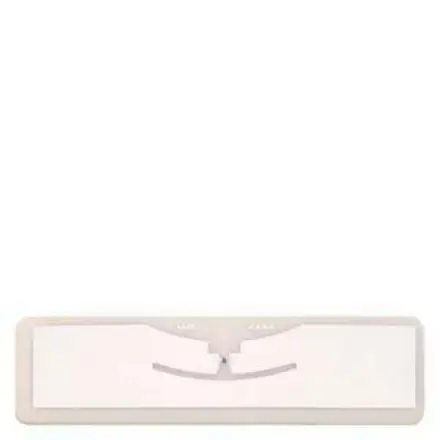

6GT2810-2AG00 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6GT2810-2AG00 Siemens

6GT2810-2AG00 Siemens - SIMATIC RF690L SmartLabel PET; 88x 25x 1.6 mm; on-metal label, heat resistant ISO 18000-6C, EPC Class 1 GEN 2, frequency 860 to 868 MHz (ETSI), Chip Type Alien Higgs 3, EPC 96 bit expandable up to 480 bits 64/16-byte add-on memory 400 units on one roll Minimum order quantity 400 units.

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6GT2810-2AG00
Product Description SIMATIC RF690L SmartLabel PET; 88x 25x 1.6 mm; on-metal label, heat resistant ISO 18000-6C, EPC Class 1 GEN 2, frequency 860 to 868 MHz (ETSI), Chip Type Alien Higgs 3, EPC 96 bit expandable up to 480 bits 64/16-byte add-on memory 400 units on one roll Minimum order quantity 400 units.
Product family RF690L
Product Lifecycle (PLM) PM400:Phase Out Started
PLM Effective Date Product phase-out since: 02.12.2020

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 0,003 Kg
Packaging Dimension 1,00 x 1,00 x 1,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1
Minimum order quantity 400

Additional Product Information

EAN 4034106025014
UPC Not available
Commodity Code 85235200
LKZ_FDB/ CatalogID ID10-A
Product Group 4372
Group Code R322
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Given
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Electrical Data

Product Component / Backup Battery No
Memory
Type Of Memory Eeprom
Storage Capacity / Of The User Memory 64 Byte
Type Of Memory Organization Epc Memory 96 Bit (12 Byte) Expandable Up To 480 Bit (60 Byte), User Memory
512 Bit (64 Byte), Reduces To 128 Bit (16 Byte) With Maximum Epc Memory, Tid
Memory 96 Bit (12 Byte)
Number Of Read Cycles / At Ambient Temperature < 40 °C /
Maximum 1E+14
Number Of Write Cycles / At Ambient Temperature < 40 °C /
Maximum 500
Data Retention Time / At Ambient Temperature < 40 °C / Not Less
Than50 A
Property Of Memory Lock, Unlock, Kill, Write Protection, Password Protection
Type Of Transponder Chip Used Alien Higgs 3

Mechanical Data

Material Top Side: Pet
Color Beige / Silver
Mounting Distance / Relating To Metal Surfaces / Recommended /
Minimum 0 Mm

Ambient Conditions

Ambient Temperature
During Read/Write Access -25 ... +85 °C
Outside The Read/Write Area -25 ... +160 °C
During Storage 13 ... 23 °C
Ambient Condition / For Operation Operating Temperature Permanent Up To +95 °C, 3 Cycles At 30 Minutes Each Or
Once 90 Minutes Up To 160 °C
Protection Class Ip Ip67
Resistance To Mechanical Stress Torsion And Bending Stress Conditionally Permissible
Design, Dimensions And Weights
Width 88 Mm
Height 1.6 Mm
Depth 25 Mm
Net Weight 5 G
Fastening Method One-Side Adhesible

Product Features, Product Functions, Product Components / General

Product Feature
Silicon-Free Yes
Tamper-Proof No
Printable Yes
Printing Process Thermal Transfer Process

Standards, Specifications, Approvals

Certificate Of Suitability
Iecex No
Reference Code
According To Iec 81346-2:2019 Cfa
