Siemens

6GT2811-6BC10-1AA0

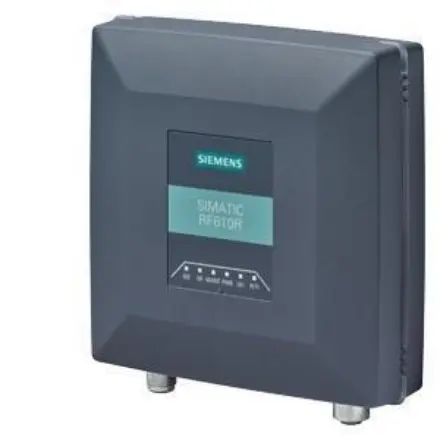

6GT2811-6BC10-1AA0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6GT2811-6BC10-1AA0 Siemens

6GT2811-6BC10-1AA0 Siemens - SIMATIC RF600 Reader RF610R FCC; interfaces: 1 Ethernet / PROFINET M12; 1 integrated antenna; 24 V DC; IP67;-25 to +55 °C without accessories.

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6GT2811-6BC10-1AA0
Product Description SIMATIC RF600 Reader RF610R FCC; interfaces: 1 Ethernet / PROFINET M12; 1 integrated antenna; 24 V DC; IP67;-25 to +55 °C without accessories.
Product family RF610R
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : 9N9999
Estimated dispatch time (Working Days) 15 Day/Days
Net Weight (kg) 0,500 Kg
Packaging Dimension 133,00 x 45,00 x 133,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4047622678046
UPC 195125033863
Commodity Code 85176200
LKZ_FDB/ CatalogID ID10.M
Product Group 4371
Group Code R322
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Given
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Electrical Data

Transmission Time / For User Data
For Write Access / Per Byte / Typical 2 Ms
For Read Access / Per Byte / Typical 0.15 Ms
Interfaces
Standard For Interfaces / For Communication Ethernet, Profinet, Opc Ua, Ethernet/Ip, Rs422
Type Of Electrical Connection
For Supply Voltage M12, 8-Pin, Connector
For Communications Interface M12, 4-Pin, D-Coded

Mechanical Data

Material Pocan
Color Silver, Ti-Grey
Mounting Distance / Relating To Metal Surfaces / Recommended /
Minimum 0 Mm
Supply Voltage, Current Consumption, Power Loss
Supply Voltage / At Dc
Rated Value 24 V
20 ... 30 V
Consumed Current / At Dc
At 24 V / Typical 0.2 A
At 24 V / Maximum 0.22 A

Ambient Conditions

Ambient Temperature
During Operation -25 ... +55 °C
During Storage -40 ... +85 °C
During Transport -40 ... +85 °C
Ambient Condition / For Operation With Operating Temperature Below -20 °C: Warming-Up Time At Least 10 Minutes
Protection Class Ip Ip67
Shock Resistance En 60068-2-27, En 60068-2-6
Shock Acceleration 250 M/S²
Vibrational Acceleration 30 M/S²
Resistance To Mechanical Stress The Maximum Values For Shock And Vibration Acceleration Must Not Occur As
Continuous Stress And They Apply Exclusively To Assembly Using Screws
Design, Dimensions And Weights
Width 133 Mm
Height 133 Mm
Depth 45 Mm
Net Weight 0.3 Kg
Fastening Method Vesa 100 With 4 X M4 Screws
Wire Length
Of Antenna Cable / Minimum 1 M
Of Antenna Cable / Maximum 40 M

Product Features, Product Functions, Product Components / General

Display Version Led Bars With 6 Led And 1 Circulating Led
Protocol / Is Supported / Media Redundancy Protocol (Mrp) Yes
Product Function / Of The Profinet Io Device / Is Supported / H-
Sync Forwardingno
Protocol / Is Supported
Lldp Yes
Profinet Io Protocol Yes
Tcp/Ip Yes
Snmp V1 Yes
Snmp V2 No
Snmp V3 Yes
Dcp Yes
Ethernet/Ip Protocol Yes
Opc Ua Yes
Product Feature / Silicon-Free Yes

Standards, Specifications, Approvals

Certificate Of Suitability Wireless According To Fcc, Ic (Canada), Culus, Opc Ua: Embedded Ua
Server Profile
Certificate Of Suitability
Iecex No
Mtbf 29 A
Reference Code
According To Iec 81346-2:2019 Byb
