Siemens

6NH3112-3BA00-0XX0

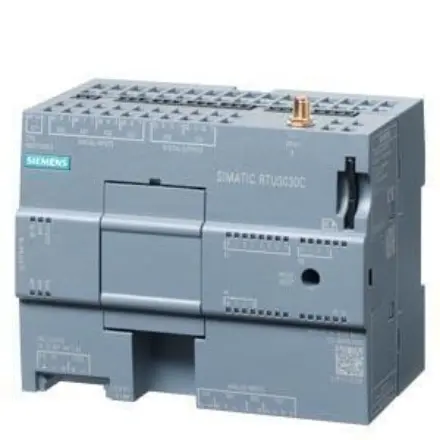

6NH3112-3BA00-0XX0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6NH3112-3BA00-0XX0 Siemens

6NH3112-3BA00-0XX0 Siemens - ********** spare part ********* SIMATIC RTU3030C compact low-power RTU; battery or solar-operated; connection external power supply 10.8 V to 28.8 V DC; integrated UMTS modem; connection to TeleControl Server Basic; loadable protocols: DNP3, IEC 60870-5-104, SINAUT ST7 or MQTT; onboard I/Os: 8 DI, 4 DO, 4 AI; FTP client; Ethernet port, configuration / diagnostics via web server, time synchronization, SMS, email, SD card slot. Observe national approvals!

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6NH3112-3BA00-0XX0
Product Description - - spare part - - SIMATIC RTU3030C compact low-power RTU; battery or solar-operated; connection external power supply 10.8 V to 28.8 V DC; integrated UMTS modem; connection to TeleControl Server Basic; loadable protocols: DNP3, IEC 60870-5-104, SINAUT ST7 or MQTT; onboard I/Os: 8 DI, 4 DO, 4 AI; FTP client; Ethernet port, configuration / diagnostics via web server, time synchronization, SMS, email, SD card slot. Observe national approvals!
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
PLM Effective Date Product is cancelled since: 01.10.2023
Notes Sucessor:See SIOS ID 109816954 This product is a Spare Part, please visit the Spares & Service section for more information If you need assistance please contact our local Siemens office

Delivery information

Export Control Regulations ECCN : N / AL : N
Estimated dispatch time (Working Days) 5 Day/Days
Net Weight (kg) 0,456 Kg
Packaging Dimension 130,00 x 75,00 x 100,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4047622242674
UPC 804766214264
Commodity Code 85176200
LKZ_FDB/ CatalogID IK-E
Product Group X0AI
Group Code R322
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Given
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Ambient Conditions

Ambient Temperature
For Vertical Installation / During Operation -40 ... +60 °C
For Horizontally Arranged Busbars / During Operation -40 ... +70 °C
During Storage -40 ... +70 °C
During Transport -40 ... +70 °C
Relative Humidity
At 30 °C / Without Condensation / During Operation /
Maximum 95 %
Protection Class Ip Ip20; Ip68 With Protective Housing (See Accessories)
Design, Dimensions And Weights
Module Format Compact Module
Width 130 Mm
Height 100 Mm
Depth 75 Mm
Net Weight 0.37 Kg
Fastening Method
35 Mm Top Hat Din Rail Mounting Yes
Product Features, S, Product Components / General

Product Function

Dyndns Client Yes
No-Ip.Com Client Yes
Product Functions / Cloud Connectivity
Protocol / Is Supported
Message Queuing Telemetry Transport (Mqtt) Yes
Product Function / For Cloud Connectivity
Trigger Management Yes
Time Stamping Yes
Product Feature / For Cloud Connectivity / Buffered Message
Frame Memoryyes
Performance Data
Number Of Users/Telephone Numbers/Email Addresses /
Definable / Maximum20
Number Of User Groups / Definable / Maximum 10
Number Of Program Block Types 43
Number Of Configurable Program Blocks 48
Number Of Digital Bit Memories / Maximum 40
Number Of Analog Bit Memories / Maximum 24
Performance Data / It Functions
Number Of Possible Connections
As Client / By Means Of Ftp / Maximum 1
Number Of Entries / In The Ftp Buffer / Maximum 12
Number Of Possible Connections
As Server / By Means Of Http / Maximum 2
As Server / By Means Of Https / Maximum 2; Http And Https Can Be Combined (Max. Number Of 2 Connections Cannot Be
Exceeded). Max. One Connection Via Https Is Possible On The Mobile Wireless
Interface.
As Email Client / Maximum 1
Number Of Free Texts / For Emails And Sms / Maximum 20
Number Of Characters / Per Free Text For Emails Or Sms /
Maximum 160
Number Of Entries / In The Email Buffer / Maximum 12
Performance Data / Telecontrol
Suitability For Use
Node Station No
Substation Yes
Tim Control Center No
Control Center Connection Iec 60870-5-104, Dnp3-Capable Stations, Sinaut St7Cc/Sc,
Telecontrol Server Basic
By Means Of A Permanent Connection Supported
By Means Of Demand-Oriented Connection Supported
Protocol / Is Supported
Dnp3 Yes
Iec 60870-5 Yes
Sinaut St7 Protocol Yes
Product Function / Data Buffering If Connection Is Aborted Yes; Number Of Telegrams For: Iec 60870: Approx. 5,000, Dnp3: Approx.
10,900, Sinaut St7: Approx. 7,700, Telecontrol Server Basic: Approx. 10.900
Data Volume / As User Data Per Station / In Telecontrol Mode /
Maximum 256 Kibyte
Product Feature / Buffered Message Frame Memory Yes
Performance Data / Teleservice
Diagnostics Function / Online Diagnostics With Simatic Step 7 No
Product Function
Program Download With Simatic Step 7 No
Remote Firmware Update Yes
Remote Configuration Yes
Product Functions / Management, Configuration, Engineering
Configuration Software
Required No, Configuration By Using The Integrated Webserver
Product Function / Gateway / For Simatic Pdm
With Modbus Tcp Yes
With Hart-Ip Protocol Yes
Product Functions / Diagnostics
Product Function / Web-Based Diagnostics Yes
Product Functions / Security
Operating Mode / Virtual Private Network (Vpn) Yes; Openvpn Client
Product Function / With Vpn Connection Openvpn
Type Of Encryption Algorithms / With Vpn Connection Aes-128, Aes-256
Type Of Authentication Procedure / With Vpn Connection Certificate Based
Type Of Authentication / With Virtual Private Network / Psk No
Type Of Hashing Algorithms / With Vpn Connection Sha-256
Number Of Possible Connections / With Vpn Connection 2; One Simultaneous Productive Connection Only
Product Function
Password Protection For Web Applications Yes
Password Protection For Teleservice Access Yes
Password Protection For Vpn Yes
Encrypted Data Transmission Yes
Switch-Off Of Non-Required Services Yes
Syslog Yes
Product Functions / Time
Protocol / Is Supported
Ntp Yes
Product Component / Hardware Real Time Clock Yes
Product Feature / Hardware Real Time Clock W. Battery Backup Yes
Accuracy / Of The Hardware Real Time Clock / Per Day / Maximum 1.8 S

Time Synchronization

From Ntp-Server Yes
From Control Center Yes
From Mobile Network Provider Yes
Pc Yes
Manual Setting Yes
