Siemens

6NH7800-4BA00

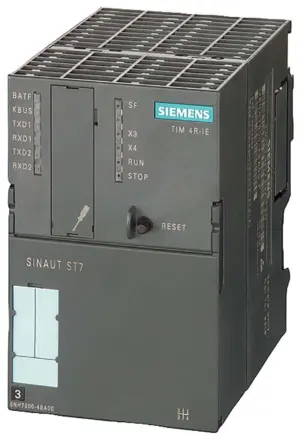

6NH7800-4BA00 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6NH7800-4BA00 Siemens

6NH7800-4BA00 Siemens - SINAUT ST7, TIM 4R-IE communications module for SIMATIC S7-300, S7-400, PC; with two RS232/RS485 interfaces for SINAUT Communication via standard WAN networks and two RJ45 interfaces for SINAUT communication via IP-based networks (WAN or LAN).

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6NH7800-4BA00
Product Description SINAUT ST7, TIM 4R-IE communications module for SIMATIC S7-300, S7-400, PC; with two RS232/RS485 interfaces for SINAUT Communication via standard WAN networks and two RJ45 interfaces for SINAUT communication via IP-based networks (WAN or LAN).
Product family TIM 4R-IE (for S7-300/-400/PC)
Product Lifecycle (PLM) PM400:Phase Out Started
PLM Effective Date Product phase-out since: 01.10.2023
Notes The product was replaced with the following successor product: 6GK7543-1MX00-0XE0 Compare Products

Successor information

Successor 6GK7543-1MX00-0XE0
Successor Description TIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS-232/RS-485 interface for communication via classic wide area networks.

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 0,473 Kg
Packaging Dimension 80,00 x 120,00 x 125,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4019169150828
UPC 662643426380
Commodity Code 85176200
LKZ_FDB/ CatalogID IK-A
Product Group 2461
Group Code R322
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Given
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | Tris(4-nonylphenyl, branc... > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Tris(4-nonylphenyl, branched and linear) phosphite (TNPP) with greater than or equal to 0.1% w/w of 4-nonylphenol, branched and linear (4-NP) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Ambient Conditions

Ambient Temperature
During Operation 0 ... 60 °C
During Storage -40 ... +70 °C
During Transport -40 ... +70 °C
Relative Humidity
At 25 °C / Without Condensation / During Operation /
Maximum 95 %
Protection Class Ip Ip20
Design, Dimensions And Weights
Module Format Compact Module S7-300 Double Width
Width 80 Mm
Height 125 Mm
Depth 120 Mm
Product Features, S, Product Components / General

Product Features, Product Functions, Product Components / General

Number Of Units
Note Number Of Tim 4R ‑Ie Per S7‑300/S7-400: Multiple, Number Depends On The
Connection Resources Of The Cpu
Wire Length
With Rs 232 Interface / Maximum 6 M
With Rs 485 Interface / Maximum 30 M
Performance Data / S7 Communication
Number Of Possible Connections / For S7 Communication
Maximum 64
With Pg Connections / Maximum 2
With Op Connections / Maximum 62
Service
Sinaut St7 Via S7 Communication Yes
Pg/Op Communication Yes
Performance Data / Multi-Protocol Mode
Number Of Active Connections / With Multi-Protocol Mode 128
Performance Data / Telecontrol
Suitability For Use
Node Station Yes
Substation Yes
Tim Control Center Yes
Protocol / Is Supported
Dnp3 No
Sinaut St1 Protocol Yes
Sinaut St7 Protocol Yes
Product Function / Data Buffering If Connection Is Aborted Yes; 56,000 Data Messages
Storage Capacity
Of S7 Cpu Work Memory / For Td7Oncpu Mode Data
Blocks On Cpu / Required20 Kibyte
Of S7 Cpu Work Memory / For Td7Ontim Mode Data
Blocks On Tim / Required0 Kibyte
Note Td7Oncpu: At Least 20 Kb, Actual Requirement Determined By Data Volume And
Functional Scope Td7Ontim: 0 Bytes In Most Favorable Case
Product Feature / Buffered Message Frame Memory Yes
Transmission Format
For Sinaut St1 Protocol With Polling / 11 Bit Yes
For Sinaut St1 Protocol With Spontaneous / 10-Bit Or 11-
Bityes
For Sinaut St7 Protocol With Multi-Master Polling / 10-Bit Yes
For Sinaut St7 Protocol With Polling Or Spontaneous /
10-Bit Or 11-Bityes
Operating Mode For Scanning Of Data Transmission
With Dedicated Line/Radio Link / With Sinaut St1 Protocol Polling, Polling With Time Slot Procedure
With Dedicated Line/Radio Link / With Sinaut St7 Protocol Polling, Polling With Time Slot Procedure, Multi-Master Polling With Time Slot
Procedure
With Dial-Up Network / With Sinaut St1 Protocol Spontaneous
With Dial-Up Network / With Sinaut St7 Protocol Spontaneous
Hamming Distance
For Sinaut St1 Protocol 4
For Sinaut St7 Protocol 4
Product Functions / Management, Configuration, Engineering
Configuration Software
Required Sinaut St7 Es
For Cpu Configuring / Required / Sinaut Td7 Block Library
For Cpuyes
For Pg Configuring / Required / Sinaut St7 Configuration
Software For Pgyes
Storage Location / Of Tim Configuration Data On Internal Tim Flash Memory, Or On Tim In Optional C ‑Plug, Or On Mmc Of
The S7-300 Cpu If Tim Installed In S7-300 Controller
Product Functions / Security
Operating Mode / Virtual Private Network (Vpn) Yes
Type Of Authentication / With Virtual Private Network / Psk Yes

Product Function

Password Protection For Vpn Yes
Msc Client Via Gprs Modem With Msc Capability Yes
Protocol
Is Supported / Msc Protocol Yes
With Virtual Private Network Msc / Is Supported Tcp/Ip
Key Length / For Msc / With Virtual Private Network 128 Bit
Number Of Possible Connections
As Msc Client / With Vpn Connection 1
As Msc Server / With Vpn Connection 128
Product Functions / Time
Product Component / Hardware Real Time Clock Yes
Product Feature / Hardware Real Time Clock W. Battery Backup Yes
Accuracy / Of The Hardware Real Time Clock / Per Day / Maximum 4 S

Time Synchronization

From Ntp-Server Yes

Standards, Specifications, Approvals

Reference Code
According To Iec 81346-2:2019 Kec
