Siemens

6SL3040-0JA00-0AA0

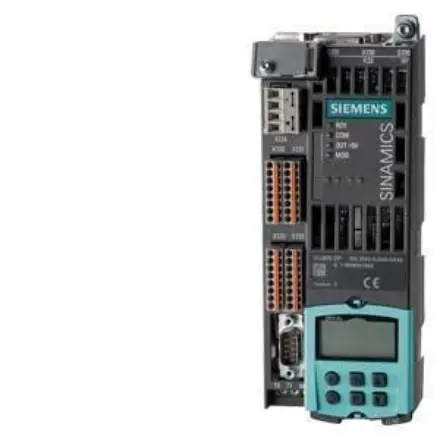

6SL3040-0JA00-0AA0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6SL3040-0JA00-0AA0 Siemens

6SL3040-0JA00-0AA0 Siemens - SINAMICS S110 CONTROL UNIT CU305 DP WITH PROFIBUS INTERFACE WITHOUT MEMORY CARD

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6SL3040-0JA00-0AA0
Product Description SINAMICS S110 CONTROL UNIT CU305 DP WITH PROFIBUS INTERFACE WITHOUT MEMORY CARD
Product family Not available
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : 9N9999
Estimated dispatch time (Working Days) 15 Day/Days
Net Weight (kg) 0,550 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4025515010562
UPC 662643355413
Commodity Code 85049090
LKZ_FDB/ CatalogID D21MC
Product Group 9608
Group Code R220
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 29.10.2015
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Inputs / Outputs

Digital Inputs
Number 5
Voltage -3 ... 30 V
Low Level -3 ... 5 V
High Level 15 ... 30 V
Power Consumption At 24 V Dc, Typ. 6.0 Ma
Delay Time L→H, Typ. 1)15 Μs
Delay Time H→L, Typ. 1)55 Μs

Fail-Safe Digital Inputs

Number 2)3

Digital I/O

Number 3)4

As Input

Voltage -3 ... 30 V
Low Level -3 ... 5 V
High Level 15 ... 30 V
Power Consumption At 24 V Dc, Typ. 6.0 Ma
Delay Time L→H 1)5 Μs
Delay Time H→L 1)5 Μs

As Output

Continuous Short-Circuit Proof Yes
Voltage Dc 24 V
Load Current Per Digital Output ,
Max.100 Ma
Delay Time, Approx. 150 Μs

As Fail-Safe Digital Output

Number 1

Analog Inputs

Number 1
Voltage -10 ... 10 V
Resolution 12 Bit + Sign
Internal Resistor 15 Kohm

Electrical Data

Power Supply Voltage Dc 24 V -15 % + 20 %
Max. Power Consumption 5)0.8 A
Power Loss , Max. 20 W
Protection, Max. 20 Acommunication
Communication Profibus Dp

On-Board Encoder Interface

Encoder Evaluation Optional Incremental Encoder Ttl/Htl
Or Encoder Ssi Without Incremental
Signals
Current Consumption At 24 V Dc 0.35 A
Current Consumption At 5 V Dc 0.35 A
Encoder Frequency, Max. 500 Khz
Ssi Baudrate 100 ... 250 Kbaud
The Baud Rate Depends On Cable Length
Ssi Absolute Position Resolution 30 Bit

Line Length, Max.

Ttl Encoder 6)100 M (328.08 Ft)
Htl Encoder Unipolar Signal 100 M (328.08 Ft)
Htl Encoder Bipolar Signal 300 M (984.25 Ft)
Ssi Encoder 100 M (328.08 Ft)

Environmental Conditions

Installation Altitude 1,000 M (3,280.84 Ft)

Ambient Temperature During

Operation 0 ... 55 °C (32 ... 131 °F)
Storage -25 ... 70 °C (-13 ... 158 °F)
Transport -40 ... 70 °C (-40 ... 158 °F)

Relative Humidity During

Transport , Max. 95 % At 40 °C (104 °F)

Connections

Pe Connection M5 Screw
Supply Voltage, Max. 2.5 Mm² (Awg 14)
Digital Inputs, Max. 1.5 Mm² (Awg 16)
Digital Inputs/Outputs, Max. 1.5 Mm² (Awg 16)

Mechanical Data

Net Weight 0.95 Kg (2.09 Lb)

Dimensions

Width 73.0 Mm (2.87 In)
Height 183.2 Mm (7.21 In)
Depth 55.0 Mm (2.17 In)

Standards

Compliance With Standards Culus
Article No. : 6Sl3040-0Ja00-0Aa0
Technical Data Are Subject To Change! There May Be Discrepancies Between Calculated And Rating Plate Values. Page 2 Of 2 Generated Mon Dec 23 10:17:39 Cet 2024Figure Similar
1)The Specified Delay Times Refer To The Hardware. The Actual Reaction Time Depends On The Time Slot In Which The Digital Input Or Output Is Processed.
2)3 Parameterizable, Fail-Safe Digital Inputs (Floating), Or Alternatively 6 Parameterizable Digital Inputs (Floating)
3)Can Be Parameterized - As Di - As Do
5)Power Requirement 0.8 A For Cu305 Incl. 350 Ma For Htl Encoder + 0.5 A For Pm340
6)Ttl Only Bipolar Signals; For Bipolar Signals, The Signal Lines Must Be Twisted In Pairs And Shielded
