Siemens

6SL3210-5BB13-7UV0

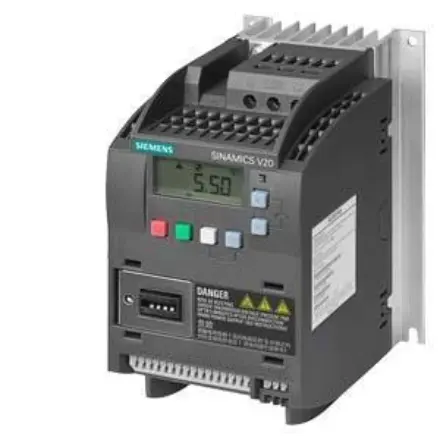

6SL3210-5BB13-7UV0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6SL3210-5BB13-7UV0 Siemens

6SL3210-5BB13-7UV0 Siemens - ****spare part**** 200-240 V 1-phase AC -10/+10 rated power 0.37 kW with 150% overload for 60 s unfiltered I/O: 4 DI, 2 DO, 2 AI, 1 AO fieldbus: USS/MODBUS RTU with built-in BOP degree of protection IP20/UL open size: A 90x150x146 (WxHxD)

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6SL3210-5BB13-7UV0
Product Description ****spare part**** 200-240 V 1-phase AC -10/+10 rated power 0.37 kW with 150% overload for 60 s unfiltered I/O: 4 DI, 2 DO, 2 AI, 1 AO fieldbus: USS/MODBUS RTU with built-in BOP degree of protection IP20/UL open size: A 90x150x146 (WxHxD)
Product family Not available
Product Lifecycle (PLM) PM490:Start of final year of support
PLM Effective Date Product discontinued since: 01.10.2017
Notes Product is no longer available. Successor: 6SL3210-5BB13-7UV1 Compare Products

Successor information

Successor 6SL3210-5BB13-7UV1
Successor Description SINAMICS V20 200-240V 1AC -10/+10% 47-63Hz rated power 0.37 kW with 150% overload for 60 sec. unfiltered I/O: 4 DI, 2 DO,2 AI, 1 AQ fieldbus: USS/MODBUS RTU with built-in BOP protection: IP20/ UL open size: AA 68x142x108 (WxHxD)

Delivery information

Export Control Regulations ECCN : EAR99 / AL : N
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 1,000 Kg
Packaging Dimension 120,00 x 225,00 x 180,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 6940408102880
UPC Not available
Commodity Code 85044085
LKZ_FDB/ CatalogID SINAMICS V20
Product Group 5680
Group Code R220
Country of origin China
Compliance with the substance restrictions according to RoHS directive Since: 05.07.2010
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Rated Data

Input
Number Of Phases 1 Ac
Line Voltage 200 ... 240 V -10 % +10 %
Line Frequency 47 ... 63 Hz
Output
Number Of Phases 3 Ac
Rated Voltage 230V Iec 240V Nec 1)
Rated Power (Lo) 0.37 Kw 0.50 Hp
Rated Power (Ho) 0.37 Kw 0.50 Hp
Rated Current (Lo) 2.30 A 2.30 A
Rated Current (Ho) 2.30 A 2.30 A
Rated Current (In) 2.30 A
Pulse Frequency 8.00 Khz
Output Frequency 0 ... 550 Hz
Overload Capability
Low Overload (Lo)
110 % Rated Output Current For 60 S, Cycle Time 300 S
High Overload (Ho)
150 % Rated Output Current For 60 S, Cycle Time 300 S

General Tech. Specifications

Power Factor Λ 0.72
Offset Factor Cos Φ 0.95
Efficiency Η 0.98
Filter Class (Integrated) Unfiltered

Communication

Communication Uss, Modbus Rtu

Inputs / Outputs

Standard Digital Inputs
Number 4
Digital Outputs
Number As Relay Changeover Contact 1
Number As Transistor 1

Analog Inputs

Number2 (Can Be Used As Additional Digital
Input)
Analog Outputs
Number 1Ambient Conditions
Cooling Convection Cooling
Installation Altitude 1,000 M (3,280.84 Ft)
Ambient Temperature
Operation 2)-10 ... 60 °C (14 ... 140 °F)
Storage -40 ... 70 °C (-40 ... 158 °F)
Relative Humidity
Max. Operation 95 %

Max. Motor Cable Length

Shielded 25 M (82.02 Ft)
Unshielded 50 M (164.04 Ft)

Mechanical Data

Mounting Position Wall Mounting / Side-By-Side Mounting
Degree Of Protection Ip20 / Ul Open Type
Frame Size Fsa
Net Weight 1.00 Kg (2.20 Lb)

Dimensions

Width 90.0 Mm (3.54 In)
Height 150.0 Mm (5.91 In)
Depth 145.5 Mm (5.73 In)

Standards

Compliance With Standards Ce, Culus, C-Tick (Rcm), Kc
Ce Marking En 61800-5-1 /En 60204-1 And En
61800-3
1)The Output Current And Hp Ratings Are Valid For The Voltage Range 220V-240V
2)Please Observe Derating At Temperatures Of 40 °C Or Above
