Siemens

6SL3210-5DE21-8UA0

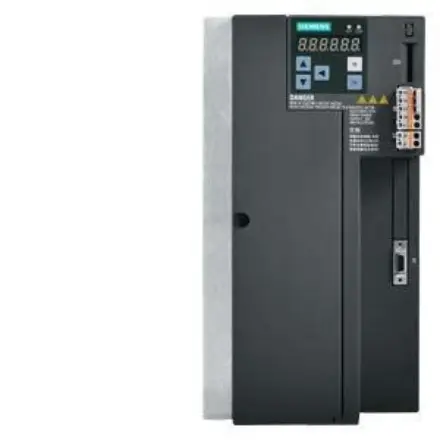

6SL3210-5DE21-8UA0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6SL3210-5DE21-8UA0 Siemens

6SL3210-5DE21-8UA0 Siemens - SINAMICS V70 Input voltage: 380-480 V 3 A -15%/+10% 16.5 A 45-66 Hz Output voltage: 0 – Input 13.2 A 0-330 Hz Motor: 5.0/7.0 kW Degree of protection: IP20 Size C, 140x260x240 (WxHxD)

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6SL3210-5DE21-8UA0
Product Description SINAMICS V70 Input voltage: 380-480 V 3 A -15%/+10% 16.5 A 45-66 Hz Output voltage: 0 – Input 13.2 A 0-330 Hz Motor: 5.0/7.0 kW Degree of protection: IP20 Size C, 140x260x240 (WxHxD)
Product family SINAMICS V70 servo drive
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : 9N9999
Estimated dispatch time (Working Days) 3 Day/Days
Net Weight (kg) 5,725 Kg
Packaging Dimension 140,00 x 240,00 x 260,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN Not available
UPC 887621426668
Commodity Code 85044095
LKZ_FDB/ CatalogID SINAMICS V70
Product Group 3504
Group Code R220
Country of origin China
Compliance with the substance restrictions according to RoHS directive Since: 05.07.2010
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Mechanical Data

5.65 Kg ( 12.46 Lb )
240.0 Mm ( 9.45 In )Widthnet Weight70.00 W
Conductor Cross-Section
Depth 140.0 Mm ( 5.51 In )Standardscooling Air Requirement 0.005 M³/S ( 0.177 Ft³/S )
Transport -40 ... 70 °C (-40 ... 158 °F)

Connections

Frame Size Fscpower Supplyelectronic Power Supply
24 V ±10 %
Technical Data Are Subject To Change! There May Be Discrepancies Between Calculated And Rating Plate Values.
Generated Mon Dec 23 13:50:41 Cet 2024 Page 1 Of 1
