Siemens

6SL3210-5HB10-8UF0

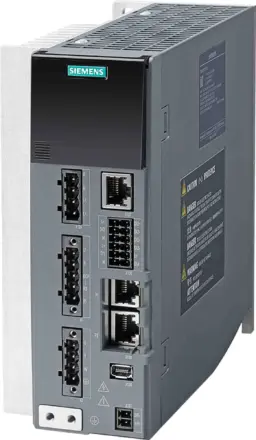

6SL3210-5HB10-8UF0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6SL3210-5HB10-8UF0 Siemens

6SL3210-5HB10-8UF0 Siemens - SINAMICS S210 Input voltage: 200-240 V 1AC; -10%/+10%; 9.3 A; 45-66 Hz; Output voltage: 0-input V; 4.4 A; 0-550 Hz; Motor: 0.75 kW; Degree of protection: IP20; Frame size C; 75 x 170 x 195 (WxHxD)

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6SL3210-5HB10-8UF0
Product Description SINAMICS S210 Input voltage: 200-240 V 1AC; -10%/+10%; 9.3 A; 45-66 Hz; Output voltage: 0-input V; 4.4 A; 0-550 Hz; Motor: 0.75 kW; Degree of protection: IP20; Frame size C; 75 x 170 x 195 (WxHxD)
Product family SINAMICS S210 servo converters
Product Lifecycle (PLM) PM400:Phase Out Started
PLM Effective Date Product phase-out since: 01.10.2024
Notes The product was replaced with the following successor product: 6SL5310-1BB10-8CF0 Compare Products

Successor information

Successor 6SL5310-1BB10-8CF0
Successor Description SINAMICS S210 input voltage: 200-240 V 1AC; -10%/+10%; 9.3 A; 45-66 Hz; output voltage: 0-input V 4.4 A; 0-550 Hz; motor: 0.75 kW; degree of protection: IP20; frame size C; 75 x 170 x 195 (WxHxD)

Delivery information

Export Control Regulations AL : N / ECCN : 3A999A
Estimated dispatch time (Working Days) 5 Day/Days
Net Weight (kg) 1,700 Kg
Packaging Dimension 235,00 x 270,00 x 100,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4042948675779
UPC 804766544545
Commodity Code 85044095
LKZ_FDB/ CatalogID D32
Product Group 9019
Group Code R220
Country of origin China
Compliance with the substance restrictions according to RoHS directive Since: 31.05.2017
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead monoxide (lead oxide) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Rated Data

Ambient Conditionsinput
Outputambient Temperature During
Relative Humidity Duringnumber Of Phases
Max. Operationstoragetransportoperationcoolinginstallation Altitude
Rated Power Number Of Phasesline Voltage
Line Frequency
Rated Current
Rated Current In
Pulse Frequencymax. Output Current
Output Frequency For Servo Control0.75 Kw
8 Khz4.4 A
16.0 A9.3 A1000 M (3280.84 Ft)
Convection Coolingconsignment No. :
Remarks :Item No. :
Offer No. :Order No. :
Project :Client Order No. :
1 Ac
3 Ac200 ... 240 V ±10 %
45 ... 66 Hz
0 ... 550 Hz
95 %-25 ... 55 °C (-13 ... 131 °F)-40 ... 70 °C (-40 ... 158 °F)0 ... 50 °C (32 ... 122 °F)
Rh, Condensation Not Permittedbetter Than Class 3K3, In Acc. With En
60721-3-3: 2002, Without Derating
Class 2K4, In Acc. With En 60721-3-2:
1997, In Transport Packaging
Class 1K4, In Acc. With En 60721-3-1:
1997, In Product Packaging
95 %Transport, Max.
Bearing, Max.At 40 °C (104 °F)95 %8.0 A
Voltage Inrush Current
Electronics Power Supply
24 V -15 % ... +20 %Communicationcommunication
Profinet
0.8 A Current Demand, Max.
Technical Data Are Subject To Change! There May Be Discrepancies Between Calculated And Rating Plate Values.
Generated Mon Dec 23 13:53:12 Cet 2024Page 1 Of 2
6Sl3210-5Hb10-8Uf0Data Sheet For Sinamics S210
Mlfb-Ordering Data
Figure Similar
Compliance With Standards
Ce Marking Standards
Low-Voltage Directive 2006/95/Ecce, Culus, Rcm, Kc, Eac, Ukcamechanical Data
197.4 Mm (7.77 In)
Degree Of Protection Ip20 / Ul Open Type74.5 Mm (2.93 In)
Height Without Shield Plate
Net Weight 1.70 Kg (3.75 Lb )Depth
Frame Sizewidth
170.0 Mm (6.69 In)
Fscpush-In Spring-Type Terminalsversion
Version
Conductor Cross-Section 0.20 ... 2.50 Mm² / 24 ... 14 Awgversion0.20 ... 2.50 Mm² / 24 ... 14 Awg
Max. Motor Cable Length 1)Conductor Cross-Sectionconnections
Push-In Spring-Type Terminals

Motor End

50 M (164.04 Ft)3 M (9.84 Ft)Line Side
Cable Lengthconductor Cross-Section
Dc Link (For Braking Resistor)
Push-In Spring-Type Terminals0.20 ... 2.50 Mm² / 24 ... 14 Awg
Shielded 5 Numberinputs / Outputs
Standard Digital Inputs
Of Which 2 For F-Di
1 Numberfail-Safe Digital Inputs
Can Only Be Used For Sto/Ss1

Dimensions

Mounting Position Vertical Wall Mountingversionpe Connection
M4 Screw Studs
Verification Of Suitability For Fail-
Safetysil 2 In Acc. With Iec 61508 Parts 1-3
(2010) And Iec 61800-5-2 (2016), Pl
D In Acc. With Iso 13849 Part 1
(2015), Category 3 In Acc. With Iso
13849 Part 1 (2015)
1) Cable Length With Possibility Of Connection An External Filter
Technical Data Are Subject To Change! There May Be Discrepancies Between Calculated And Rating Plate Values.
Generated Mon Dec 23 13:53:12 Cet 2024Page 2 Of 2
