Siemens

6SL3220-1YE12-1UP0

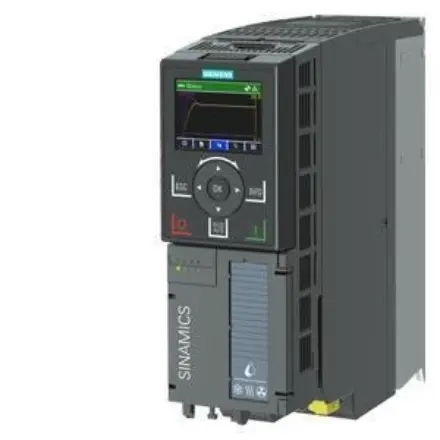

6SL3220-1YE12-1UP0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6SL3220-1YE12-1UP0 Siemens

6SL3220-1YE12-1UP0 Siemens - SINAMICS G120X Rated power: 1.1 kW At 110% 60s, 100% 240 s Unfiltered 380-480 V 3 AC +10/-20% 47-63 Hz Ambient temperature -20 to +45 °C Size: FSA Degree of protection IP20 / UL open type Paint finish 3C2 Without operator panel with IO expansions Fieldbus integrated: PROFIBUS DP

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6SL3220-1YE12-1UP0
Product Description SINAMICS G120X Rated power: 1.1 kW At 110% 60s, 100% 240 s Unfiltered 380-480 V 3 AC +10/-20% 47-63 Hz Ambient temperature -20 to +45 °C Size: FSA Degree of protection IP20 / UL open type painting 3C2 without operator panel with IO expansions Fieldbus integrated: PROFIBUS DP
Product family Not available
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations ECCN : N / AL : N
Estimated dispatch time (Working Days) 10 Day/Days
Net Weight (kg) 3,900 Kg
Packaging Dimension 196,00 x 347,00 x 370,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4042948680094
UPC 804766999567
Commodity Code 85044095
LKZ_FDB/ CatalogID D11.1SDSP
Product Group 4R51
Group Code R220
Country of origin Great Britain
Compliance with the substance restrictions according to RoHS directive Since: 01.07.2006
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Rated Data

Input
Number Of Phases 3 Ac
Line Voltage 380 ... 480 V +10 % -20 %
Line Frequency 47 ... 63 Hz
Rated Voltage 400V Iec 480V Nec
Rated Current (Lo) 2.80 A 2.70 A
Rated Current (Ho) 2.10 A 2.00 A
Output
Number Of Phases 3 Ac
Rated Voltage 400V Iec 480V Nec 1)
Rated Power (Lo) 1.10 Kw 1.50 Hp
Rated Power (Ho) 0.75 Kw 1.00 Hp
Rated Current (Lo) 3.10 A 3.00 A
Rated Current (Ho) 2.20 A 2.10 A
Rated Current (In) 3.20 A
Max. Output Current 3.40 A
Pulse Frequency 4 Khz
Output Frequency For Vector Control 0 ... 200 Hz
Output Frequency For V/F Control 0 ... 550 Hz
Overload Capability
Low Overload (Lo)
110% Base Load Current Il For 60 S In A 300 S Cycle Time
High Overload (Ho)
150% X Base Load Current Ih For 60 S Within A 600 S Cycle Time

General Tech. Specifications

Power Factor Λ 0.70 ... 0.85
Offset Factor Cos Φ 0.96
Efficiency Η 0.97
Sound Pressure Level (1M) 55 Db
Power Loss 3)0.055 Kw
Filter Class (Integrated) Unfiltered
Emc Category (With Accessories) Without
Safety Function "Safe Torque Off"Without Sirius Device (E.G. Via S7-
1500F)

Communication

Communication Profibus Dpinputs / Outputs
Standard Digital Inputs
Number 6
Switching Level: 0 → 1 11 V
Switching Level: 1 → 0 5 V
Max. Inrush Current 15 Ma

Fail-Safe Digital Inputs

Number 1
Digital Outputs
Number As Relay Changeover Contact 2
Output (Resistive Load) Dc 30 V, 5.0 A
Number As Transistor 0
Analog / Digital Inputs
Number 2 (Differential Input)
Resolution 10 Bit
Switching Threshold As Digital Input
0 → 1 4 V
1 → 0 1.6 V
Analog Outputs
Number 1 (Non-Isolated Output)
Ptc/ Kty Interface
1 Motor Temperature Sensor Input, Sensors That Can Be Connected Ptc, Kty And
Thermo-Click, Accuracy ±5 °C
Closed-Loop Control Techniques
V/F Linear / Square-Law / Parameterizable Yes
V/F With Flux Current Control (Fcc) Yes
V/F Eco Linear / Square-Law Yes
Sensorless Vector Control Yes
Vector Control, With Sensor No
Encoderless Torque Control No
Torque Control, With Encoder No
Article No. : 6Sl3220-1Ye12-1Up0
Technical Data Are Subject To Change! There May Be Discrepancies Between Calculated And Rating Plate Values. Page 2 Of 3 Generated Mon Dec 23 14:36:06 Cet 2024

Ambient Conditions

Standard Board Coating Typeclass 3C2, According To Iec 60721-3-3:
2002
Cooling Air Cooling Using An Integrated Fan
Cooling Air Requirement 0.005 M³/S (0.177 Ft³/S)
Installation Altitude 1,000 M (3,280.84 Ft)
Ambient Temperature
Operation -20 ... 45 °C (-4 ... 113 °F)
Transport -40 ... 70 °C (-40 ... 158 °F)
Storage -25 ... 55 °C (-13 ... 131 °F)
Relative Humidity
Max. Operation95 % At 40 °C (104 °F), Condensation
And Icing Not Permissible

Connections

Signal Cable
Conductor Cross-Section 0.15 ... 1.50 Mm²
(Awg 24 ... Awg 16)

Line Side

Version Screw-Type Terminal
Conductor Cross-Section 1.50 ... 2.50 Mm²
(Awg 16 ... Awg 14)

Motor End

Version Screw-Type Terminals
Conductor Cross-Section 1.50 ... 2.50 Mm²
(Awg 16 ... Awg 14)
Dc Link (For Braking Resistor)
Pe Connection On Housing With M4 Screw

Max. Motor Cable Length

Shielded 150 M (492.13 Ft)
Unshielded 300 M (984.25 Ft)Mechanical Data
Degree Of Protection Ip20 / Ul Open Type
Frame Size Fsa
Net Weight 3.2 Kg (7.05 Lb)

Dimensions

Width 73 Mm (2.87 In)
Height 232 Mm (9.13 In)
Depth 218 Mm (8.58 In)

Standards

Compliance With Standards Ul, Cul, Ce, C-Tick (Rcm), Eac, Kcc,
Semi F47, Reach
Ce Marking Emc Directive 2004/108/Ec, Low-
Voltage Directive 2006/95/Ec
Converter Losses To Iec61800-9-2*
Efficiency Class Ie2
Comparison With The Reference
Converter (90% / 100%)31.1 %
The Percentage Values Show The Losses In Relation To The Rated Apparent Power Of
The Converter.
The Diagram Shows The Losses For The Points (As Per Standard Iec61800-9-2) Of
The Relative Torque Generating Current (I) Over The Relative Motor Stator Frequency
(F). The Values Are Valid For The Basic Version Of The Converter Without
Options/Components.
*Calculated Values
1)The Output Current And Hp Ratings Are Valid For The Voltage Range 440V-480V
3)Typical Value. More Information Can Be Found In The Element Group "Converter Losses To Iec 61800-9-2" In This Datasheet.35.3 W (1.6 %)
32.3 W (1.5 %)42.5 W (2.0 %) 47.1 W (2.2 %) 54.8 W (2.6 %)
39.9 W (1.9 %) 37.1 W (1.7 %)
33.1 W (1.5 %)
F 90% 50%25%50%I
100%
Article No. : 6Sl3220-1Ye12-1Up0
Technical Data Are Subject To Change! There May Be Discrepancies Between Calculated And Rating Plate Values. Page 3 Of 3 Generated Mon Dec 23 14:36:06 Cet 2024
I/O Extension Module

Inputs / Outputs

Digital Inputs
Number Of Digital Inputs 1)2
0.5 … 1.5 Mm² (Awg 21 … Awg 16) Conductor Cross-Section
Alternatively 2 X 0.5 Mm²
Input Voltage (0→1) 11 V
Input Voltage (1→0) 5 V
Input Voltage, Max. 30 V
Digital Outputs
Number Of Digital Outputs 4
Conductor Cross-Section 1.5 Mm² (Awg 16)
Output Current 2)2 A

Analog Inputs

Number Of Analog Inputs 3)2
0.5 … 1.5 Mm² (Awg 21 … Awg 16) Conductor Cross-Section
Alternatively 2*0.5 Mm²
Current 0 … 20 Ma
Analog Outputs
Number Of Analog Outputs 2
Type Of Analog Outputs 4)Non-Isolated Output
0.5 … 1.5 Mm² (Awg 21 … Awg 16) Conductor Cross-Section
Alternatively 2 X 0.5 Mm²
Output Voltage 0 … 10 V
Output Current 0 … 20 Mamechanical Data
Dimensions
Width 71 Mm (2.80 In)
Height 117 Mm (4.61 In)
Depth 27 Mm (1.06 In)
1)Di 6: Digital Input; Di 7: P Or M Switch; Di Com: Input For Control Unit Interface (24 V Out, Max.
250 Ma)
2)The Max. Current Depends On The Temperature And The Size Of The Connected Converted. It
Varies Between 2 A And 3 A At 30 V Dc.
3)2 Analog Inputs For The Connection Of Pt1000/Ni1000 Temperature Sensors. One Of Which Can
Be Optionally Used As Analog Input.
4)Switchable Between Voltage (0 ... 10 V) And Current (0 ... 20 Ma) Using A Parameter

Documentation
