6SL3220-3YE62-0CB0

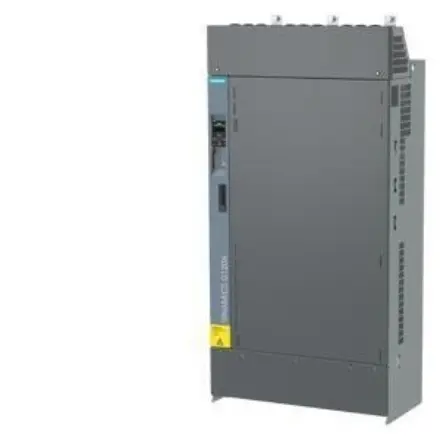

6SL3220-3YE62-0CB0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6SL3220-3YE62-0CB0 Siemens

6SL3220-3YE62-0CB0 Siemens - SINAMICS G120X Rated power: 450 kW at 135% 3 sec or 110% 60 sec, 100% 240 sec; RFI suppression filter For category C3 3AC380-480V+10/-20% 47-63Hz Ambient temperature 0 to +45 °C Size: FSJ Degree of protection IP20 / UL open type With Intelligent Operator Panel Without IO expansion Integrated fieldbus: MODBUS RTU, BACnet MS/TP,USS

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6SL3220-3YE62-0CB0
Product Description SINAMICS G120X Rated power: 450 kW at 135% 3 sec or 110% 60 sec, 100% 240 sec; RFI suppression filter For category C3 3AC380-480V+10/-20% 47-63Hz Ambient temperature 0 to +45 °C Size: FSJ Degree of protection IP20 / UL open type With Intelligent Operator Panel Without IO expansion Integrated fieldbus: MODBUS RTU, BACnet MS/TP,USS
Product family Not available
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : EAR99H
Estimated dispatch time (Working Days) 25 Day/Days
Net Weight (kg) 235,000 Kg
Packaging Dimension 1857,00 x 1200,00 x 800,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4042948690024
UPC 804766939624
Commodity Code 85044086
LKZ_FDB/ CatalogID D31.5
Product Group 4R53
Group Code R220
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 11.03.2020
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | Dodecachloropentacyclo[12... > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™) covering any of its individual anti- and syn-isomers or any combination thereof Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | 1,2-Benzenedicarboxy... CAS-No. 68515-42-4 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): 1,2-Benzenedicarboxylic acid, di-C7-11-branched and linear alkyl esters (DHNUP) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Rated data

Rated current (IN) 840.00 A
Rated power (HO) 355.00 kW 450.00 hp
Number of phases 3 AC Rated voltage 400V IEC 480V NEC 1)
Line voltage 380 ... 480 V +10 % -10 %
Line frequency 47 ... 63 Hz Rated voltage 400V IEC 480V NEC
Rated current (LO) 820.00 A 663.00 A
Rated current (HO) 672.00 A 542.00 A
Rated power (LO) 450.00 kW 500.00 hp
Rated power (HO) 355.00 kW 450.00 hp
Rated current (LO) 820.00 A 663.00 A
Rated current (HO) 672.00 A 542.00 A
Max. output current 1,107.00 A Pulse frequency 4 kHz Output frequency for vector control 0 ... 100 Hz Output frequency for V/f control 0 ... 100 Hz Overload capability Low Overload (LO) 110% base load current IL for 60 s in a 300 s cycle time High Overload (HO) 150% x base load current IH for 60 s within a 300 s cycle time

General tech. specifications

Power factor λ 0.75 ... 0.93
Offset factor cos φ 0.96
Efficiency η 0.98
Sound pressure level (1m) 74 dB
Power loss 3)10.200 kW
Filter class (integrated) RFI suppression filter for Category C3 EMC category (with accessories) Category C3 Safety function "Safe Torque Off"without SIRIUS device (e.g. via S7- 1500F)

Communication

Communication USS, Modbus RTU, BACnet MS/TPInputs / outputs Standard digital inputs Number 6 Switching level: 0 → 1 11 V Switching level: 1 → 0 5 V Max. inrush current 15 mA

Fail-safe digital inputs

Number 1 (Non-isolated output) PTC/ KTY interface 1 motor temperature sensor input, sensors that can be connected PTC, KTY and Thermo-Click, accuracy ±5 °C Closed-loop control techniques V/f linear / square-law / parameterizable Yes V/f with flux current control (FCC) Yes V/f ECO linear / square-law Yes Sensorless vector control Yes Vector control, with sensor No Encoderless torque control No Torque control, with encoder No Data sheet for SINAMICS G120X Article No. : 6SL3220-3YE62-0CB0 Technical data are subject to change! There may be discrepancies between calculated and rating plate values. Page 2 of 3 Generated Mon Dec 23 21:57:39 CET 2024 Ambient conditions Standard board coating typeClass 3C2, according to IEC 60721-3-3: 2002 Cooling Air cooling using an integrated fan Cooling air requirement 0.450 m³/s (15.892 ft³/s) Installation altitude 1,000 m (3,280.84 ft) Ambient temperature Operation 0 ... 45 °C (32 ... 113 °F) Transport -40 ... 70 °C (-40 ... 158 °F) Storage -25 ... 55 °C (-13 ... 131 °F) Relative humidity Max. operation95 % At 40 °C (104 °F), condensation and icing not permissible

Line side

Version M12 screw
Conductor cross-section 6 x 240.00 mm² (MCM 4 x 500 ... MCM 6 x 500)

Motor end

Version M12 screw
Conductor cross-section 6 x 240.00 mm² (MCM 4 x 500 ... MCM 8 x 500) DC link (for braking resistor) PE connection M12 screw

Max. motor cable length

Shielded 150 m (492.13 ft)

Mechanical data

Net weight 236 kg (520.29 lb)

Dimensions

Width 801 mm (31.54 in)
Height 1,621 mm (63.82 in)
Depth 393 mm (15.47 in)

Standards

Compliance with standards UL, cUL, CE, C-Tick (RCM), EAC, KCC, SEMI F47, REACH
CE marking EMC Directive 2004/108/EC, Low- Voltage Directive 2006/95/EC Converter losses to IEC61800-9-2* Efficiency class IE2 Comparison with the reference converter (90% / 100%)43.1 % The percentage values show the losses in relation to the rated apparent power of the converter. The diagram shows the losses for the points (as per standard IEC61800-9-2) of the relative torque generating current (I) over the relative motor stator frequency (f). The values are valid for the basic version of the converter without options/components. *calculated values 1)The output current and HP ratings are valid for the voltage range 440V-480V 3)Typical value. More information can be found in the element group "Converter losses to IEC 61800-9-2" in this datasheet.3,610.0 W (0.6 %) 2,370.0 W (0.4 %)7,680.0 W (1.3 %) 8,800.0 W (1.5 %) 10,200.0 W (1.8 %) 4,630.0 W (0.8 %) 4,080.0 W (0.7 %) 2,590.0 W (0.4 %) f 90% 50%25%50%I 100% Data sheet for SINAMICS G120X Article No. : 6SL3220-3YE62-0CB0 Technical data are subject to change! There may be discrepancies between calculated and rating plate values. Page 3 of 3 Generated Mon Dec 23 21:57:39 CET 2024 Operator panel: Intelligent Operator Panel (IOP-2) Screen Display design LCD color Screen resolution 320 x 240 Pixel Mechanical data Degree of protection IP55 / UL type 12 Net weight 0.134 kg (0.30 lb) Dimensions Width 70.00 mm (2.76 in) Height 106.85 mm (4.21 in) Depth 19.65 mm (0.77 in)Ambient conditions Ambient temperature 0 ... 50 °C (32 ... 122 °F) Operation 55 °C only with door installation kit Storage -40 ... 70 °C (-40 ... 158 °F) Transport -40 ... 70 °C (-40 ... 158 °F) Relative humidity at 25°C during Max. operation 95 % Approvals Certificate of suitability CE, cULus, EAC, KCC, RCM Data sheet for Line reactor Article No. : 6SL3000-0CE38-7AA0 Technical data are subject to change! There may be discrepancies between calculated and rating plate values. Page 1 of 1 Generated Mon Dec 23 21:57:42 CET 2024 Figure similar Client order no. : Order no. : Offer no. : Remarks : Item no. : Consignment no. : Project : Rated data Input Number of phases 3 AC Line voltage 380 … 480 V Output Rated current 871.0 A Mechanical data Dimensions Width 350.0 mm (13.8 in) Height 321.0 mm (12.6 in) Depth 211.5 mm (8.3 in) Degree of protection IP00 Net weight 63.2 kg (139.0 lb)Connections Load side Version 1 x hole for M12 PE connection Version M6 screw
